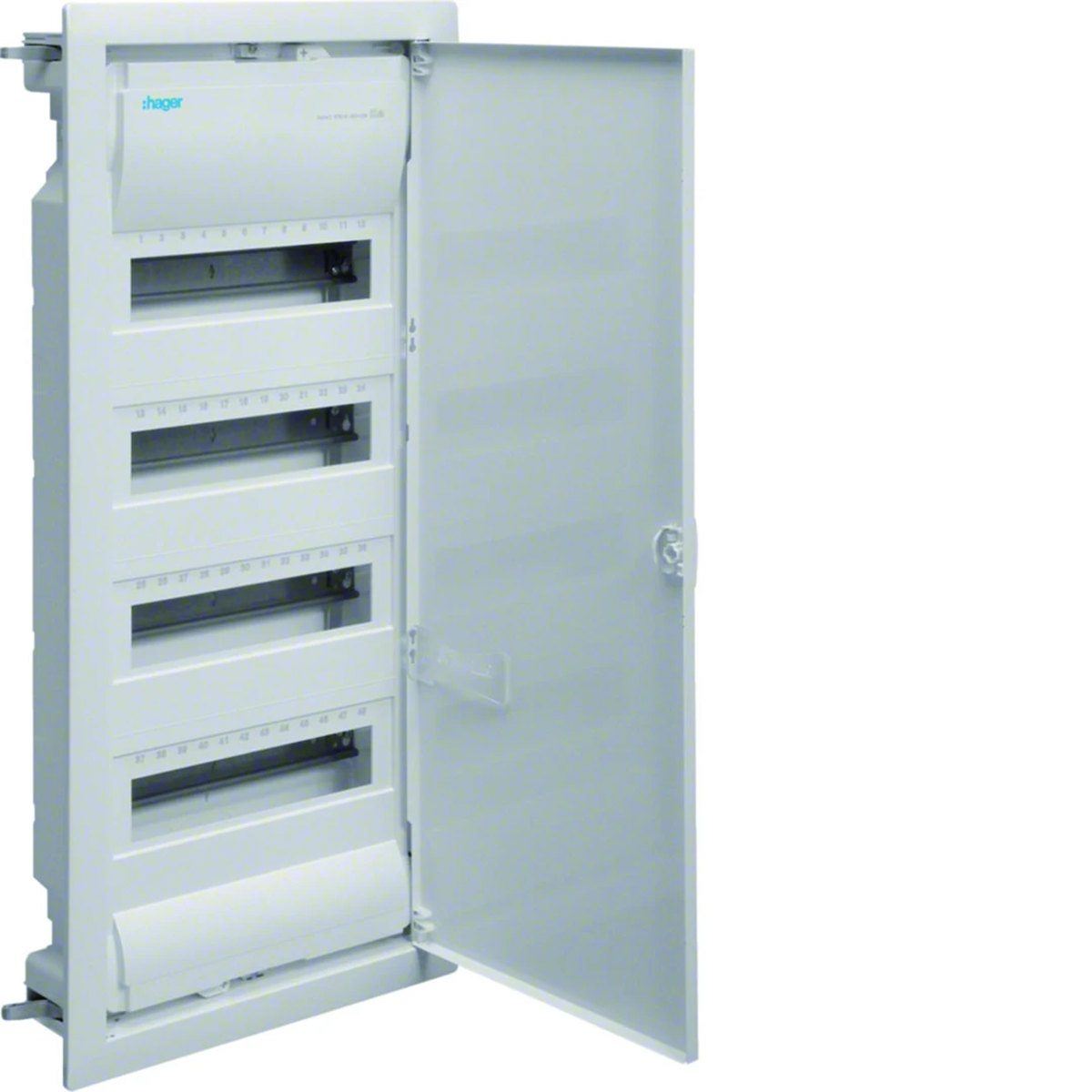

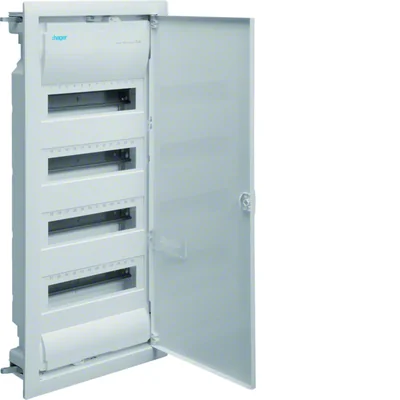

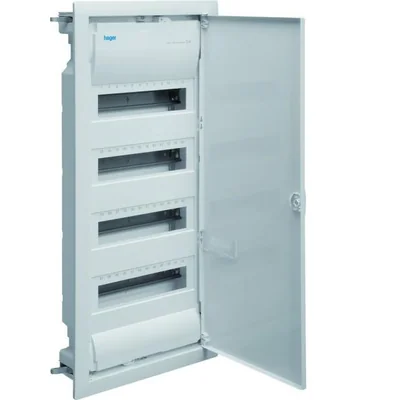

Volta switchgear IP30 for plasterboard walls. 4-row 48 modules VH48NE

Distribution box for plasterboard walls, 1-row for devices up to 63 A
• maximum installation depth 70 mm
• anchors for plasterboard walls
• the camera mask is fastened with screws with the quick-assembly technique, suitable for sealing
• adjustable frame masks up to 15 mm unevenness of the plaster
• built-in spirit level
• impact resistance IK07
• tool-free door hinges; right or left door, installed without the need to dismantle the frame
• PE/N screw terminals in a touch-proof cassette, mounted by snapping on the top or bottom of the cabinet
• as an assortment terminals for wiring RCDs for 1, 2, 3, and 4-row switchboards
• side spaces for cable routingów
• steel door with flush handle
• sealable covers
• color: white, RAL 9010
• standards: DIN 43871, PN-EN 60439-3
• suitable for use in residential buildings according to DIN 18015
• possibility of installing a standard switchgear up to a depth of 72 mm using a raised masking frame
• flammability test 850°C with glow wire method according to EN 60 695-2-1
• installation depth in the wall 88 mm
• II insulation class, IP30
• 4 fixing elements included
