VOLTA Recess box 5R/60M VU60NK

local index:
RIP084HAGE
Catalog No:
VU60NK
EAN code:
3250616615717
Manufacturer: HAGER
Depth [mm]: 94.5
Number of rows: 5
Protection class: II
Price:
20,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

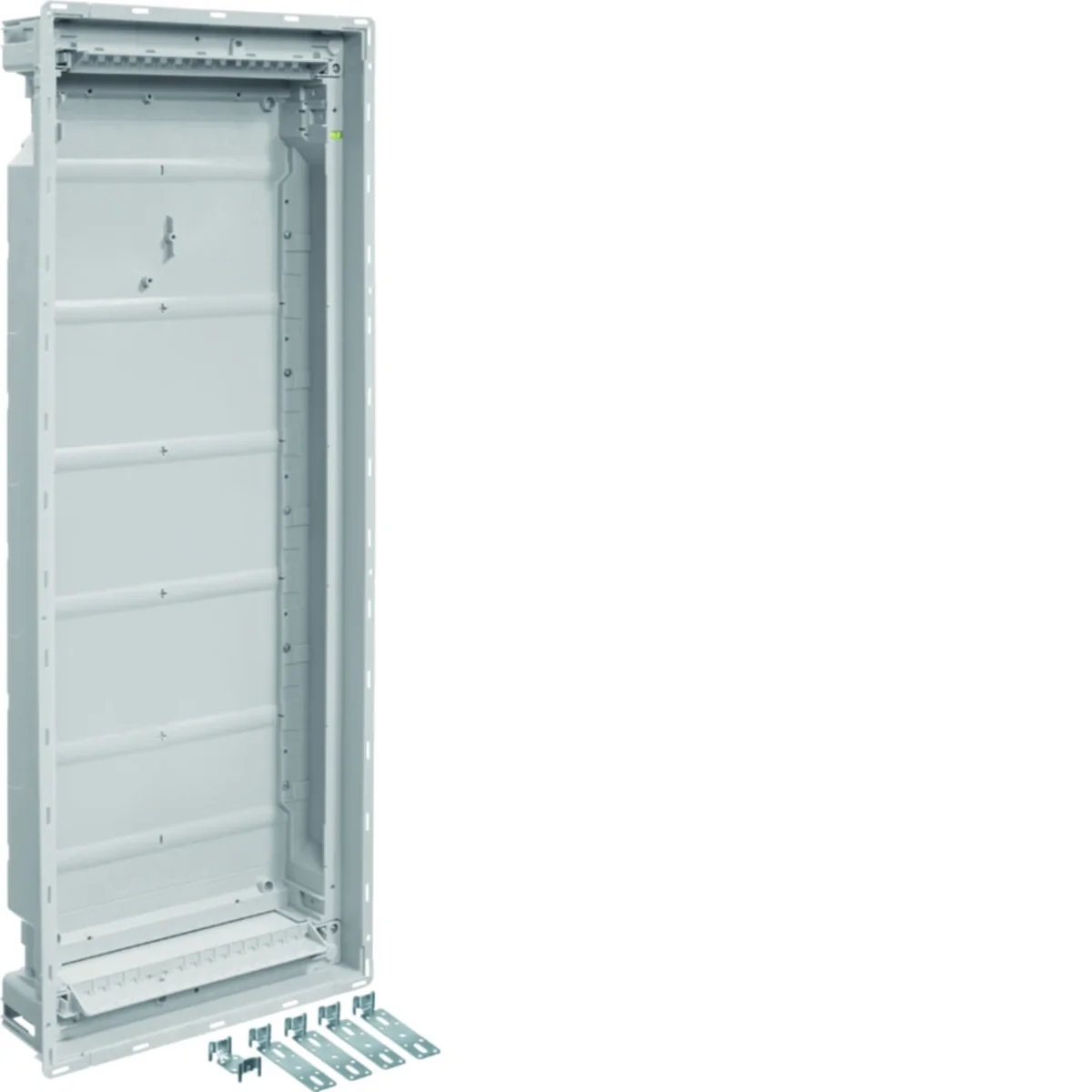

Recess flush-mounted box, 5 rows/60 modules, volta series.

Technical data

  • Depth [mm]
    94.5
  • Protection class
    II
  • Material
    Plastic
  • Family
    VOLTA
  • Height [mm]
    880
  • Number of rows for cameras
    5
  • Number of rows
    5
  • Color
    White
  • Housing material
    Plastic
  • Width [mm]
    348
  • Glow wire test [°C]
    650
  • PKWIU
    27.12.40.0

Other technical data

  • Mounting method
    Flush-mounted
  • Width in number of modular spacings
    12
  • Housing material
    Plastic
  • Width
    348 mm
  • Built-in depth
    90 mm
  • With mounting plate
    No
  • EMC-version
    Yes
  • RAL-number
    7035
  • Number of rows
    5
  • Cover model
    Closed
  • Height
    880 mm
  • Depth
    94.5 mm
  • Inner depth
    91.5 mm
  • Extension possible
    Yes
  • Colour
    Grey

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 31 pcs.
Weight (kg) 1,722 1,780 78,320
Width (m) 0,330 0,360 0,800
Length (m) 0,859 0,105 1,170
Depth (m) 0,089 0,890 1,200
