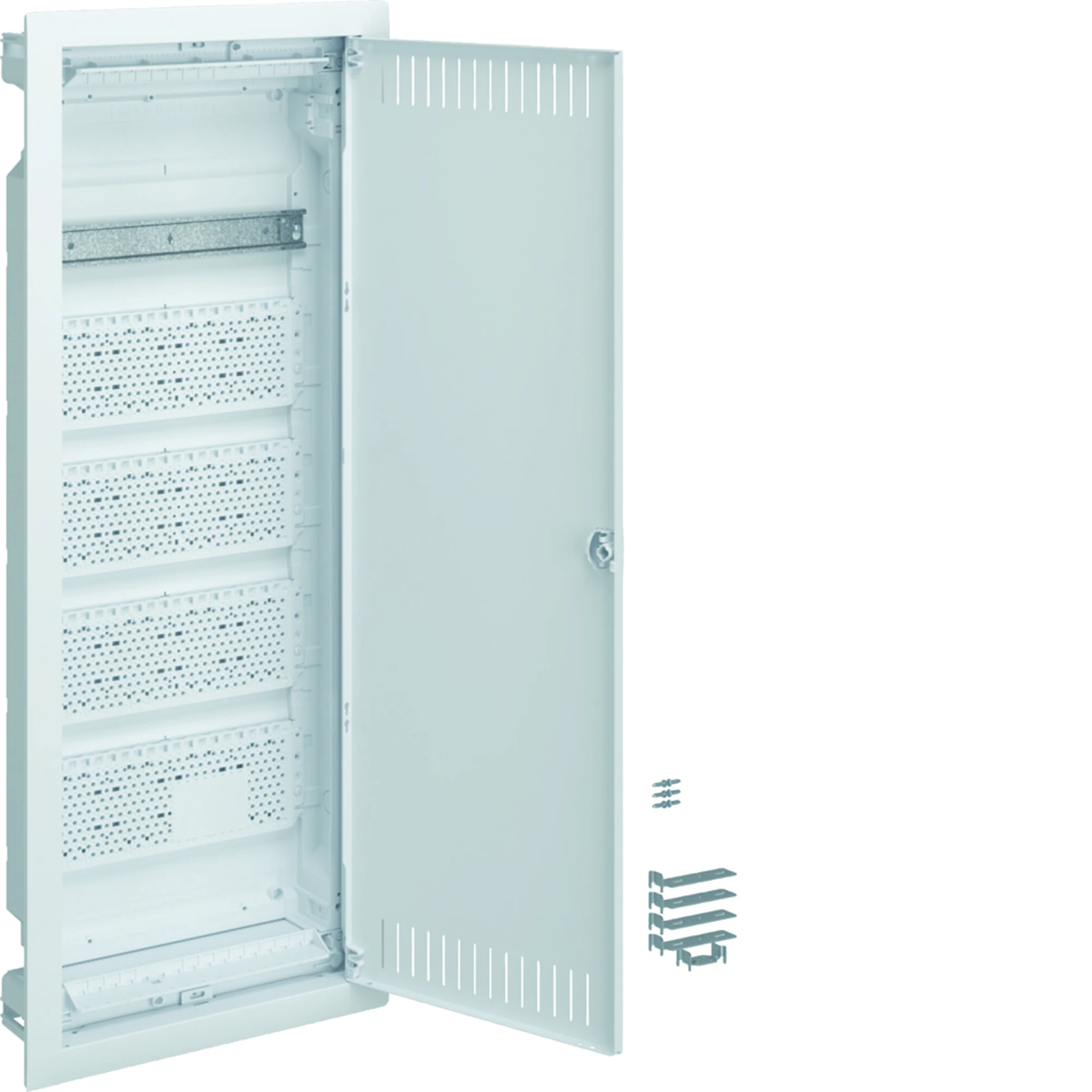

volta 5R flush-mounted VDI switchgear 4x mounting plate, 1x TH rail VU60NWB

local index:
RIP043HAGE
Catalog No:
VU60NWB
EAN code:
3250616615786
Manufacturer: HAGER
Depth [mm]: 94.5
Number of doors: 1
Number of rows: 1
Price:
145,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

volta 5R flush-mounted VDI switchgear 4x mounting plate, 1x TH rail

Technical data

  • Depth [mm]
    94.5
  • Number of rows
    1
  • Color
    White
  • Housing material
    Material
  • Width [mm]
    348
  • Glow wire test [°C]
    650
  • PKWIU
    27.12.40.0
  • Number of doors
    1
  • Protection class
    II
  • Material
    Miscellaneous materials
  • Installation
    Flush-mounted
  • Height [mm]
    880.5
  • Lock type
    Latch

Other technical data

  • Mounting method
    Flush-mounted
  • Width in number of modular spacings
    12
  • Cover model
    With notch
  • Housing material
    Other
  • Width
    348 mm
  • Built-in depth
    90 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • With lock
    No
  • Number of rows
    5
  • Type of covering
    Door
  • Transparent cover/door
    No
  • Height
    880.5 mm
  • Depth
    94.5 mm
  • Inner depth
    91.5 mm
  • With mounting plate
    Yes
  • Colour
    White
  • Degree of protection (IP)
    IP30
  • Type of closure
    Other

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 29 pcs.
Weight (kg) 4,925 5,015 174,935
Width (m) 0,348 0,355 0,800
Length (m) 0,880 0,100 1,175
Depth (m) 0,094 0,885 1,200
