Vertical comb rail 4P for RCCB 3-row left KCF668L

local index:
RPU011HAGE
Catalog No:
KCF668L
EAN code:
3250613730239
Manufacturer: HAGER
Number of poles: 4
Rated current [A]: 63
Price:
41,41 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

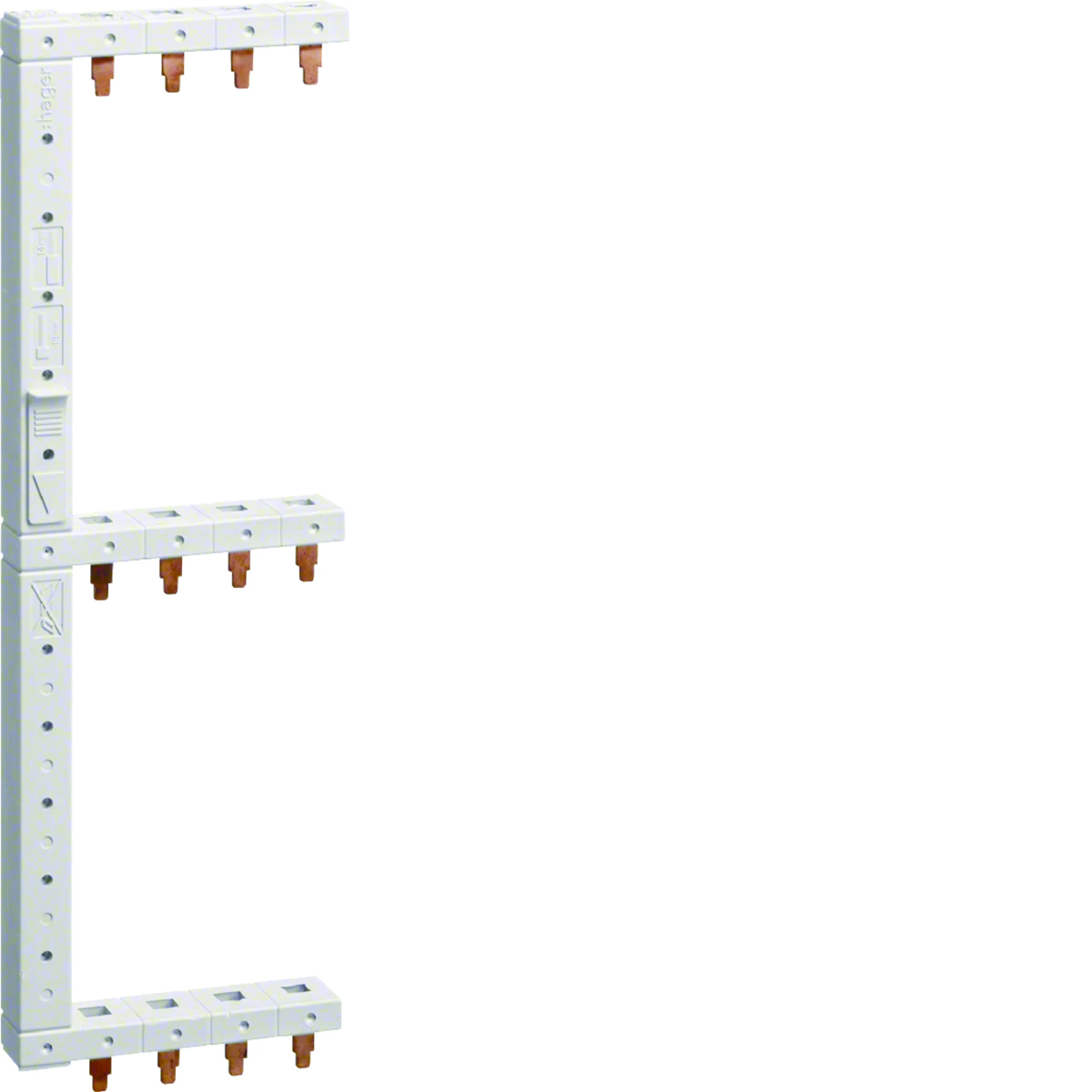

Vertical comb rail 4P for RCCB 3-row left

Technical data

  • Number of poles
    4
  • PKWIU
    27.33.13.0
  • Rated current [A]
    63

Other technical data

  • Number of phases
    3
  • Module width
    17.8 mm
  • Length
    271 mm
  • Type of electric connection
    Pin
  • Rated surge voltage
    4 kV
  • Suitable for devices with N-conductor
    Yes
  • Number of poles
    4
  • Cross section
    10 mm²
  • Rated permanent current Iu
    63 A
  • Insulated
    Yes
  • Max. rated operation voltage Ue
    415 V
  • Suitable for devices with auxiliary switch
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 4 pcs. 24 pcs. 576 pcs.
Weight (kg) 0,122 1,152 7,300 198,200
Width (m) 0,051 0,098 0,315 0,800
Length (m) 0,039 0,082 0,210 0,990
Depth (m) 0,271 0,320 0,362 1,200
