VEGA Surface-mounted switchgear 3x18M IP40 with transparent door VB318TB

local index:
RIN055HAGE
Catalog No:
VB318TB
EAN code:
3250611019237
Manufacturer: HAGER
Depth [mm]: 146
Thickness [mm]: 2.5
Number of doors: 1
Price:
136,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 15 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

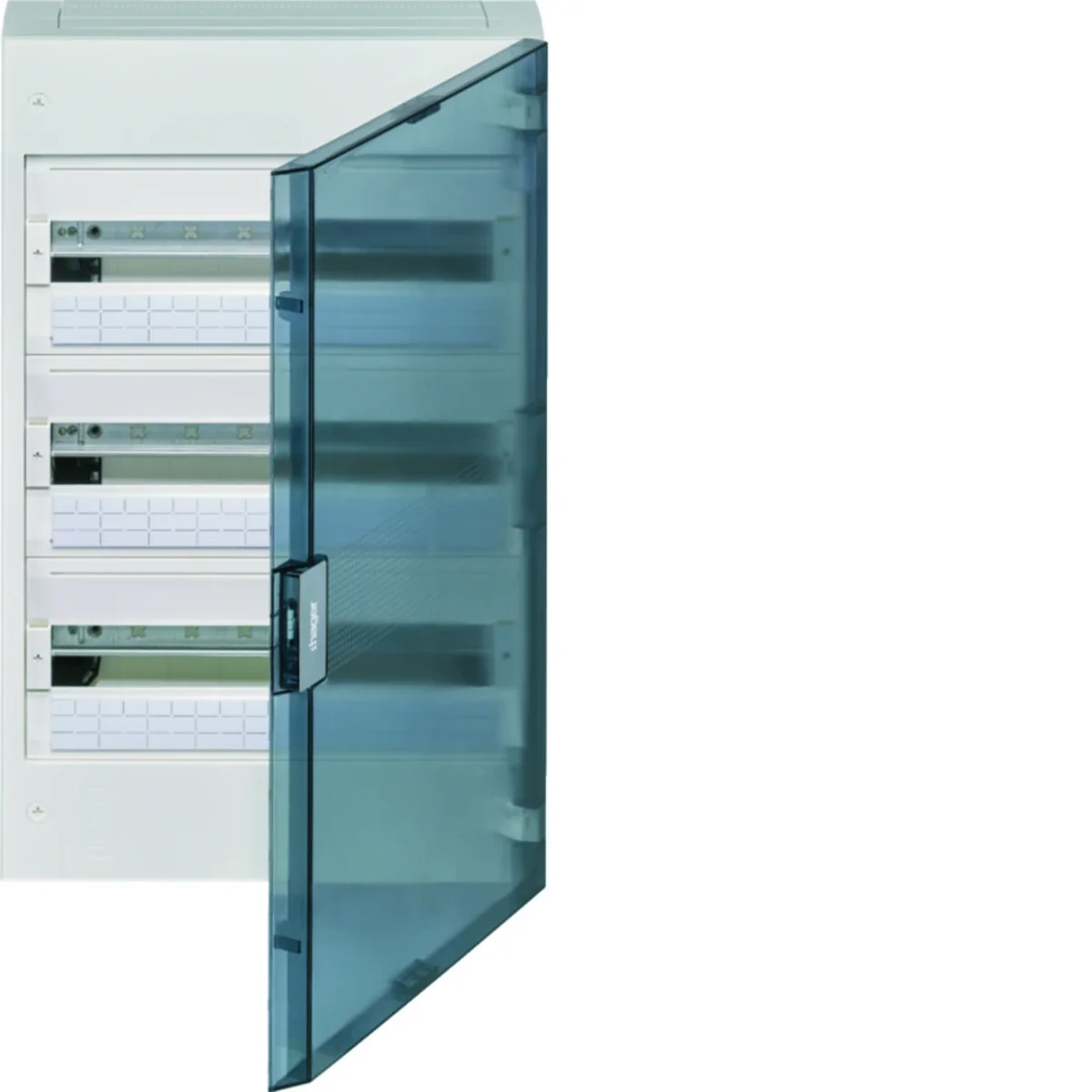

Surface mounted switchgear, 3 rows/18 modules, transparent door, vega series.

Technical data

  • Depth [mm]
    146
  • Number of doors
    1
  • Number of rows
    3
  • Protection class
    II
  • Material
    PC ABS
  • Installation
    Surface-mounted
  • Level of security
    IP40
  • Height [mm]
    625
  • Number of rows for cameras
    3
  • PKWIU
    27.12.40.0
  • Thickness [mm]
    2.5
  • Number of modules
    54
  • Number of locks
    1
  • Color
    White
  • Housing material
    Polystyrene
  • Family
    VEGA
  • Width [mm]
    400
  • Glow wire test [°C]
    650
  • Lock type
    Latch

Other technical data

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    18
  • Cover model
    Closed
  • Housing material
    Plastic
  • Width
    400 mm
  • Inner depth
    120 mm
  • With mounting plate
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Type of closure
    Other
  • Number of rows
    3
  • Type of covering
    Door
  • Transparent cover/door
    Yes
  • Height
    625 mm
  • Depth
    146 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • With lock
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 19 pcs.
Weight (kg) 4,152 4,600 112,400
Width (m) 0,400 0,420 0,810
Length (m) 0,145 0,155 1,090
Depth (m) 0,625 0,640 1,200
