VEGA Surface-mounted distribution board 4x18M IP40 with white door VB418PB

Name: VEGA Surface-mounted distribution board 4x18M IP40 with white door
Brand: HAGER
SKU: RIN016HAGE
Price: 161.41 PLN
Availability: InStock

local index:

RIN016HAGE

Catalog No:

VB418PB

EAN code:

3250611019299

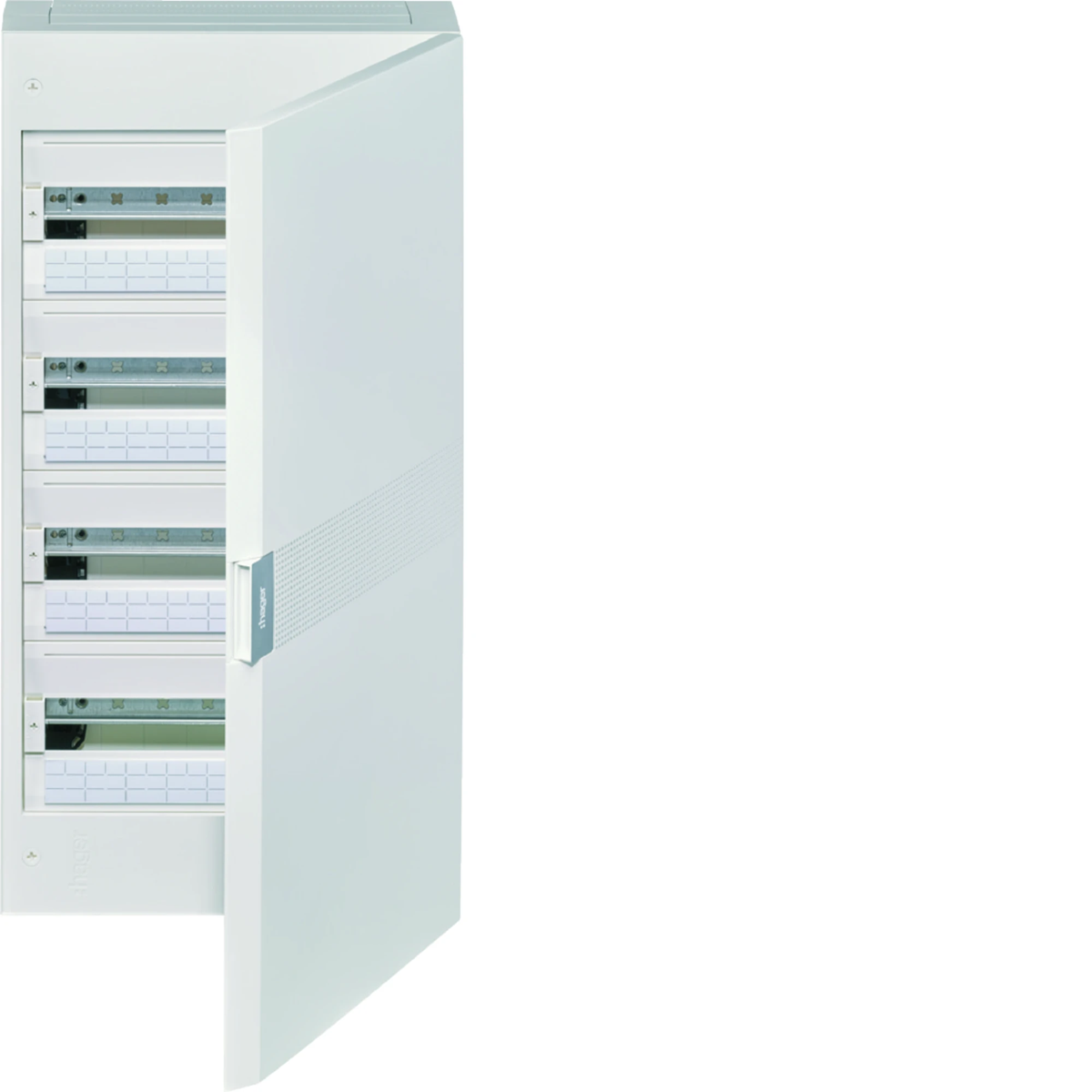

VEGA Surface-mounted distribution board 4x18M IP40 with white door

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 146

Thickness [mm]: 2.5

Number of doors: 1

See full description

Price:

161,41 €

gross / pcs.

(including VAT 23%)

Accessible 14 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Surface-mounted switchgear vega series:

4 rows/18 modules
white door
IP40

Technical data

Depth [mm]

146
Number of doors

1
Number of locks

1
Color

White
Housing material

Polystyrene
Family

VEGA
Width [mm]

400
Number of modules

72
Number of rows for cameras

4
PKWIU

27.12.40.0

Thickness [mm]

2.5
Number of rows

4
Protection class

II
Material

PC ABS
Installation

Surface-mounted
Level of security

IP40
Height [mm]

775
Glow wire test [°C]

650
Lock type

Latch

Other technical data

Mounting method

Surface mounted
Width in number of modular spacings

18
Cover model

Closed
Housing material

Plastic
Width

400 mm
Inner depth

120 mm
With mounting plate

No
Colour

White
Degree of protection (IP)

IP40
Type of closure

Other

Number of rows

4
Type of covering

Door
Transparent cover/door

No
Height

775 mm
Depth

146 mm
DIN-rail

Yes
Extension possible

Yes
RAL-number

9010
With lock

No

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	16 pcs.
Weight (kg)	5,223	5,760	117,160
Width (m)	0,400	0,420	0,800
Length (m)	0,145	0,155	1,080
Depth (m)	0,775	0,790	1,200
