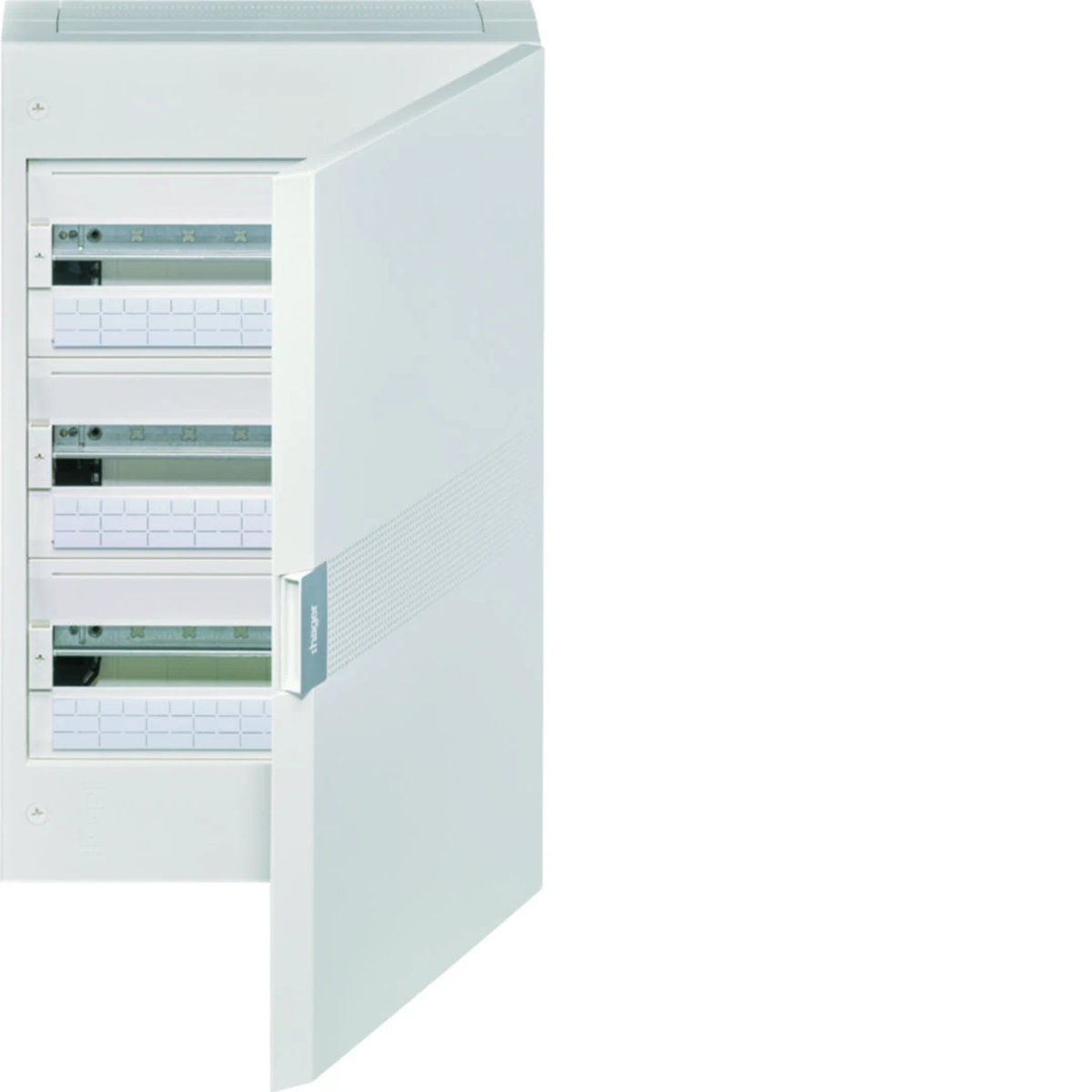

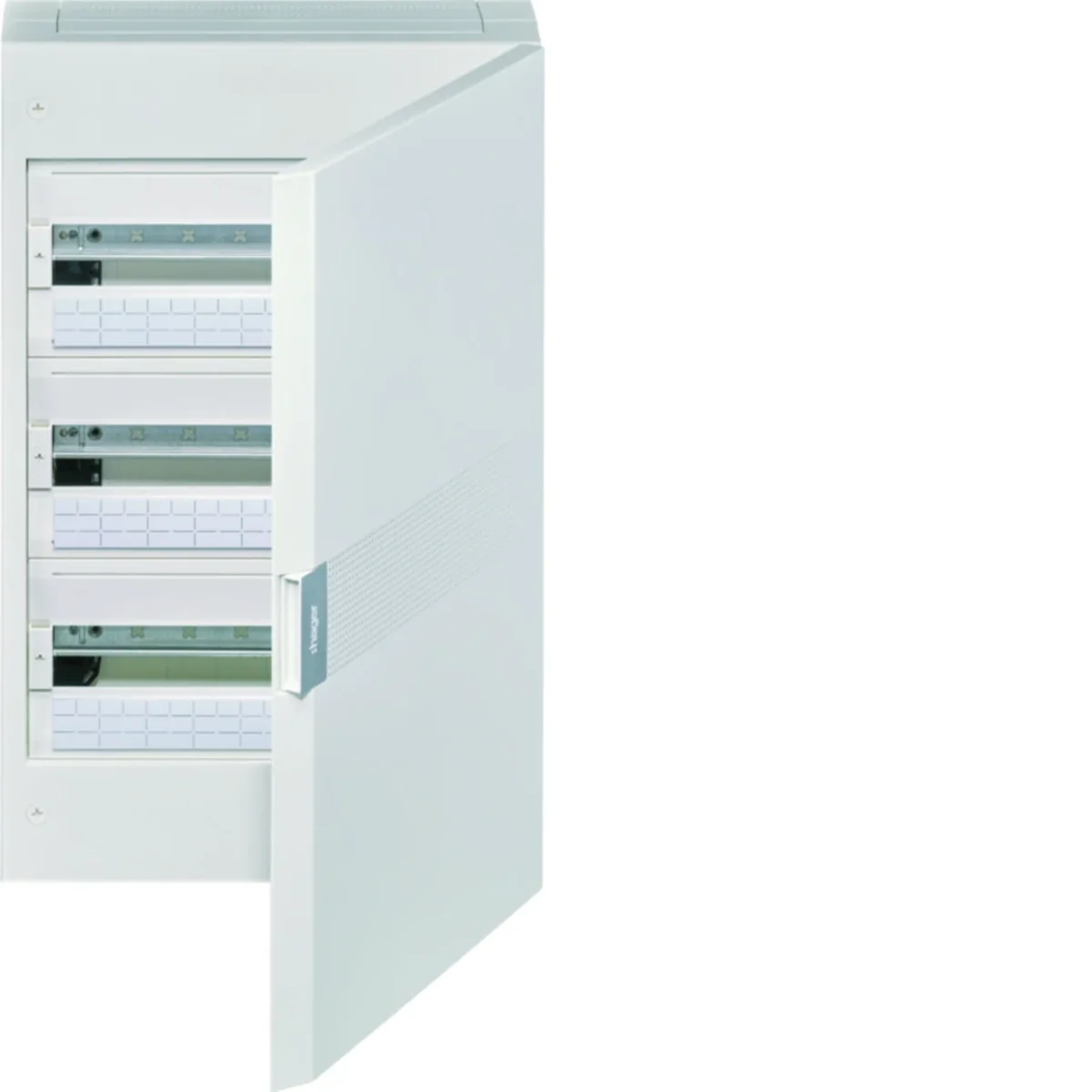

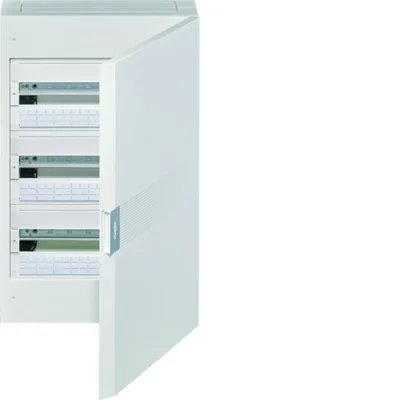

VEGA Surface-mounted distribution board 3x18M IP40 with white door VB318PB
local index:
RIN014HAGE
Catalog No:
VB318PB
EAN code:
3250611019220
Price:
130,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Surface-mounted switchgear vega series:
- 3 rows/18 modules
- white door
- IP40
Technical data
-
Depth [mm]146
-
Number of doors1
-
Number of locks1
-
ColorWhite
-
Housing materialPolystyrene
-
FamilyVEGA
-
Width [mm]400
-
Number of modules54
-
Number of rows for cameras3
-
PKWIU27.12.40.0
-
Thickness [mm]2.5
-
Number of rows3
-
Protection classII
-
MaterialPC ABS
-
InstallationSurface-mounted
-
Level of securityIP40
-
Height [mm]625
-
Glow wire test [°C]650
-
Lock typeLatch
Other technical data
-
Mounting methodSurface mounted
-
Width in number of modular spacings18
-
Cover modelClosed
-
Housing materialPlastic
-
Width400 mm
-
Inner depth120 mm
-
With mounting plateNo
-
ColourWhite
-
Degree of protection (IP)IP40
-
Type of closureOther
-
Number of rows3
-
Type of coveringDoor
-
Transparent cover/doorNo
-
Height625 mm
-
Depth146 mm
-
DIN-railYes
-
Extension possibleYes
-
RAL-number9010
-
With lockNo
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 19 pcs. |
| Weight (kg) | 4,152 | 4,540 | 111,300 |
| Width (m) | 0,400 | 0,420 | 0,800 |
| Length (m) | 0,145 | 0,160 | 1,070 |
| Depth (m) | 0,625 | 0,640 | 1,200 |
