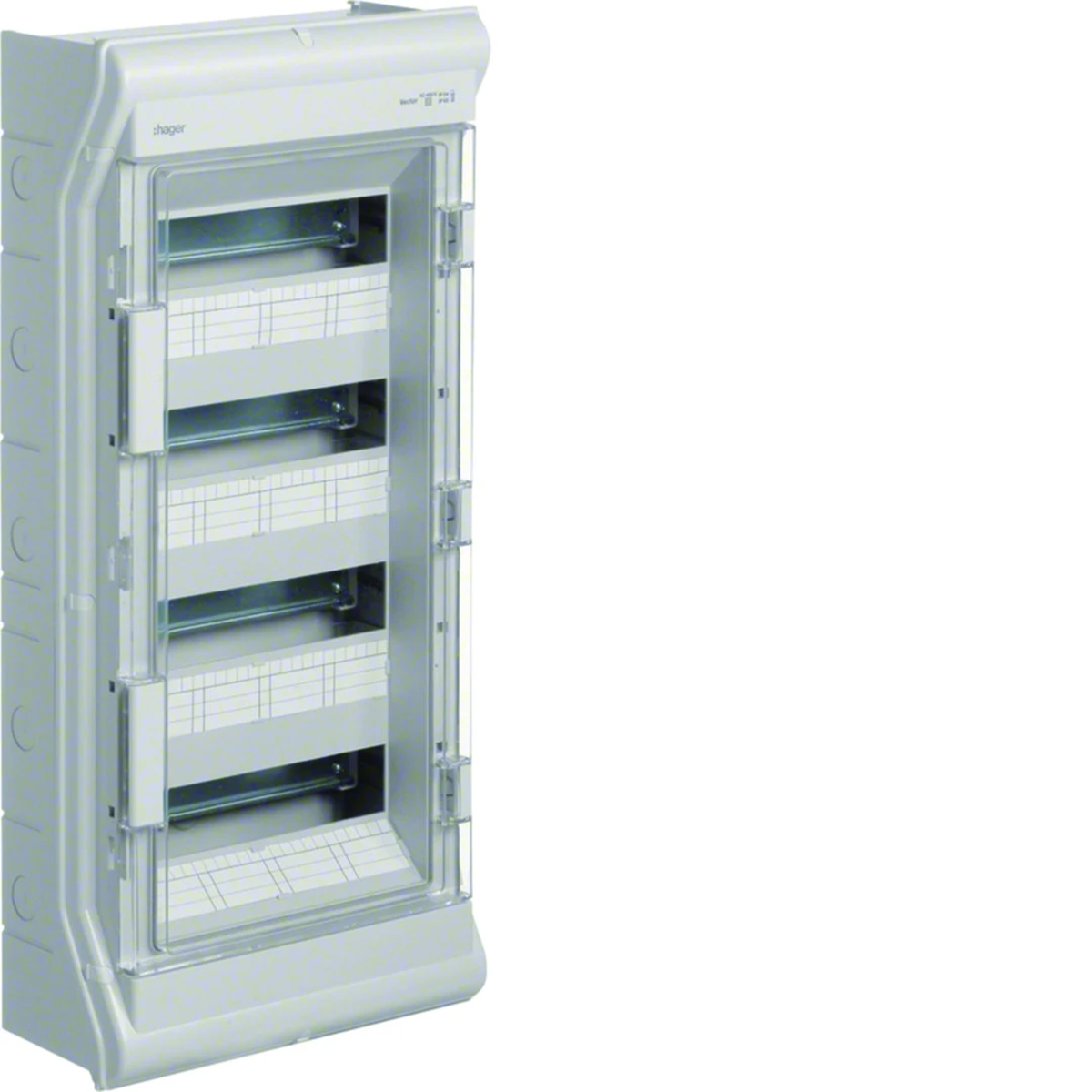

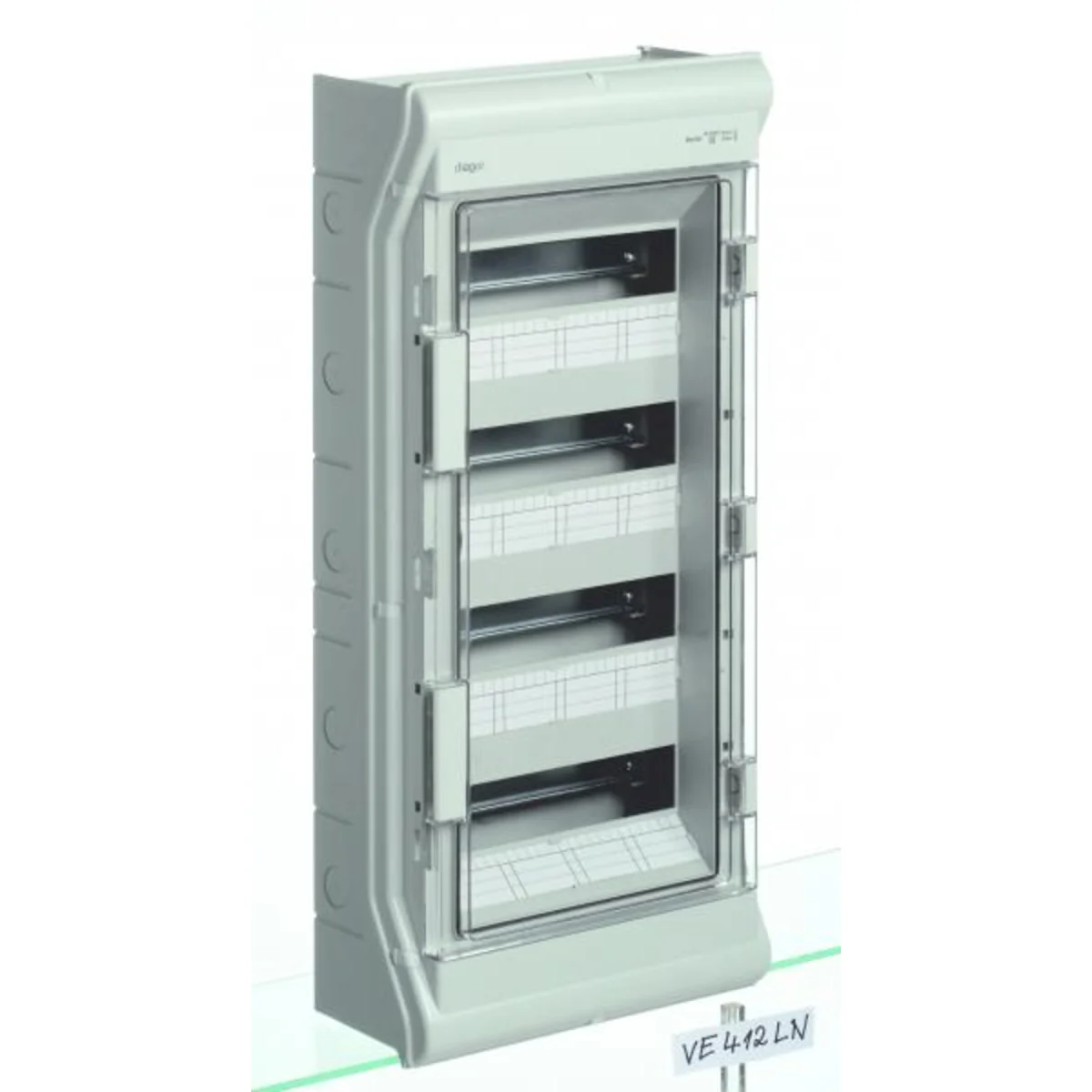

Surface-mounted switchboards
• for apparatus up to 63 A
• version with mounting rail
TS35, 1-4 rows, for 3 to 54 modules for devices with a depth of installation:
- maximum 70 mm (switchgear from 3 to 10 modules)
- maximum 92.5 mm (switchboards from 12 to 54 modules)
• universal cable entry plate and cable outlet cover with the possibility of using tehalit LF60090 and LF60110 cable glands
• flammability test 850°C with glow wire method according to EN 60695-2
• possibility of heating with the FL252Z heater
• II insulation class, IP65, IK07
• UL94V-2
• side knockouts for cable glands or gland plates for side-by-side assembly
• color RAL 7035 (light grey)
• standards: DIN VDE 0603 part 1, EN 60439-3
• sealable

Depth [mm]

151
Number of rows

4
Width [mm]

310
Number of modules

48

Number of modules

48
Level of security

IP65
Height [mm]

677
PKWIU

27.12.40.0

Other technical data

Mounting method

Surface mounted
Width in number of modular spacings

48
Cover model

Closed
Housing material

Plastic
Width

310 mm
Inner depth

151 mm
With mounting plate

No
Colour

Grey
Degree of protection (IP)

IP65
Type of closure

Other

Number of rows

4
Type of covering

Door
Transparent cover/door

Yes
Height

677 mm
Depth

151 mm
DIN-rail

Yes
Extension possible

Yes
RAL-number

7035
With lock

No

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	24 pcs.
Weight (kg)	3,610	3,933	119,392
Width (m)	0,310	0,336	0,800
Length (m)	0,677	0,168	1,530
Depth (m)	0,151	0,690	1,200
