VECTOR OUTDOOR Switchgear IP65, UV-resistant, without ribs, 1R/10M (1x10) VE110SN

Name: VECTOR OUTDOOR Switchgear IP65, UV-resistant, without ribs, 1R/10M (1x10)
Brand: HAGER
SKU: RIN026HAGE
Price: 39.42 PLN

Indice locale:

RIN026HAGE

Numero di catalogo:

VE110SN

Codice EAN:

3250616450431

VECTOR OUTDOOR Switchgear IP65, UV-resistant, without ribs, 1R/10M (1x10)

Clicca sulla foto per ingrandire

Produttore: HAGER

Depth [mm]: 114

Number of doors: 1

Number of rows: 1

Vedi la descrizione completa

Prezzo:

39,42 €

gross / pezzi

(inclusa IVA 23%)

Consegna in 3 ore

fino a 4 settimane (giorni lavorativi)

Raccolta in 1h

Quantità pezzi

(multiplo:

)

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Imballaggio sfuso

Descrizione del prodotto

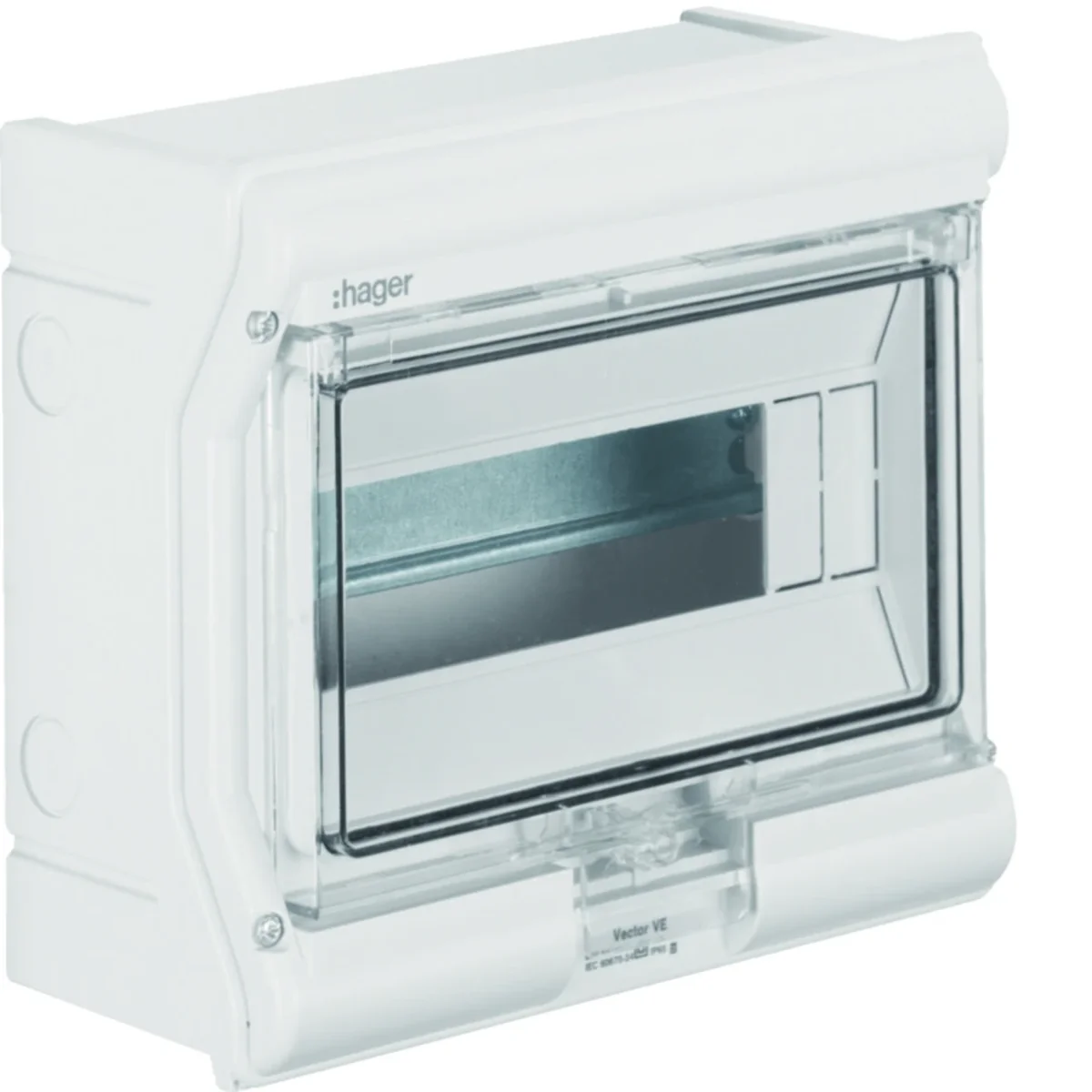

Surface-mounted switchgear 1-row, without knockouts 1R/10M (1x10), vector outdoor series.

Series characteristics:

Vector outdoor switchgears are made of plastic resistant to long-term exposure to UV radiation, intended for outdoor installation, resistant to weather conditions. Switchgears of this type can be used, among others, in photovoltaic systems; using dedicated mounting plates, it is possible to mount selected switchgears on pole structures.

for apparatus up to 63A
version with TS35 mounting rail
possibility of mounting on poles and masts with dedicated holders (for VE106PN/SN and VE110PN/SN)
flammability test 850°C with the glow-wire method according to EN 60695-2
II insulation class, IP65 , IK08
light gray

Dati tecnici

Depth [mm]

114
Number of rows

1
Color

Gray
Housing material

Polycarbonate
Family

VECTOR OUTDOOR
Height [mm]

210
Accurate color

light gray
Number of sections

1
Lock type

Latch

Number of doors

1
Protection class

II
Material

Plastic
Installation

Surface-mounted
Width [mm]

237
Number of modules

10
Glow wire test [°C]

850
Number of rows for cameras

1
PKWIU

27.12.40.0

Altri dati tecnici

Mounting method

Surface mounted
Width in number of modular spacings

10
Cover model

Closed
Housing material

Plastic
Width

237 mm
Inner depth

114 mm
With mounting plate

No
Colour

Grey
Degree of protection (IP)

IP65
Type of closure

Other

Number of rows

1
Type of covering

Door
Transparent cover/door

Yes
Height

210 mm
Depth

114 mm
DIN-rail

Yes
Extension possible

Yes
RAL-number

7035
With lock

No

Imballaggio sfuso

Una specie di pacchetto		Karton	Paleta
Quantità	1 pezzi	1 pezzi	120 pezzi
Peso (kg)	0,940	0,950	139,600
Larghezza (m)	0,230	0,230	0,800
Lunghezza (m)	0,120	0,120	1,150
Profondità (m)	0,245	0,245	1,200
