VECTOR OUTDOOR Switchgear IP65 UV-resistant without ribbing 2R/36M (2x18) VE218SN

Name: VECTOR OUTDOOR Switchgear IP65 UV-resistant without ribbing 2R/36M (2x18)
Brand: HAGER
SKU: RIN032HAGE
Price: 568.95 PLN
Availability: BackOrder

Índice local:

RIN032HAGE

Número de catálogo:

VE218SN

Código EAN:

3250616450493

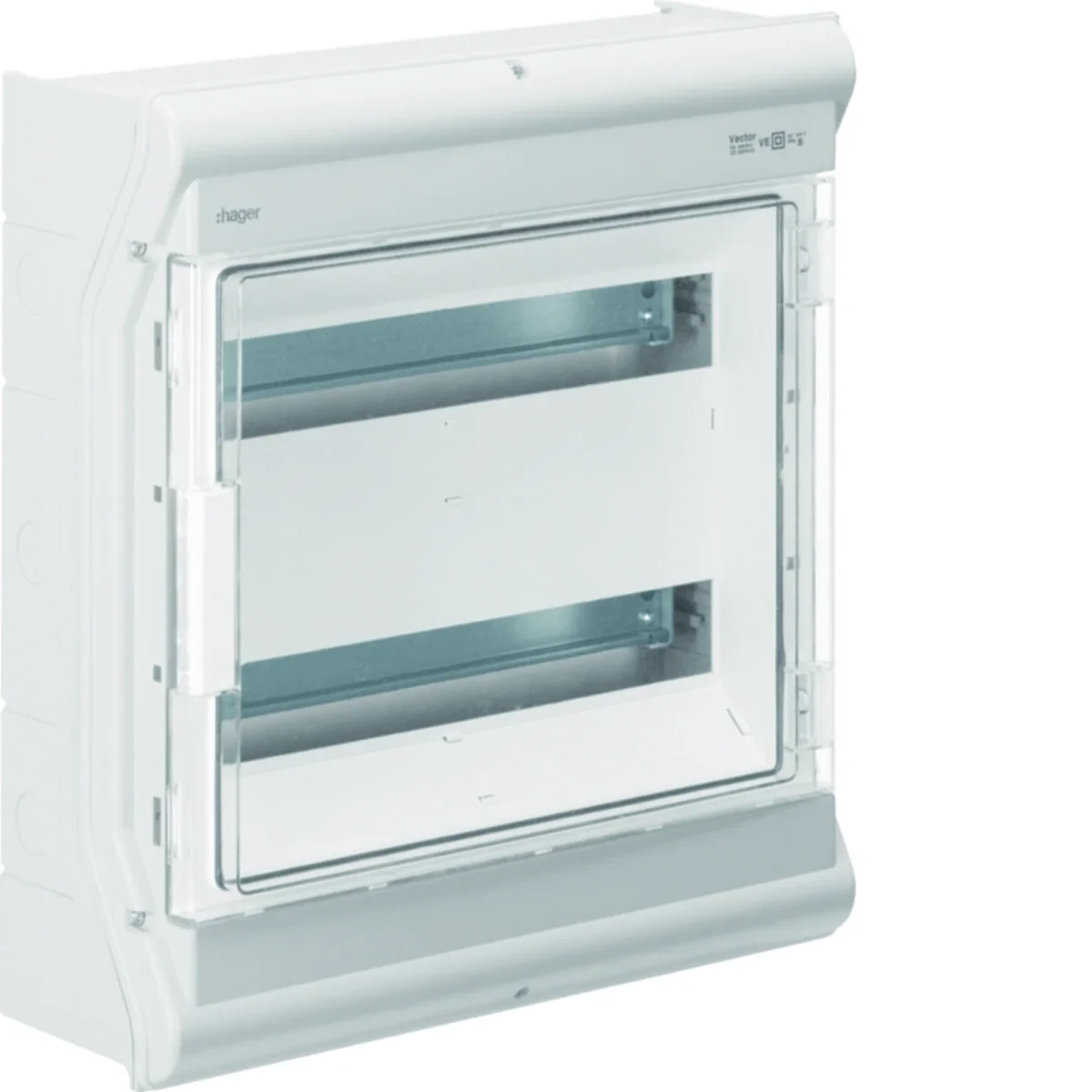

VECTOR OUTDOOR Switchgear IP65 UV-resistant without ribbing 2R/36M (2x18)

Haga clic en la foto para ampliar

Fabricante: HAGER

Depth [mm]: 151

Number of doors: 1

Number of rows: 2

Ver descripción completa

Precio:

568,95 zł

gross / uds.

(IVA incluido 23%)

hasta 10 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

Surface-mounted switchgear 2-row, without knockouts 2R/36M (2x18), vector outdoor series.

Series characteristics:

Vector outdoor switchgears are made of plastic resistant to long-term exposure to UV radiation, intended for outdoor installation, resistant to weather conditions. Switchgears of this type can be used, among others, in photovoltaic systems; using dedicated mounting plates, it is possible to mount selected switchgears on pole structures.

for apparatus up to 63A
version with TS35 mounting rail
possibility of mounting on poles and masts with dedicated holders (for VE106PN/SN and VE110PN/SN)
flammability test 850°C with the glow-wire method according to EN 60695-2
II insulation class, IP65 , IK08
light gray

Datos técnicos

Depth [mm]

151
Number of rows

2
Color

Gray
Housing material

Polycarbonate
Family

VECTOR OUTDOOR
Height [mm]

452
Accurate color

light gray
Number of sections

1
Lock type

Latch

Number of doors

1
Protection class

II
Material

Plastic
Installation

Surface-mounted
Width [mm]

418
Number of modules

36
Glow wire test [°C]

850
Number of rows for cameras

2
PKWIU

27.12.40.0

Otros datos técnicos

Mounting method

Surface mounted
Width in number of modular spacings

18
Cover model

With notch
Transparent cover/door

Yes
With lock

No
Housing material

Plastic
Earthing terminal block

No
DIN-rail

Yes
Extension possible

Yes
RAL-number

7035
Height

452 mm
Depth

151 mm

Number of rows

2
Type of covering

Door
Type of door

Single
Signal passing door

Yes
Type of closure

Other
Inner depth

151 mm
Neutral terminal block

No
With mounting plate

No
Colour

Grey
Degree of protection (IP)

IP65
Width

418 mm

Detalles del fabricante

Fabricante

Hager Industrial de Envolventes S.A.
Dirección

08430 La Roca del Valles Alfred Nobel 18 Hiszpania
Email

wsparcie.klienta@hager.com

Empaquetado a granel

una especie de paquete	Karton	Paleta	Karton	Paleta
Cantidad	1 uds.	22 uds.	1 uds.	22 uds.
Peso (kg)	3,500	102,000	3,500	102,000
Ancho (m)	0,430	0,800	0,430	0,800
Longitud (m)	0,150	1,050	0,150	1,050
Profundidad (m)	0,470	1,200	0,470	1,200
