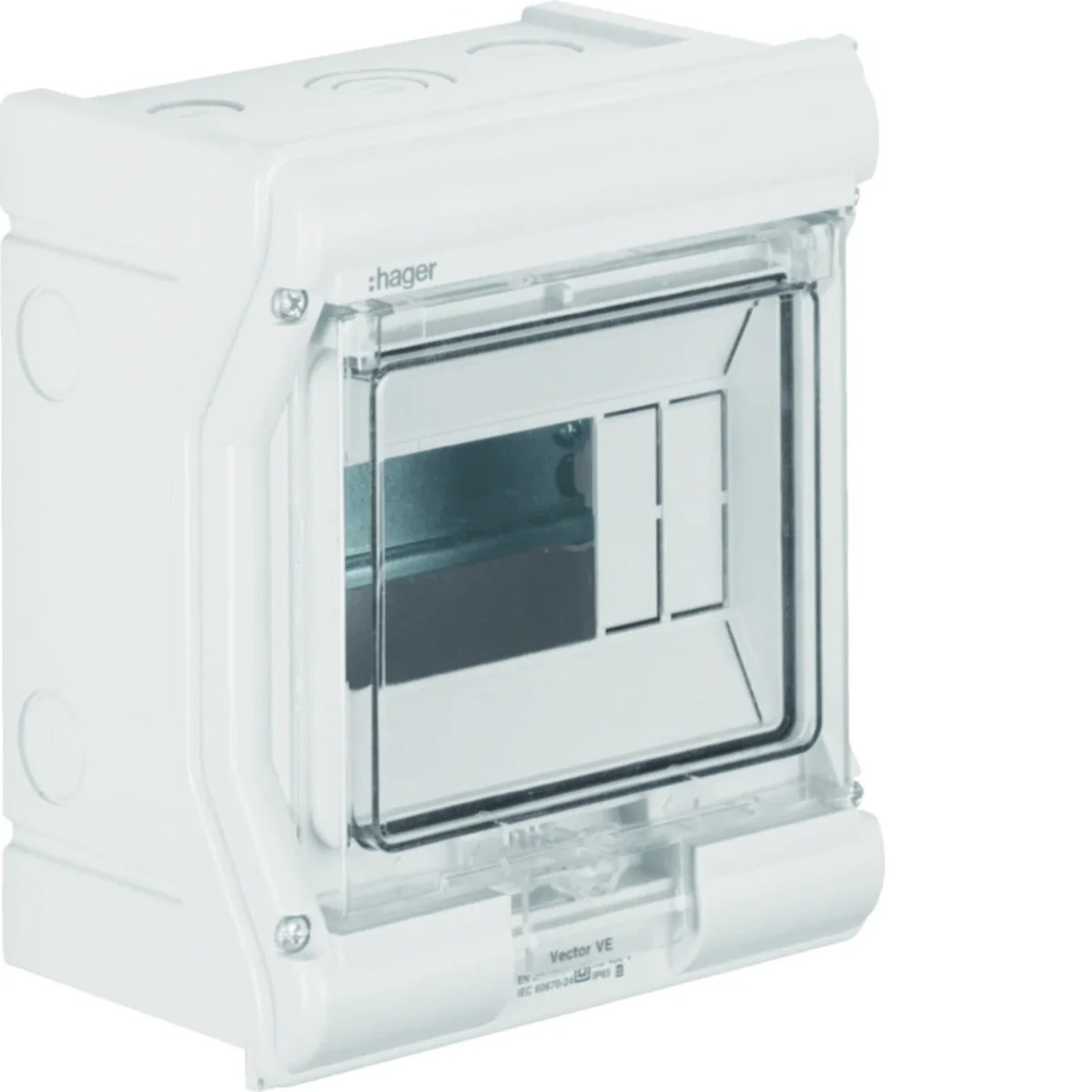

VECTOR OUTDOOR Switchgear IP65 UV-resistant 1R/6M (1x6) VE106PN

local index:
RIN024HAGE
Catalog No:
VE106PN
EAN code:
3250616450325
Manufacturer: HAGER
Depth [mm]: 113
Number of doors: 1
Number of rows: 1
Price:
31,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Surface-mounted switchgear 1-row, for metric cable glands, 1R/6M (1x6) knockouts, vector outdoor series.

Series characteristics:

Vector outdoor switchgears are made of plastic resistant to long-term exposure to UV radiation, intended for outdoor installation, resistant to weather conditions. Switchgears of this type can be used, among others, in photovoltaic systems; using dedicated mounting plates, it is possible to mount selected switchgears on pole structures.

  • for apparatus up to 63A
  • version with TS35 mounting rail
  • possibility of mounting on poles and masts with dedicated holders (for VE106PN/SN and VE110PN/SN)
  • flammability test 850°C with the glow-wire method according to EN 60695-2
  • II insulation class, IP65 , IK08
  • light gray

Technical data

  • Depth [mm]
    113
  • Number of rows
    1
  • Color
    Gray
  • Housing material
    Polycarbonate
  • Family
    VECTOR OUTDOOR
  • Height [mm]
    190
  • Accurate color
    light gray
  • Number of sections
    1
  • Lock type
    Latch
  • Number of doors
    1
  • Protection class
    II
  • Material
    Plastic
  • Installation
    Surface-mounted
  • Width [mm]
    165
  • Number of modules
    6
  • Glow wire test [°C]
    850
  • Number of rows for cameras
    1
  • PKWIU
    27.12.40.0

Other technical data

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    6
  • Cover model
    Closed
  • Housing material
    Plastic
  • Width
    165 mm
  • Inner depth
    113 mm
  • With mounting plate
    No
  • Colour
    Grey
  • Degree of protection (IP)
    IP65
  • Type of closure
    Other
  • Number of rows
    1
  • Type of covering
    Door
  • Transparent cover/door
    Yes
  • Height
    190 mm
  • Depth
    113 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    7035
  • With lock
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 184 pcs.
Weight (kg) 0,580 0,664 147,176
Width (m) 0,150 0,186 0,800
Length (m) 0,210 0,122 1,110
Depth (m) 0,130 0,205 1,200
