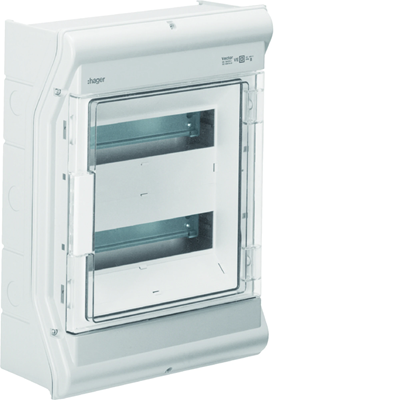

VECTOR OUTDOOR Distribution box IP65, UV resistant without ribs 2R/24M (2x12) VE212SN

Name: VECTOR OUTDOOR Distribution box IP65, UV resistant without ribs 2R/24M (2x12)
Brand: HAGER
SKU: RIN031HAGE
Price: 113.21 PLN

Index local:

RIN031HAGE

Numéro de catalogue:

VE212SN

Code EAN:

3250616450455

VECTOR OUTDOOR Distribution box IP65, UV resistant without ribs 2R/24M (2x12)

Cliquer sur la photo pour l'agrandir

Producteur: HAGER

Depth [mm]: 151

Number of doors: 1

Number of rows: 2

Voir la description complète

Prix:

113,21 €

gross / pcs.

(y compris la TVA 23%)

Livraison en 3h

jusqu'à 4 semaines (jours ouvrables)

Ramassage en 1h

Quantité pcs.

(plusieurs:

)

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Surface-mounted switchgear 2-row, without knockouts 2R/24M (2x12), vector outdoor series.

Series characteristics:

Vector outdoor switchgears are made of plastic resistant to long-term exposure to UV radiation, intended for outdoor installation, resistant to weather conditions. Switchgears of this type can be used, among others, in photovoltaic systems; using dedicated mounting plates, it is possible to mount selected switchgears on pole structures.

for apparatus up to 63A
version with TS35 mounting rail
possibility of mounting on poles and masts with dedicated holders (for VE106PN/SN and VE110PN/SN)
flammability test 850°C with the glow-wire method according to EN 60695-2
II insulation class, IP65 , IK08
light gray

Données techniques

Depth [mm]

151
Number of rows

2
Color

Gray
Housing material

Polycarbonate
Family

VECTOR OUTDOOR
Height [mm]

427
Accurate color

light gray
Number of sections

1
Lock type

Latch

Number of doors

1
Protection class

II
Material

Plastic
Installation

Surface-mounted
Width [mm]

310
Number of modules

24
Glow wire test [°C]

850
Number of rows for cameras

2
PKWIU

27.12.40.0

Autres données techniques

Mounting method

Surface mounted
Width in number of modular spacings

24
Cover model

Closed
Housing material

Plastic
Width

310 mm
Inner depth

151 mm
With mounting plate

No
Colour

Grey
Degree of protection (IP)

IP65
Type of closure

Other

Number of rows

2
Type of covering

Door
Transparent cover/door

Yes
Height

427 mm
Depth

151 mm
DIN-rail

Yes
Extension possible

Yes
RAL-number

7035
With lock

No

Détails du fabricant

Producteur

HAGER POLO Sp. z o. o.
Adresse

43-100 Tychy Fabryczna 10
Numéro identifiant TVA

6460015532

Emballage en vrac

Une sorte de paquet	Karton	Paleta
Quantité	1 pcs.	36 pcs.
poids (kg)	2,570	117,520
Largeur (m)	0,330	0,800
Longueur (m)	0,160	1,100
Profondeur (m)	0,436	1,200
