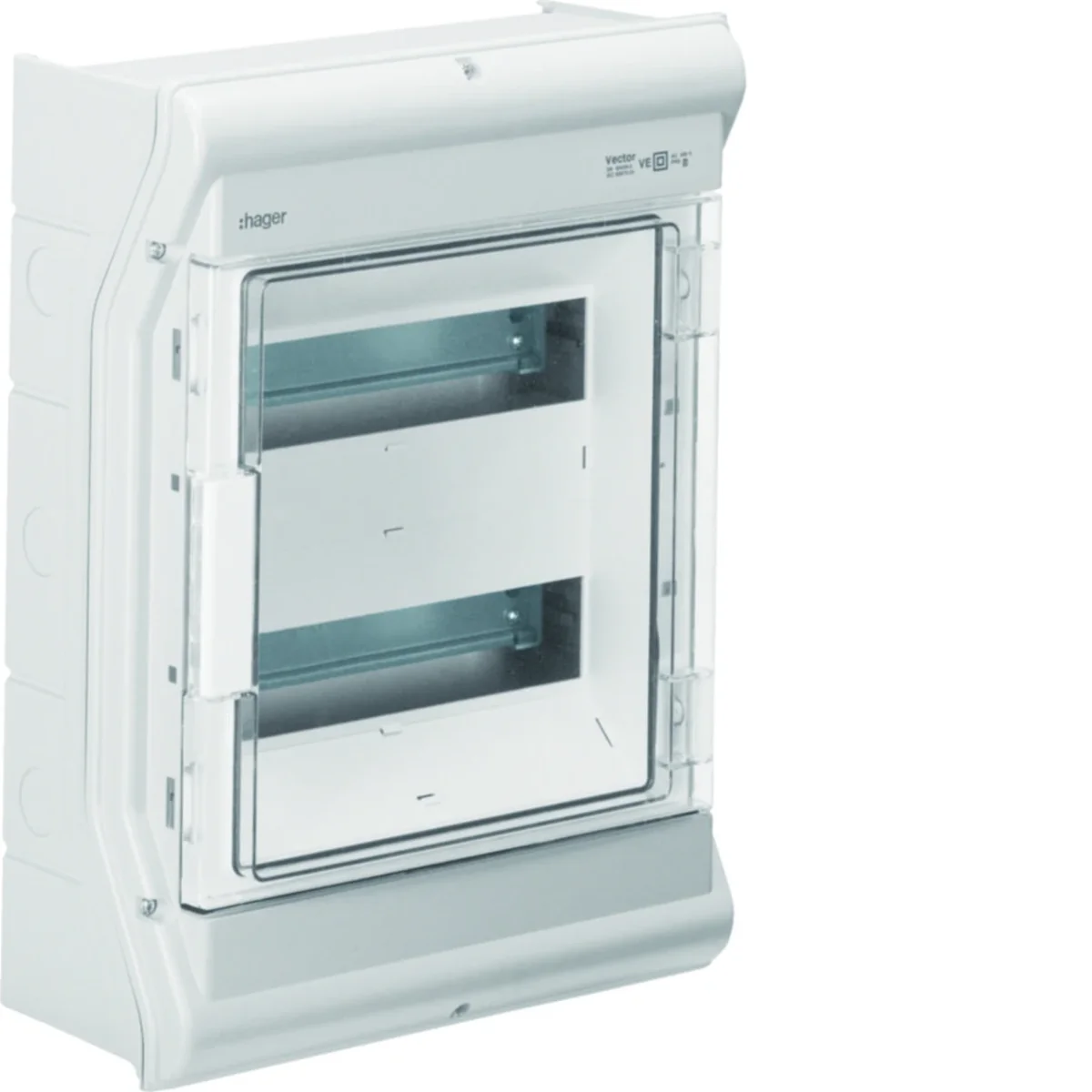

VECTOR OUTDOOR Distribution box IP65, UV resistant without ribs 2R/24M (2x12) VE212SN

local index:
RIN031HAGE
Catalog No:
VE212SN
EAN code:
3250616450455
Manufacturer: HAGER
Depth [mm]: 151
Number of doors: 1
Number of rows: 2
Price:
109,63 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Surface-mounted switchgear 2-row, without knockouts 2R/24M (2x12), vector outdoor series.

Series characteristics:

Vector outdoor switchgears are made of plastic resistant to long-term exposure to UV radiation, intended for outdoor installation, resistant to weather conditions. Switchgears of this type can be used, among others, in photovoltaic systems; using dedicated mounting plates, it is possible to mount selected switchgears on pole structures.

  • for apparatus up to 63A
  • version with TS35 mounting rail
  • possibility of mounting on poles and masts with dedicated holders (for VE106PN/SN and VE110PN/SN)
  • flammability test 850°C with the glow-wire method according to EN 60695-2
  • II insulation class, IP65 , IK08
  • light gray

Technical data

  • Depth [mm]
    151
  • Number of rows
    2
  • Color
    Gray
  • Housing material
    Polycarbonate
  • Family
    VECTOR OUTDOOR
  • Height [mm]
    427
  • Accurate color
    light gray
  • Number of sections
    1
  • Lock type
    Latch
  • Number of doors
    1
  • Protection class
    II
  • Material
    Plastic
  • Installation
    Surface-mounted
  • Width [mm]
    310
  • Number of modules
    24
  • Glow wire test [°C]
    850
  • Number of rows for cameras
    2
  • PKWIU
    27.12.40.0

Other technical data

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    24
  • Cover model
    Closed
  • Housing material
    Plastic
  • Width
    310 mm
  • Inner depth
    151 mm
  • With mounting plate
    No
  • Colour
    Grey
  • Degree of protection (IP)
    IP65
  • Type of closure
    Other
  • Number of rows
    2
  • Type of covering
    Door
  • Transparent cover/door
    Yes
  • Height
    427 mm
  • Depth
    151 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    7035
  • With lock
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 36 pcs.
Weight (kg) 2,560 2,570 117,520
Width (m) 0,330 0,330 0,800
Length (m) 0,160 0,160 1,100
Depth (m) 0,436 0,436 1,200
