V-TEC L PG7 LGR Cable gland with long connection thread 2024284

Name: V-TEC L PG7 LGR Cable gland with long connection thread
Brand: OBO BETTERMANN
SKU: RRR125OBOB
Price: 3.38 PLN
Availability: BackOrder

local index:

RRR125OBOB

Catalog number:

2024284

EAN code:

4012195839538

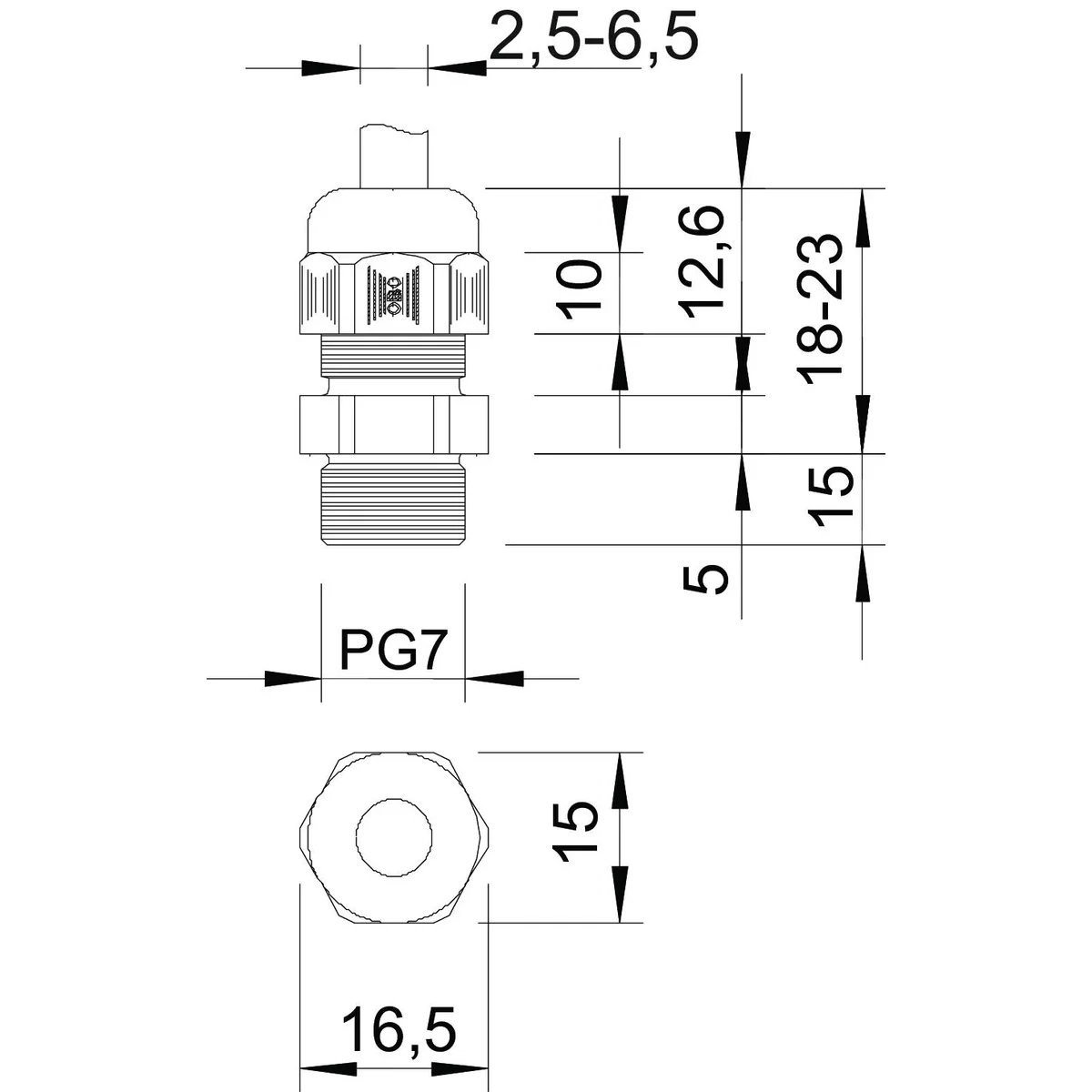

V-TEC L PG7 LGR Cable gland with long connection thread

Click on the photo to enlarge

Manufacturer: OBO BETTERMANN

Price:

3,38 zł

gross / pcs.

(including VAT 23%)

2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Bulk packaging Files to download

Technical data

Other technical data

Thread type

PG
Pitch thread

1.5 mm
Wrench width

15 mm
Suitable for cable diameter

2.5 ... 6.5 mm
Material quality

Polyamide (PA)
Glass-fibre reinforced

No
Shock resistant

No
RAL-number

7035
With locknut

No
Multi seal area

No
With strain relief

Yes
Separable screw gland

No
Explosion-tested version

No
For Ex-Zone dust

None

Nominal thread size metric/PG

7
Thread length

15 mm
Hexagon angular dimension

16.5 mm
Material

Plastic
Halogen free

Yes
Degree of protection (IP)

IP68
Colour

Grey
Bend radius protection/trumpet flare

No
Model

Straight
Flat cable coupling

No
Type of sealing

Sealing ring
Operating temperature

-20 ... 65 °C
For Ex-zone gas

None

Manufacturer details

Manufacturer

OBO Bettermann Holding GmbH & Co. KG
Address

58710 Menden Hüingser Ring 52 Niemcy
E-mail

oferty@obo.pl

Bulk packaging

A kind of package	Skrzynia	Karton	Paleta
Quantity	50 pcs.	500 pcs.	50000 pcs.
Weight (kg)	0,241	2,604	300,400
Volume (m3)	0,001	0,006	0,912
Width (m)	0,073	0,148	0,800
Length (m)	0,133	0,235	1,200
Depth (m)	0,055	0,183	0,950
