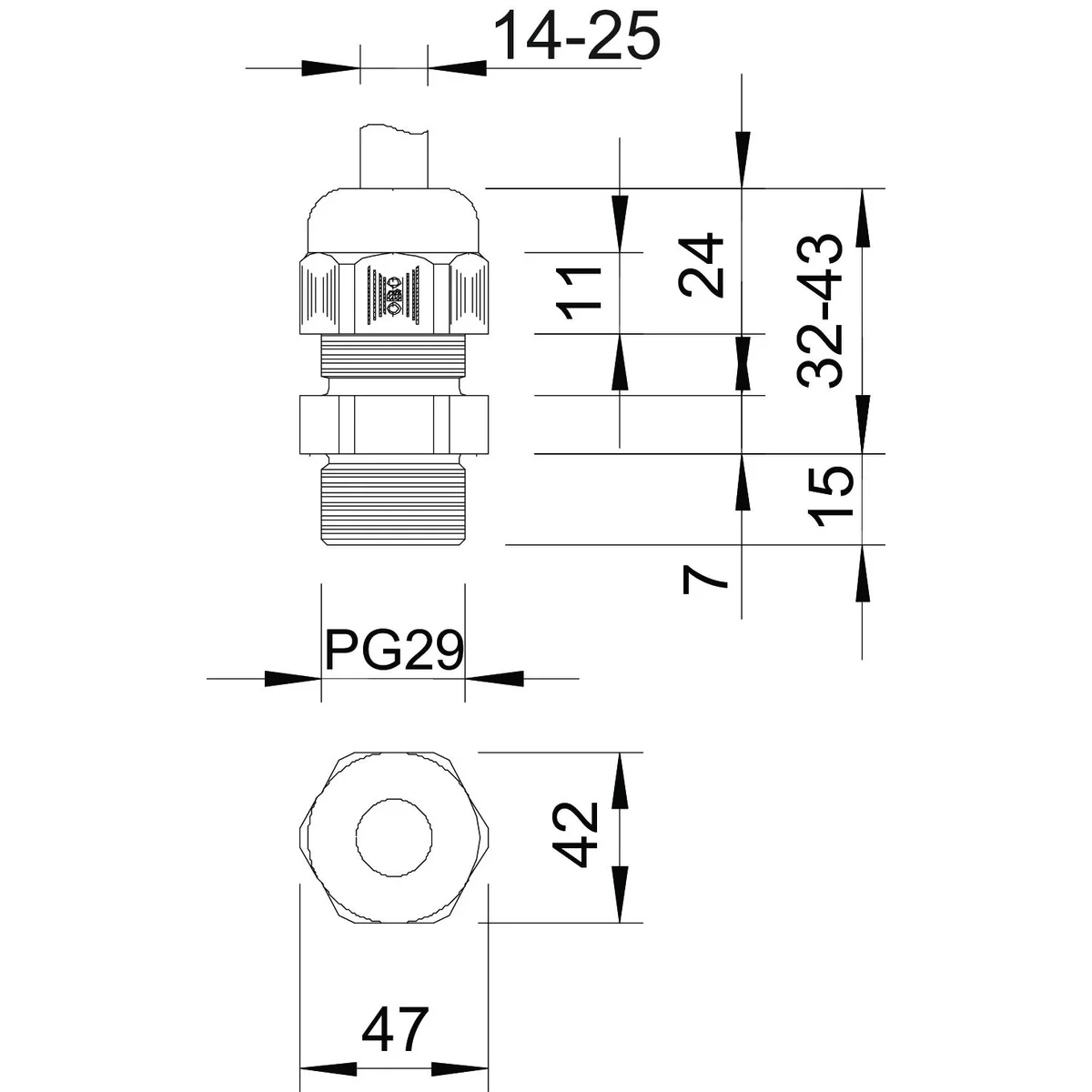

V-TEC L PG29 LGR Cable gland with long connection thread 2024349

Index local:
RRR161OBOB
Numéro de catalogue:
2024349
Code EAN:
4012195839897
Producteur: OBO BETTERMANN
Prix:
12,90 zł
gross / pcs.
(y compris la TVA 23%)
2 semaines
Sur commande
Quantité pcs.
(plusieurs:
20
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Données techniques

Autres données techniques

  • Thread type
    PG
  • Pitch thread
    1.5 mm
  • Wrench width
    42 mm
  • Suitable for cable diameter
    14 ... 25 mm
  • Material quality
    Polyamide (PA)
  • Glass-fibre reinforced
    No
  • Shock resistant
    No
  • RAL-number
    7035
  • With locknut
    No
  • Multi seal area
    No
  • With strain relief
    Yes
  • Separable screw gland
    No
  • Explosion-tested version
    No
  • For Ex-Zone dust
    None
  • Nominal thread size metric/PG
    29
  • Thread length
    15 mm
  • Hexagon angular dimension
    47.5 mm
  • Material
    Plastic
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP68
  • Colour
    Grey
  • Bend radius protection/trumpet flare
    No
  • Model
    Straight
  • Flat cable coupling
    No
  • Type of sealing
    Sealing ring
  • Operating temperature
    -20 ... 65 °C
  • For Ex-zone gas
    None

Détails du fabricant

  • Producteur
    OBO Bettermann Holding GmbH & Co. KG
  • Adresse
    58710 Menden Hüingser Ring 52 Niemcy
  • E-mail

Emballage en vrac

Une sorte de paquet Skrzynia Karton Paleta
Quantité 20 pcs. 240 pcs. 3840 pcs.
poids (kg) 0,864 10,957 197,812
Volume (m3) 0,003 0,044 0,912
Largeur (m) 0,138 0,288 0,800
Longueur (m) 0,188 0,395 1,200
Profondeur (m) 0,116 0,383 0,950
