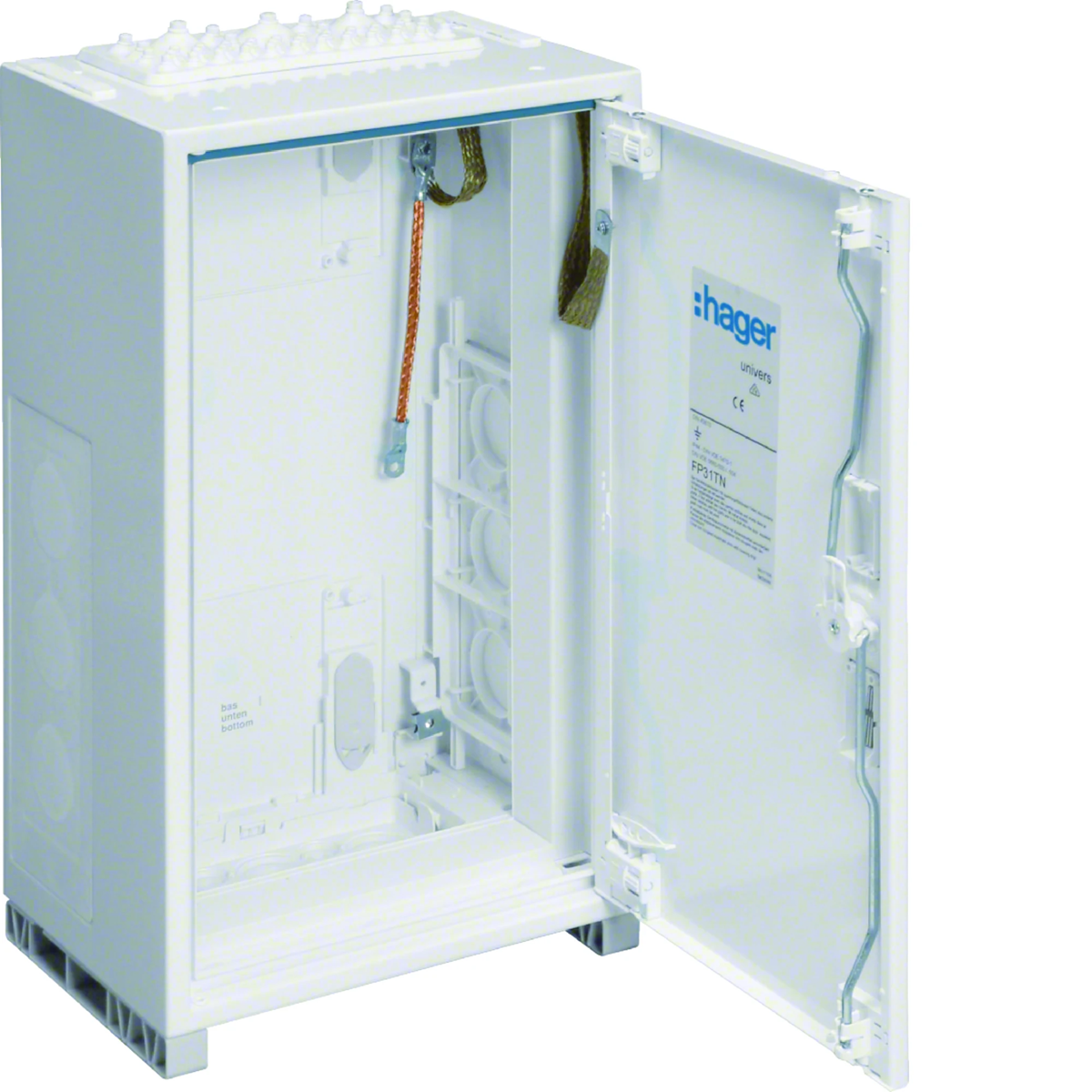

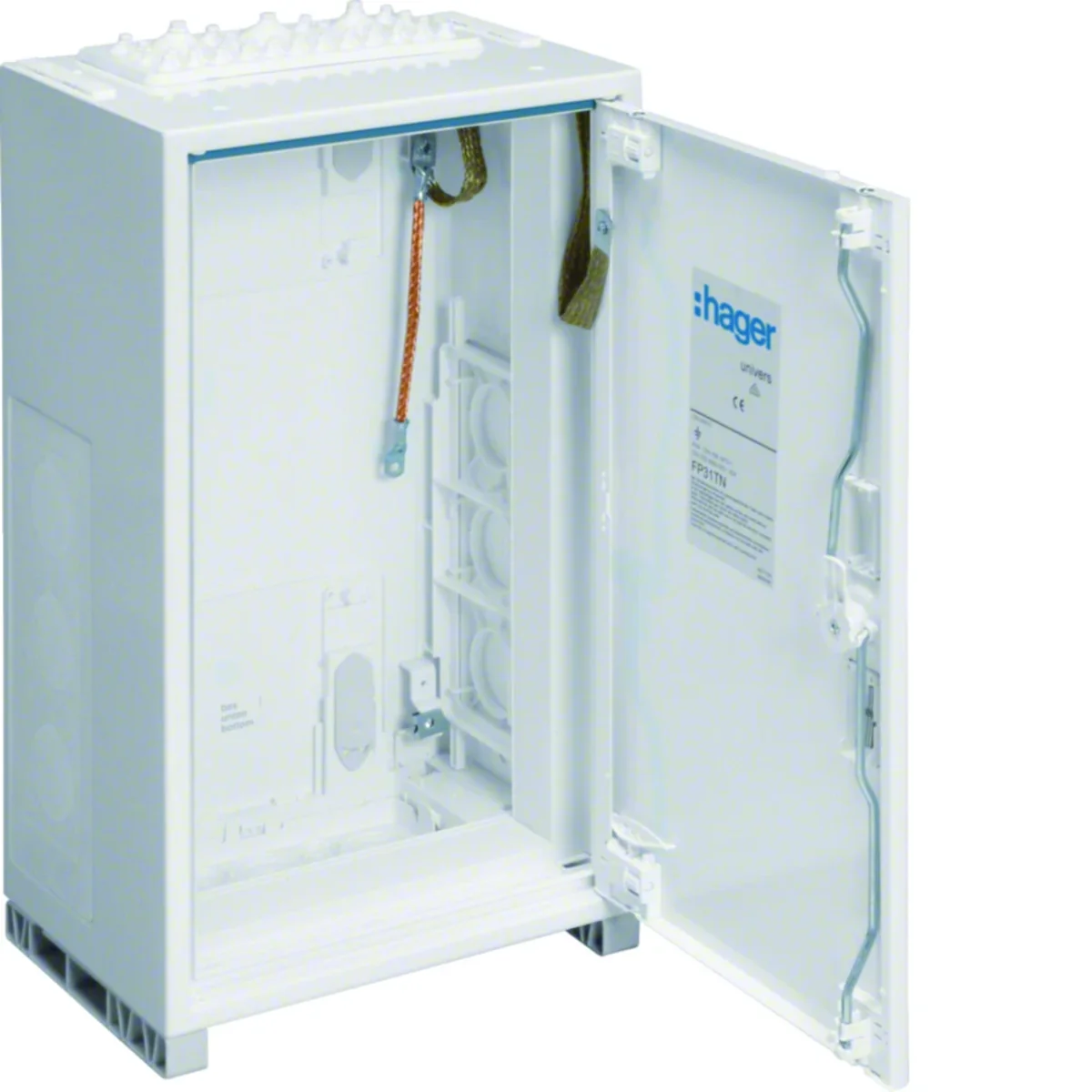

UNIVERS Wall-mounted enclosure IP44/I 500x300x205 FP31TN2

local index:
RIH137HAGE
Catalog No:
FP31TN2
EAN code:
3250612667390
Manufacturer: HAGER
Depth [mm]: 205
Thickness [mm]: 1
Number of doors: 1
Price:
242,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Wall-mounted enclosure from the univers series.

Series characteristics:

Cabinet systems are characterized by built-in functionality, not only as distribution switchgears (main power supply), but also as metering cabinets - they always form one compact whole, while guaranteeing maximum safety.

Technical data

  • Depth [mm]
    205
  • Number of doors
    1
  • Protection class
    AND
  • Material
    steel
  • Family
    UNIVERS
  • Width [mm]
    250
  • Surface finish
    Powder coated
  • Number of rows for cameras
    3
  • Lock type
    T-Handle
  • Thickness [mm]
    1
  • Number of locks
    1
  • Color
    White
  • Housing material
    Steel plate
  • Level of security
    IP44
  • Height [mm]
    500
  • Number of sections
    1
  • Number of cable entries
    2
  • PKWIU
    27.12.40.0

Other technical data

  • Mounting method
    Other
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    250 A
  • Width
    300 mm
  • Built-in depth
    205 mm
  • Material plate thickness cabinet
    1 mm
  • Colour
    White
  • Number of modules
    36
  • Width in number of modular spacings
    12
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    I
  • Circuit integrity
    None
  • Type of covering
    Cover
  • Type of door
    Single
  • With lock
    No
  • Height
    500 mm
  • Depth
    205 mm
  • Inner depth
    205 mm
  • Material plate thickness door/cover
    1 mm
  • RAL-number
    9010
  • Number of rows
    3
  • Number of openings for flange plates
    2
  • Number of conduit inlets
    2
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP44
  • Impact strength
    IK09

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 24 pcs.
Weight (kg) 6,200 6,890 190,360
Width (m) 0,300 0,215 0,860
Length (m) 0,500 0,550 0,800
Depth (m) 0,205 0,320 1,200
