UNIVERS Wall-mounted enclosure IP44/I 1550x1050x205mm FP04TN2

local index:
RIH110HAGE
Catalog No:
FP04TN2
EAN code:
3250612668236
Manufacturer: HAGER
Depth [mm]: 205
Number of doors: 2
Installation: Flush or surface or semi-recessed
Price:
1022,02 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

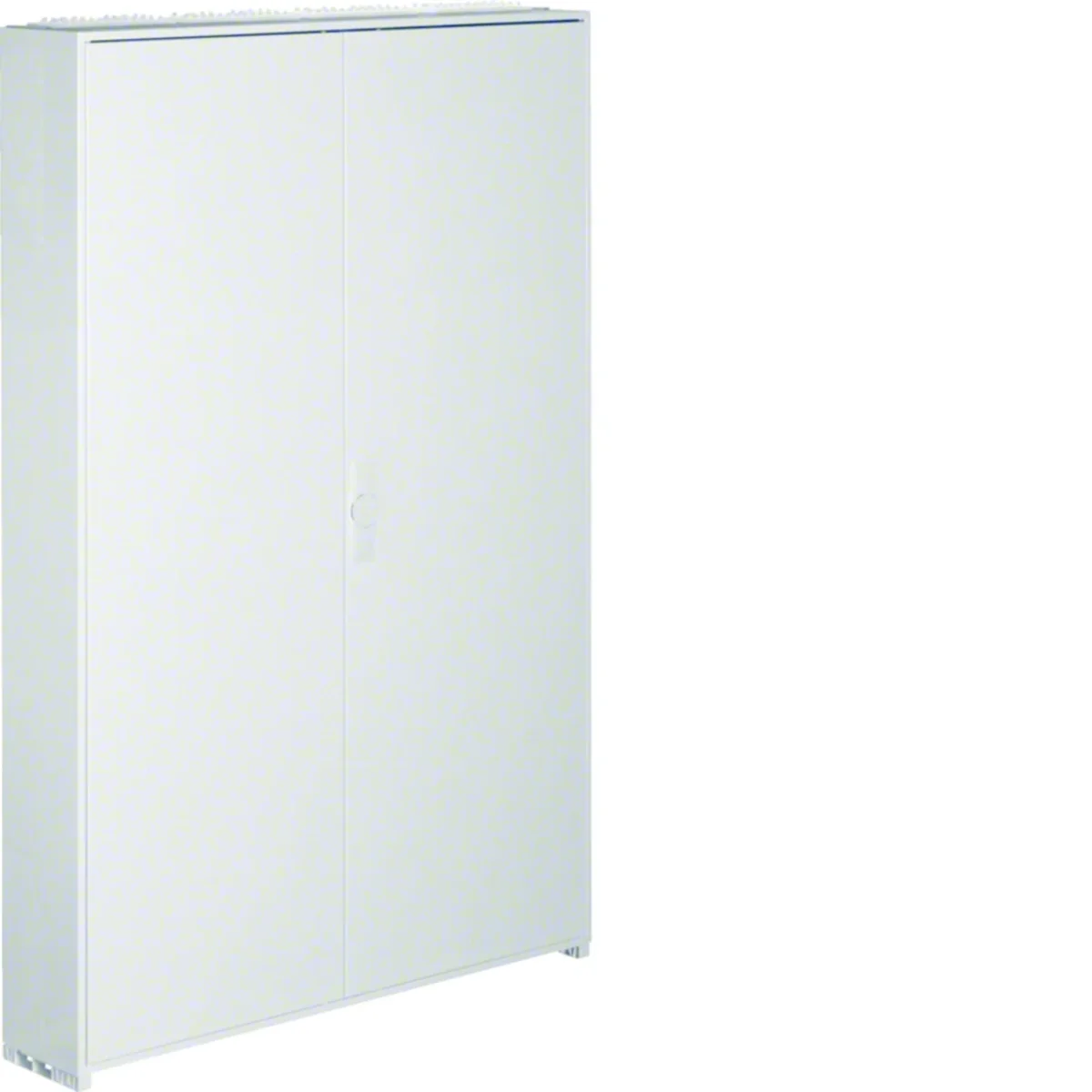

UNIVERS Wall-mounted housing, protection class I, hinged handle

Technical data

  • Depth [mm]
    205
  • Installation
    Flush or surface or semi-recessed
  • Width [mm]
    1050
  • PKWIU
    27.12.40.0
  • Number of doors
    2
  • Level of security
    IP44
  • Height [mm]
    1550

Other technical data

  • Mounting method
    Other
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    400 A
  • Width
    1050 mm
  • Built-in depth
    205 mm
  • Material plate thickness cabinet
    1 mm
  • Colour
    White
  • Number of modules
    480
  • Width in number of modular spacings
    48
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    I
  • Circuit integrity
    None
  • Type of covering
    Cover
  • Type of door
    Double
  • With lock
    No
  • Height
    1550 mm
  • Depth
    205 mm
  • Inner depth
    205 mm
  • Material plate thickness door/cover
    1 mm
  • RAL-number
    9010
  • Number of rows
    10
  • Number of openings for flange plates
    8
  • Number of conduit inlets
    8
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP44
  • Impact strength
    IK09

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 4 pcs.
Weight (kg) 42,499 42,500 195,000
Width (m) 1,070 0,215 0,860
Length (m) 1,600 1,600 1,755
Depth (m) 0,220 1,070 1,200
