UNIVERS Spare door IP55 for FR41x FZ041R

Name: UNIVERS Spare door IP55 for FR41x
Brand: HAGER
SKU: RRR2Z9HAGE
Price: 137.50 PLN

local index:

RRR2Z9HAGE

Catalog No:

FZ041R

EAN code:

3250616004948

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 25

Thickness [mm]: 1.5

Number of locks: 1

See full description

Price:

137,50 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

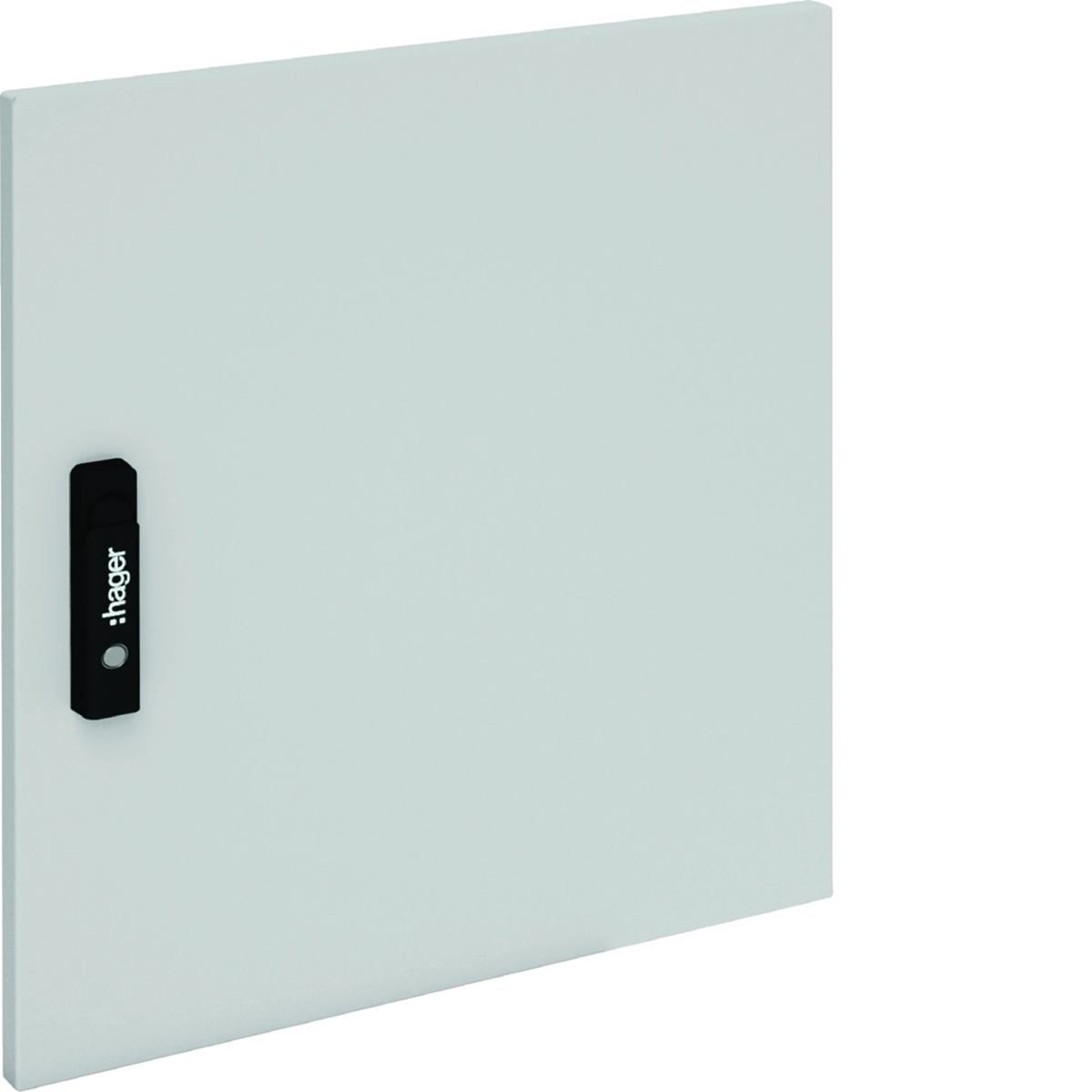

Spare doorfor FR41x switchgear, univers series. The type of key is the rotary lever of the semi-cylindrical insert.

Series characteristics:

Cabinet systems are characterized by the functionality of installation, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one compact whole, guaranteeing maximum safety.

Technical data

Depth [mm]

25
Number of locks

1
Material

Galvanized steel sheet
Installation

Surface-mounted
Family

UNIVERS
Width [mm]

250
Surface finish

Powder coated

Thickness [mm]

1.5
Color

Gray
Housing material

Steel plate
Surface

Matt
Level of security

IP00
Height [mm]

600
PKWIU

27.12.40.0

Other technical data

Model

Stop door
Version as door for disconnecting switch interlocking

No
Height

600 mm
Material

Steel
Colour

Grey

Version as glazed door

No
Width

250 mm
Depth

25 mm
Surface finishing

Powder coating
Degree of protection (IP)

IP55

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	26 pcs.
Weight (kg)	3,066	3,220	83,720
Width (m)	0,300	0,320	0,900
Length (m)	0,650	0,670	1,100
Depth (m)	0,060	0,085	1,700
