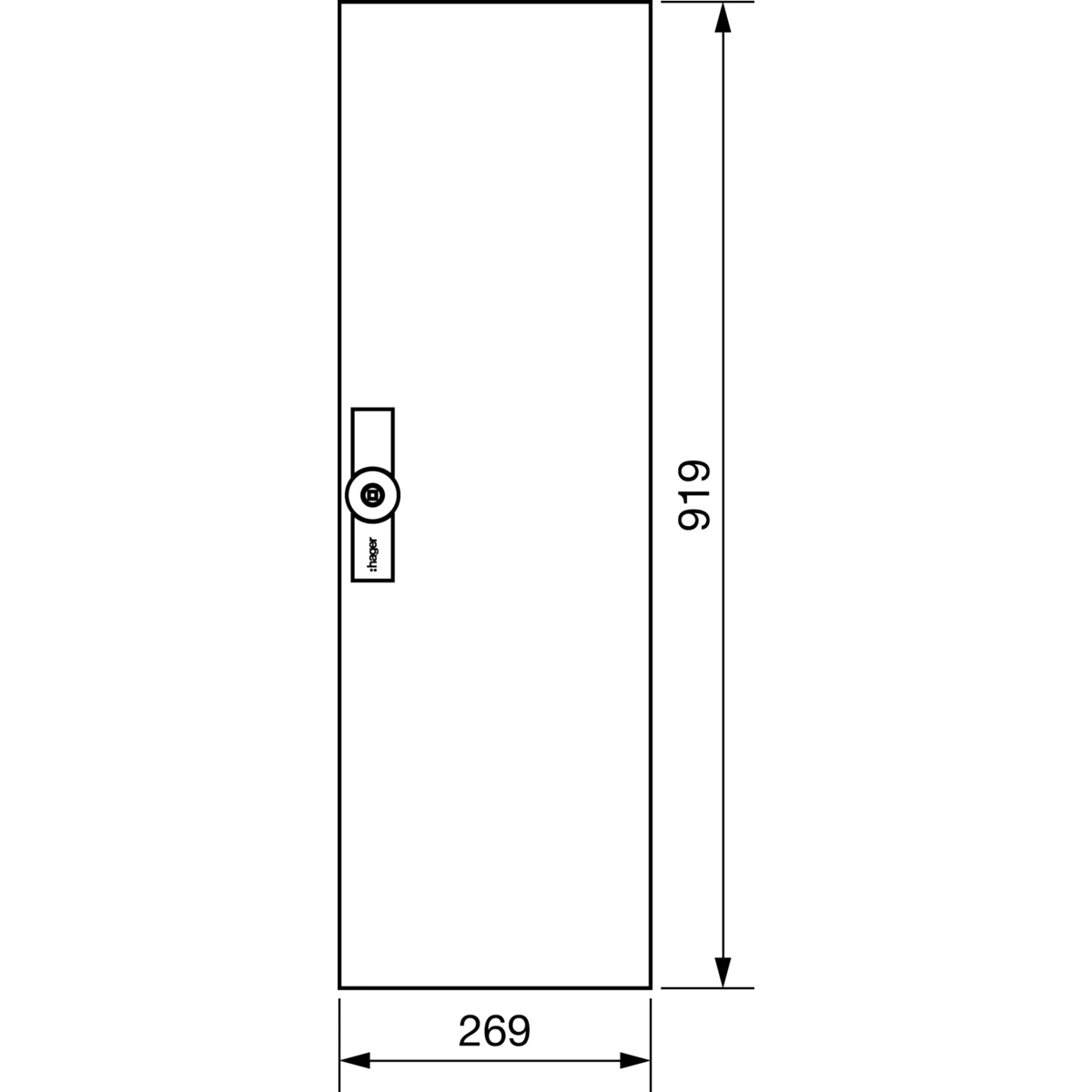

UNIVERS Right door for IP54 enclosure 919x269mm FZ013W

Indice locale:
RRR0R4HAGE
Numero di catalogo:
FZ013W
Codice EAN:
3250612778799
Produttore: HAGER
Depth [mm]: 12
Number of locks: 1
Color: White
Prezzo:
92,90 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 10 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

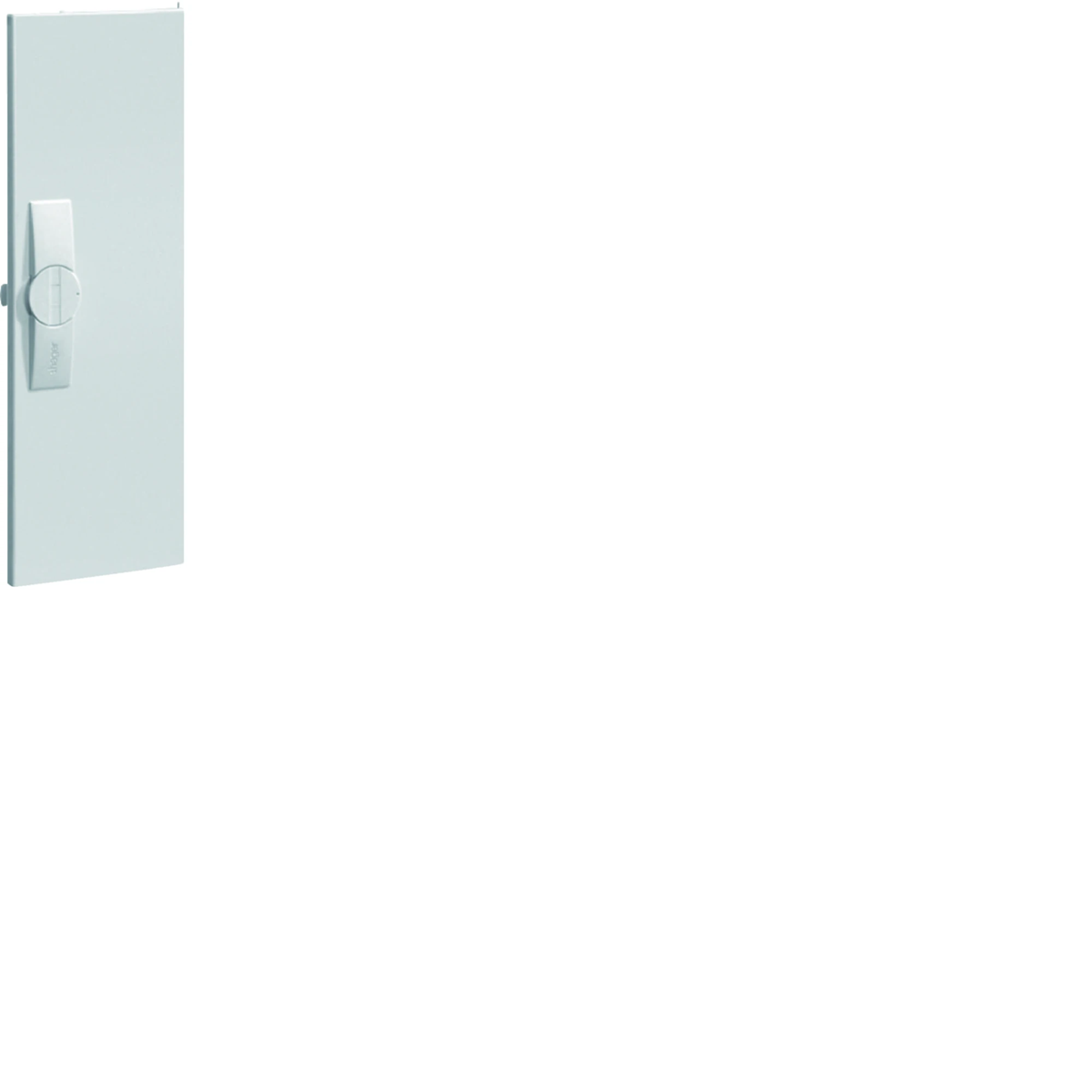

Right door for the enclosure, with a bar lock, with a triangular insert, from the univers series.

Series characteristics:

The cabinet systems are functional, not only as distribution switchboards (main power supply), but also as metering cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Dati tecnici

  • Depth [mm]
    12
  • Color
    White
  • Family
    UNIVERS
  • Width [mm]
    269
  • Surface finish
    Powder coated
  • Lock type
    3-point lock
  • Number of locks
    1
  • Material
    Galvanized steel sheet
  • Level of security
    IP54
  • Height [mm]
    919
  • Number of sections
    1
  • PKWIU
    27.12.40.0

Altri dati tecnici

  • Model
    Partial door
  • Version as door for disconnecting switch interlocking
    No
  • Height
    919 mm
  • Material
    Steel
  • Colour
    White
  • Version as glazed door
    No
  • Width
    269 mm
  • Depth
    12 mm
  • Surface finishing
    Powder coating
  • Degree of protection (IP)
    IP54

Imballaggio sfuso

Una specie di pacchetto Karton Paleta
Quantità 1 pezzi 1 pezzi 50 pezzi
Peso (kg) 2,643 3,250 187,500
Larghezza (m) 0,268 0,300 0,800
Lunghezza (m) 0,920 0,055 0,690
Profondità (m) 0,016 0,950 1,200
