UNIVERS Right door for IP54 enclosure 1069x519mm FZ022W

Name: UNIVERS Right door for IP54 enclosure 1069x519mm
Brand: HAGER
SKU: RRR0T3HAGE
Price: 138.35 PLN

local index:

RRR0T3HAGE

Catalog No:

FZ022W

EAN code:

3250612778829

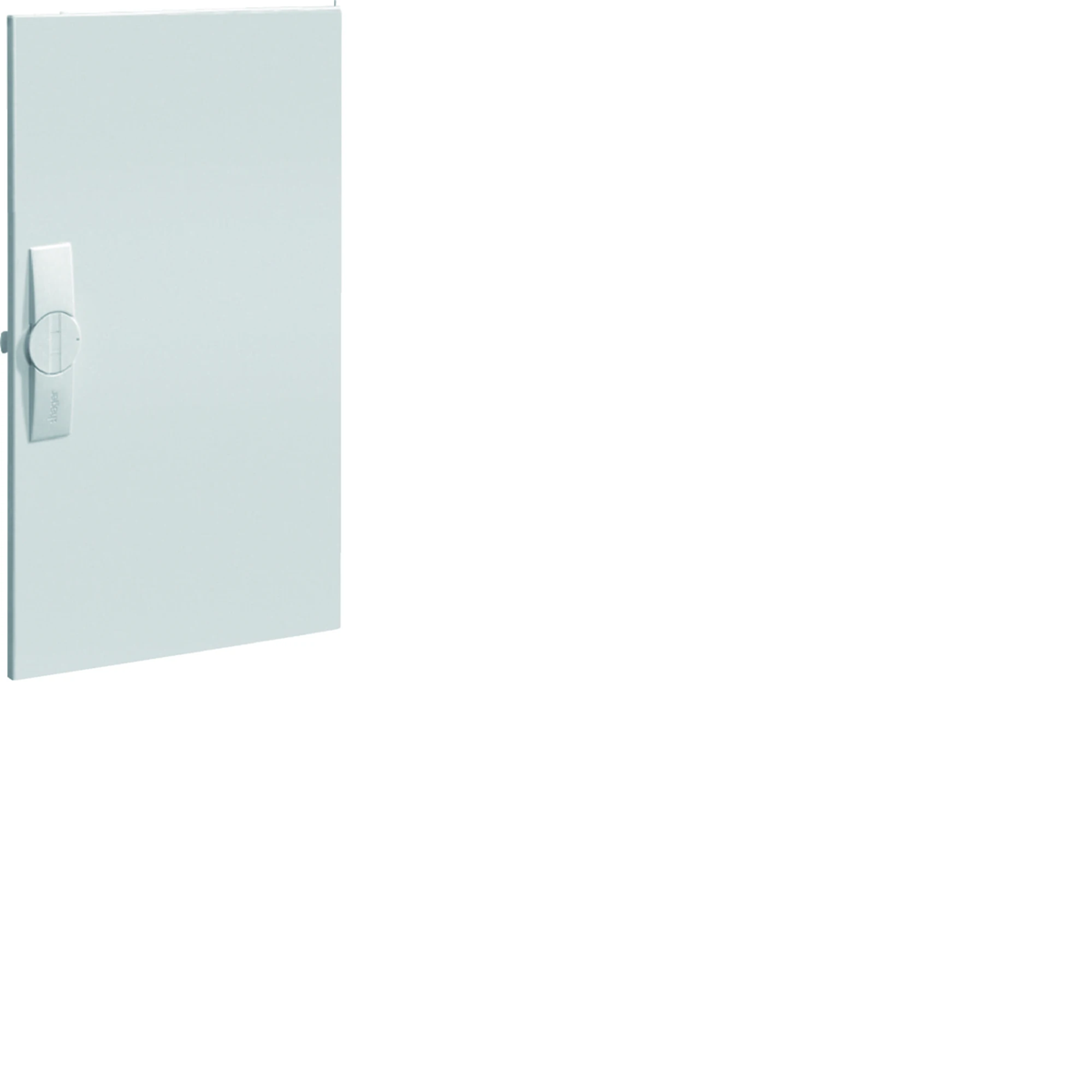

UNIVERS Right door for IP54 enclosure 1069x519mm

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 12

Number of locks: 1

Color: White

See full description

Price:

138,35 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Right door for the enclosure, with a bar lock, with a triangular insert, from the univers series.

Series characteristics:

The cabinet systems are functional, not only as distribution switchboards (main power supply), but also as metering cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

Depth [mm]

12
Color

White
Family

UNIVERS

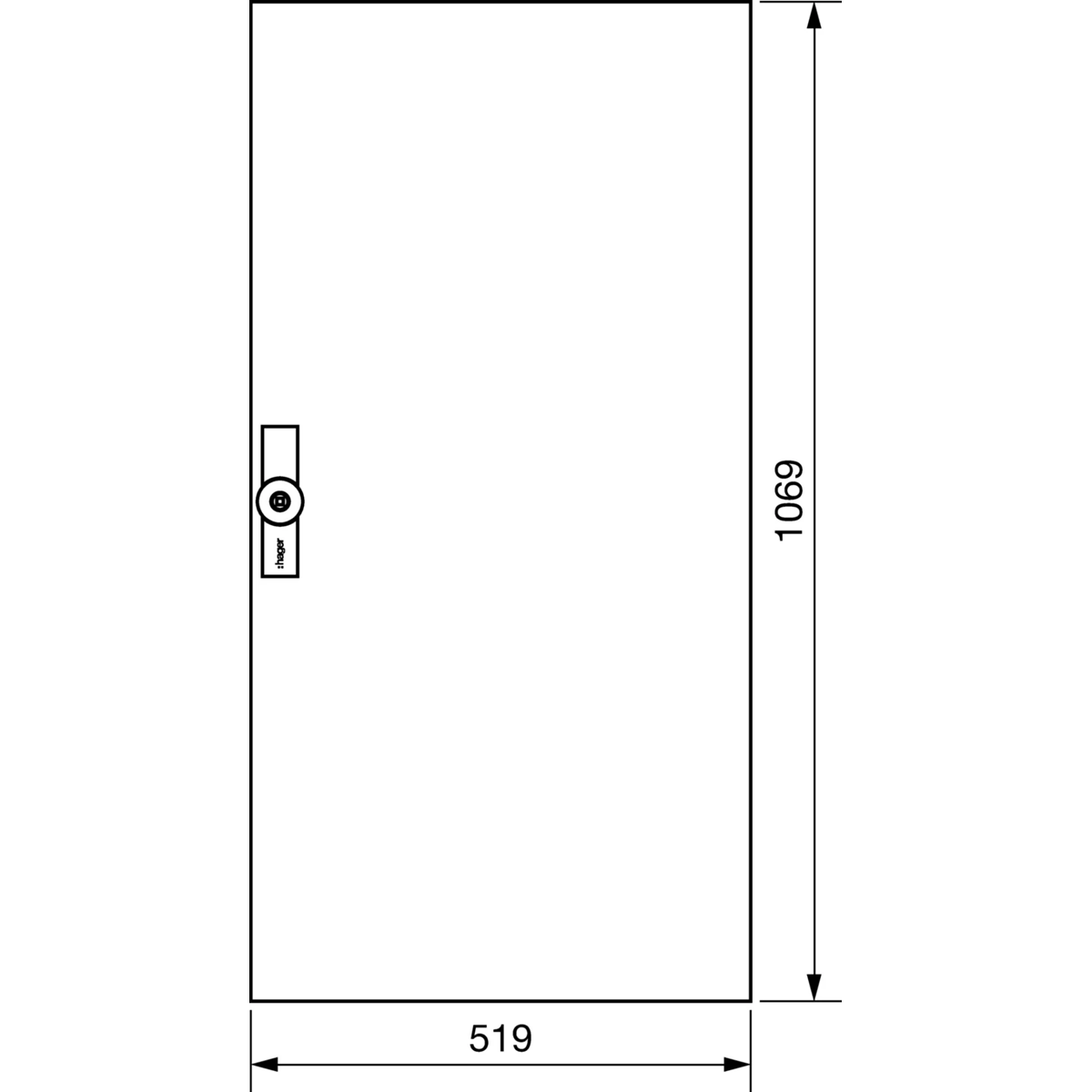

Width [mm]

519
Surface finish

Powder coated
Lock type

3-point lock

Number of locks

1
Material

Galvanized steel sheet
Level of security

IP54
Height [mm]

1069
Number of sections

2
PKWIU

27.12.40.0

Other technical data

Model

Partial door
Version as door for disconnecting switch interlocking

No
Height

1069 mm
Material

Steel
Colour

White

Version as glazed door

Yes
Width

519 mm
Depth

12 mm
Surface finishing

Powder coating
Degree of protection (IP)

IP54

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	5,800	6,000	83,000
Width (m)	0,520	0,550	0,800
Length (m)	1,080	0,050	1,050
Depth (m)	0,020	1,110	1,200
