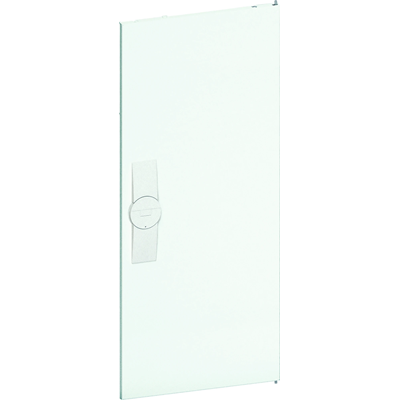

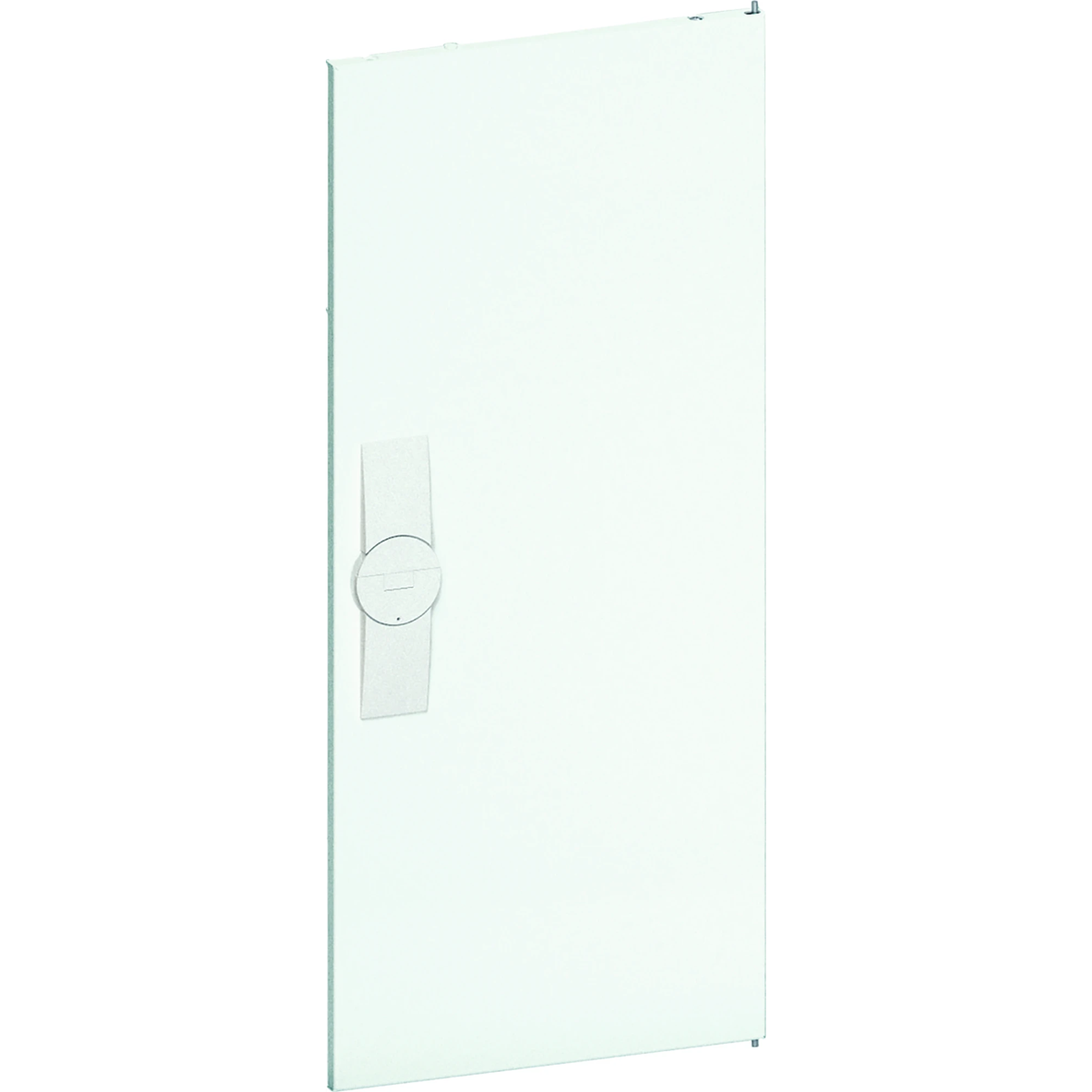

UNIVERS Right door for IP44 enclosure 619x269mm FZ005N

local index:
RRR0M9HAGE
Catalog No:
FZ005N
EAN code:
3250612776535
Manufacturer: HAGER
Depth [mm]: 12
Number of locks: 1
Color: White
Price:
97,40 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Right door with overlay bar closure for IP44 enclosure, univers series.

Series characteristics:

Cabinet systems are characterized by the functionality of installation, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

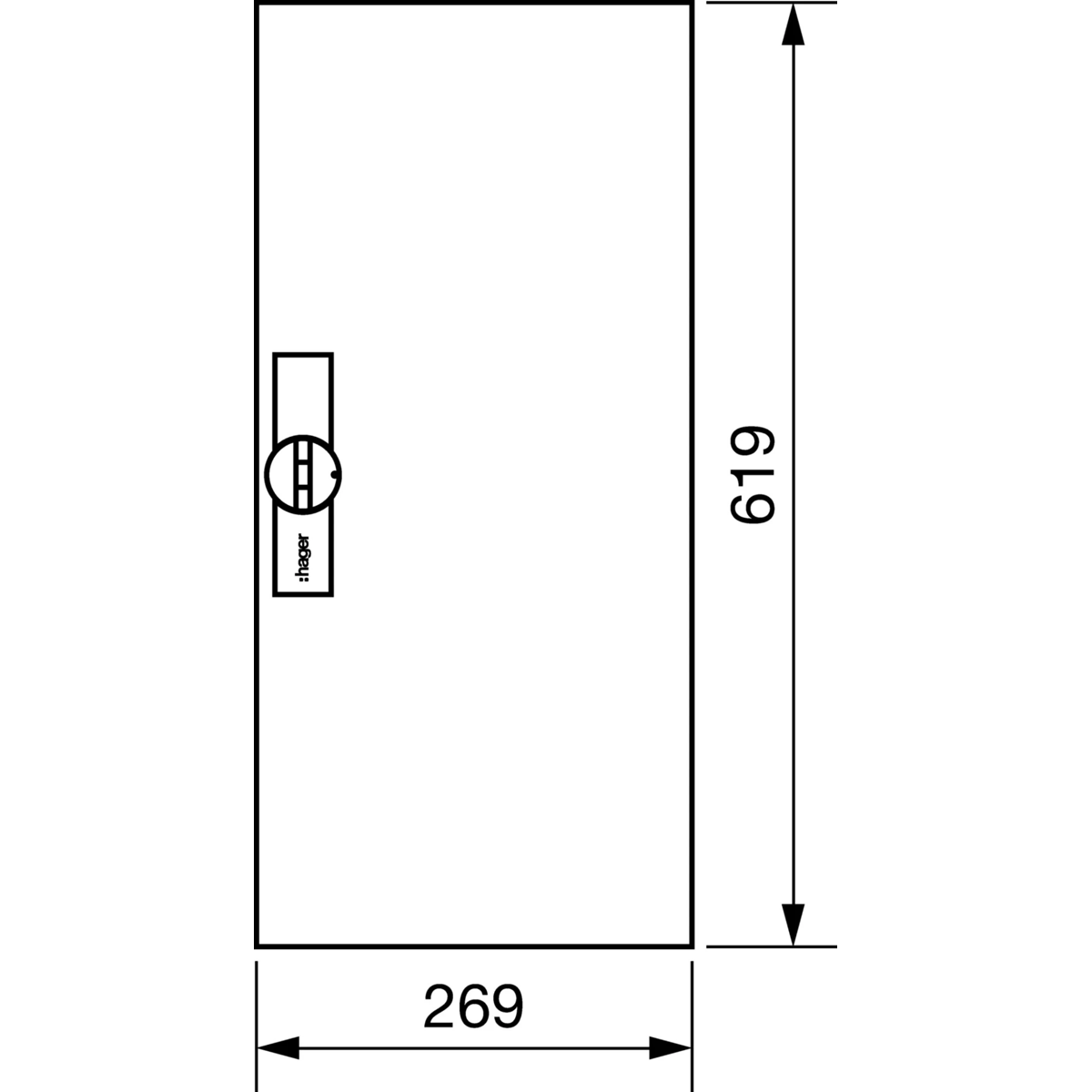

Technical data

  • Depth [mm]
    12
  • Color
    White
  • Family
    UNIVERS
  • Width [mm]
    269
  • Surface finish
    Powder coated
  • PKWIU
    27.12.40.0
  • Number of locks
    1
  • Material
    Galvanized steel sheet
  • Level of security
    IP44
  • Height [mm]
    619
  • Number of sections
    1

Other technical data

  • Model
    Partial door
  • Version as door for disconnecting switch interlocking
    No
  • Height
    619 mm
  • Material
    Steel
  • Colour
    White
  • Version as glazed door
    No
  • Width
    269 mm
  • Depth
    12 mm
  • Surface finishing
    Powder coating
  • Degree of protection (IP)
    IP44

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 60 pcs.
Weight (kg) 1,727 2,070 149,200
Width (m) 0,270 0,300 0,800
Length (m) 0,620 0,050 0,900
Depth (m) 0,016 0,650 1,200
