UNIVERS Right door for IP44 enclosure 1369x519mm FZ032N

Name: UNIVERS Right door for IP44 enclosure 1369x519mm
Brand: HAGER
SKU: RRR0U7HAGE
Price: 142.96 PLN

local index:

RRR0U7HAGE

Catalog No:

FZ032N

EAN code:

3250612776801

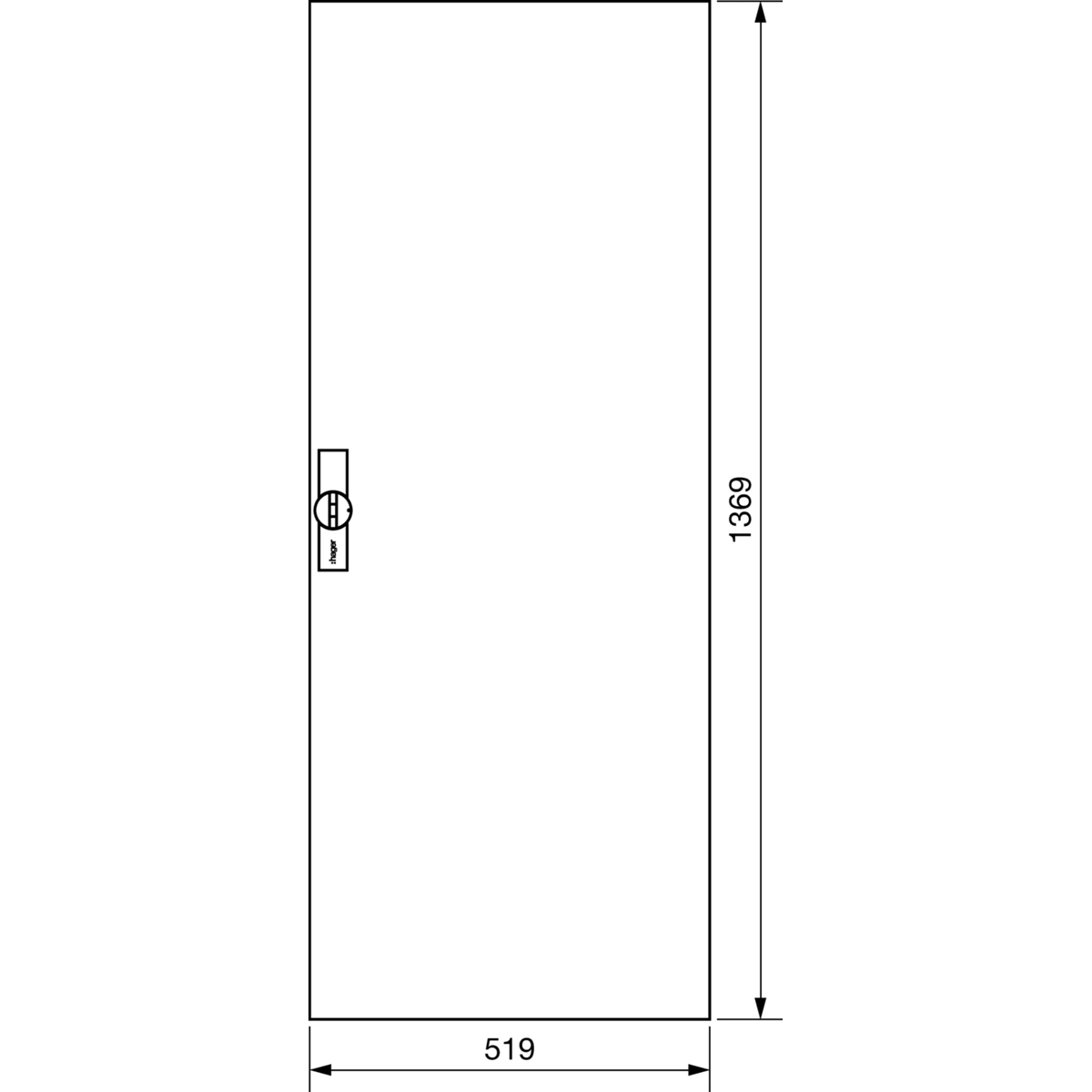

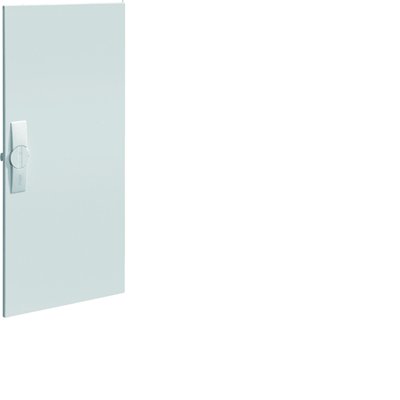

UNIVERS Right door for IP44 enclosure 1369x519mm

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 12

Number of locks: 1

Color: White

See full description

Price:

142,96 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Right replacement door for housing with overlay bar closure, series univers.

Series characteristics:

Cabinet systems are characterized by the functionality of installation, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

Depth [mm]

12
Color

White
Family

UNIVERS
Width [mm]

519
Surface finish

Powder coated
PKWIU

27.12.40.0

Number of locks

1
Material

Galvanized steel sheet
Level of security

IP44
Height [mm]

1369
Number of sections

2

Other technical data

Model

Partial door
Version as door for disconnecting switch interlocking

No
Height

1369 mm
Material

Steel
Colour

White

Version as glazed door

No
Width

519 mm
Depth

12 mm
Surface finishing

Powder coating
Degree of protection (IP)

IP44

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	7,600	8,010	103,100
Width (m)	0,550	0,565	0,800
Length (m)	0,050	0,050	1,050
Depth (m)	1,400	0,615	1,200
