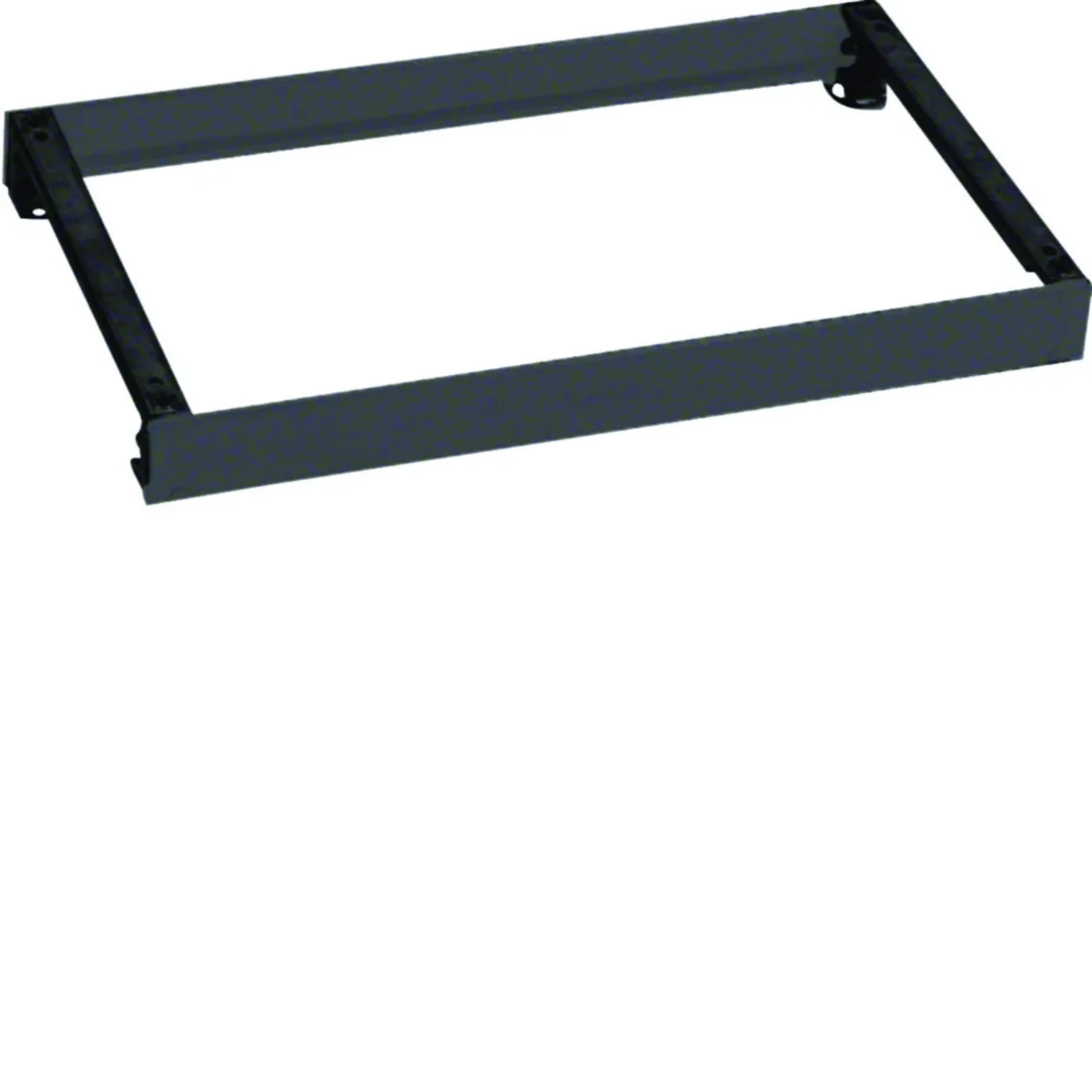

UNIVERS Plinth for standing enclosure IP41 RAL9005 200x600x400mm FZ942WE

local index:
RRR3R4HAGE
Catalog No:
FZ942WE
EAN code:
7611919323789
Manufacturer: HAGER
Depth [mm]: 400
Protection class: AND
Material: Galvanized steel sheet
Price:
198,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Plinth for floor-standing housing, without cable support rail, univers N HC series.

Series characteristics:

Cabinet systems are functional, not only as distribution switchgears (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

  • Depth [mm]
    400
  • Material
    Galvanized steel sheet
  • Family
    UNIVERS
  • Width [mm]
    600
  • Surface finish
    Powder coated
  • Protection class
    AND
  • Fixing
    screwed
  • Level of security
    IP41
  • Height [mm]
    200
  • PKWIU
    27.12.40.0

Other technical data

  • Model
    Base complete
  • Colour
    Black
  • Width
    599 mm
  • Depth
    375 mm
  • Suitable for enclosure building depth
    400 mm
  • Suitable for outdoor set-up
    No
  • Material
    Steel
  • Max. load capacity
    2600 kg
  • Height
    200 mm
  • Suitable for enclosure building width
    600 mm
  • Suitable for aeration/de-aeration
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 25 pcs.
Weight (kg) 8,891 8,892 247,300
Width (m) 0,370 0,375 0,800
Length (m) 0,195 0,200 1,200
Depth (m) 0,600 0,600 1,200
