UNIVERS Plinth for standing enclosure IP41 RAL9005 100x850x400mm FZ913WE

Index local:
RRR3P9HAGE
Numéro de catalogue:
FZ913WE
Code EAN:
7611919301404
Producteur: HAGER
Depth [mm]: 400
Protection class: AND
Material: steel
Prix:
614,98 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 10 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

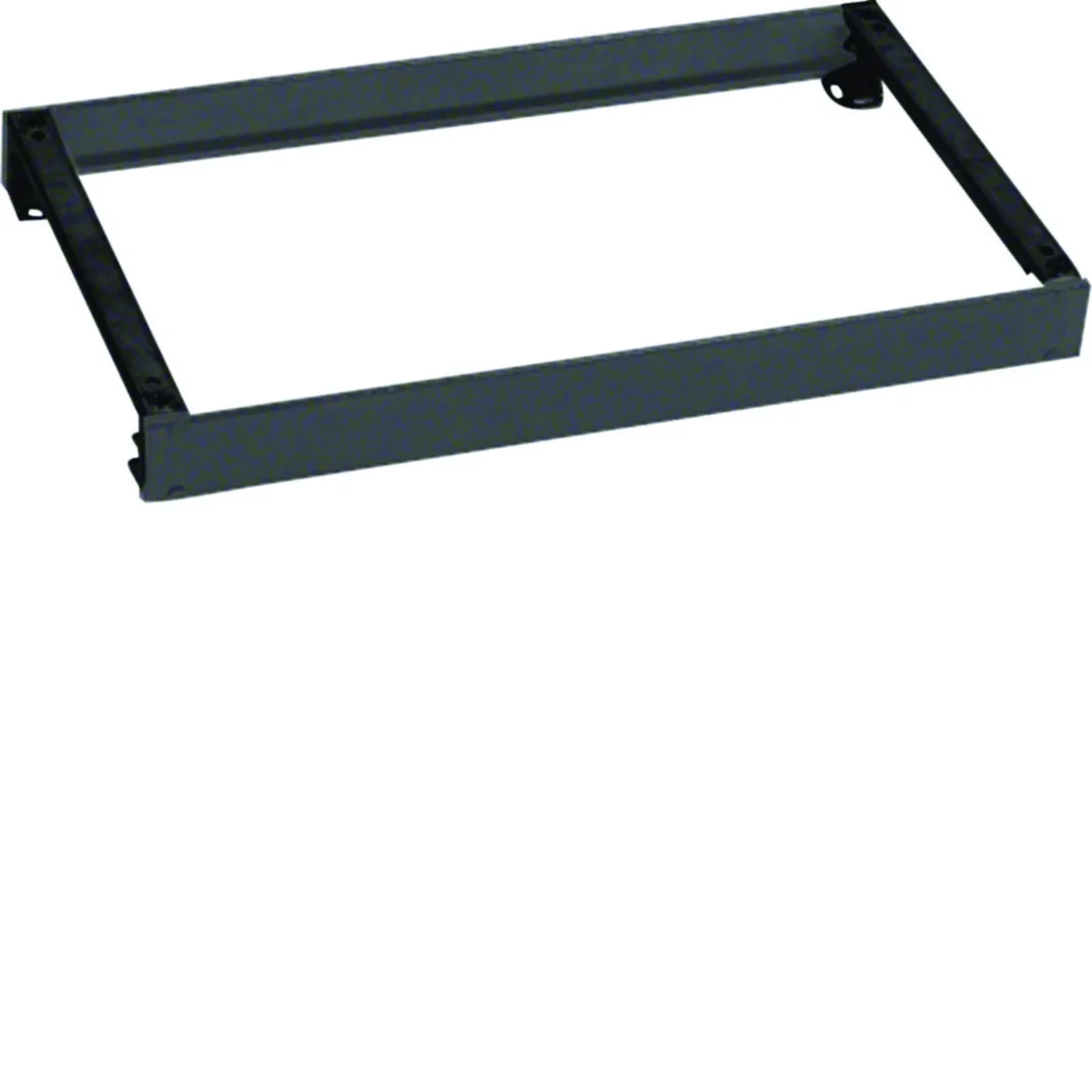

Plinth for floor-standing housing, without cable support rail, univers N HC series.

Series characteristics:

Cabinet systems are functional, not only as distribution switchgears (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Données techniques

  • Depth [mm]
    400
  • Material
    steel
  • Family
    UNIVERS
  • Width [mm]
    850
  • Surface finish
    Powder coated
  • Protection class
    AND
  • Fixing
    screwed
  • Level of security
    IP41
  • Height [mm]
    100
  • PKWIU
    27.12.40.0

Autres données techniques

  • Model
    Base complete
  • Colour
    Black
  • Impact strength
    IK10
  • Suitable for enclosure building width
    850 mm
  • Suitable for aeration/de-aeration
    No
  • Height
    100 mm
  • Material
    Steel
  • RAL-number (similar)
    9005
  • Max. load capacity
    2600 kg
  • Suitable for enclosure building depth
    400 mm
  • Width
    849 mm
  • Depth
    375 mm

Détails du fabricant

Emballage en vrac

Une sorte de paquet Karton Paleta Karton Paleta
Quantité 1 pcs. 10 pcs. 1 pcs. 10 pcs.
poids (kg) 6,930 95,300 6,930 95,300
Largeur (m) 0,370 0,800 0,370 0,800
Longueur (m) 0,100 0,680 0,100 0,680
Profondeur (m) 0,840 1,200 0,840 1,200
