UNIVERS Plinth for standing enclosure IP41 RAL9005 100x350x400mm FZ911WE

Name: UNIVERS Plinth for standing enclosure IP41 RAL9005 100x350x400mm
Brand: HAGER
SKU: RRR3P7HAGE
Price: 86.59 PLN

local index:

RRR3P7HAGE

Catalog No:

FZ911WE

EAN code:

7611919301381

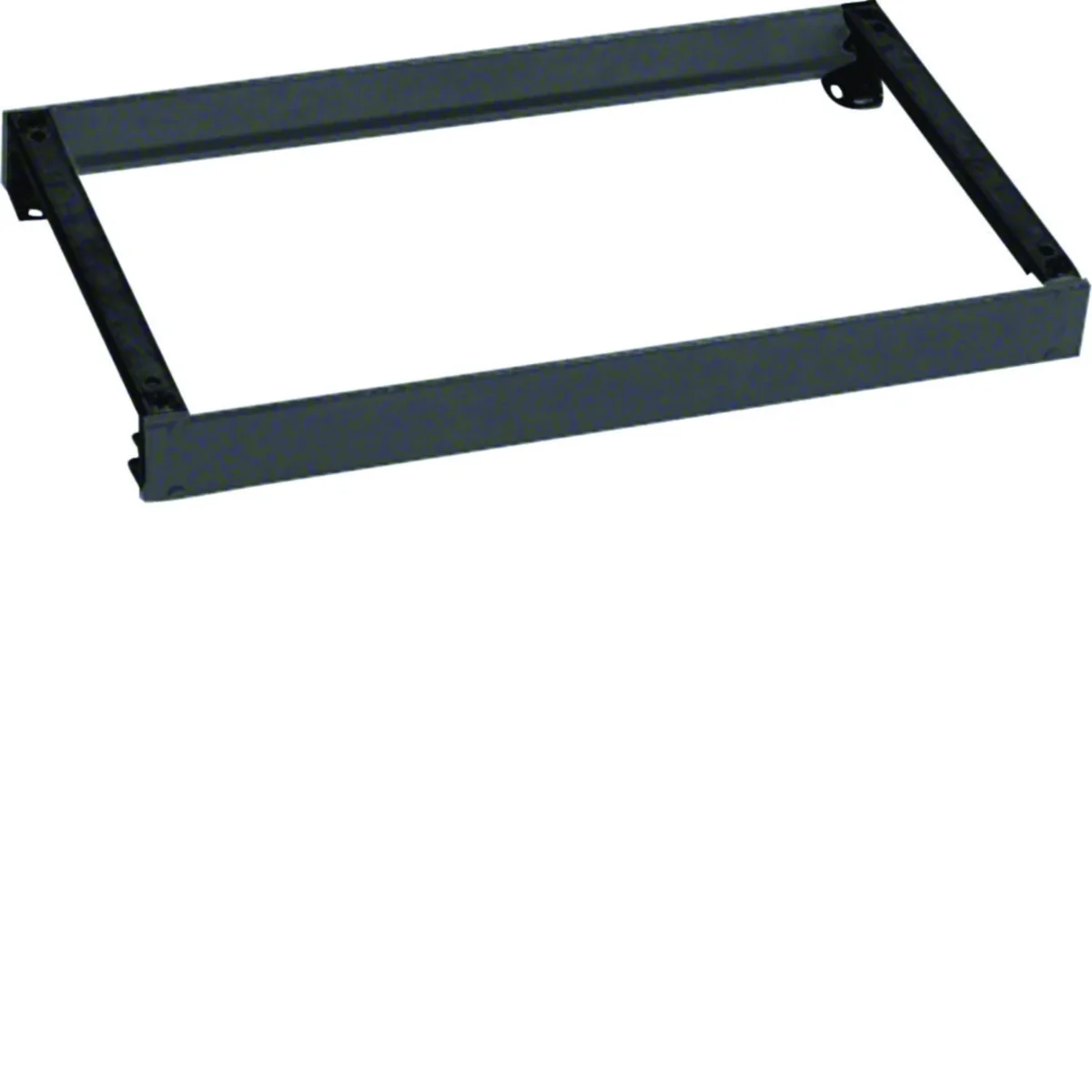

UNIVERS Plinth for standing enclosure IP41 RAL9005 100x350x400mm

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 400

Protection class: AND

Material: Galvanized steel sheet

See full description

Price:

86,59 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Plinth for floor-standing housing, without cable support rail, univers N HC series.

Series characteristics:

Cabinet systems are characterized by the functionality of installation, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

Depth [mm]

400
Material

Galvanized steel sheet
Family

UNIVERS
Width [mm]

350
Surface finish

Powder coated

Protection class

AND
Fixing

screwed
Level of security

IP41
Height [mm]

100
PKWIU

27.12.40.0

Other technical data

Model

Base complete
Colour

Black
Width

349 mm
Depth

375 mm
Suitable for enclosure building depth

400 mm
Suitable for outdoor set-up

No

Material

Steel
Max. load capacity

2600 kg
Height

100 mm
Suitable for enclosure building width

350 mm
Suitable for aeration/de-aeration

No

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	20 pcs.
Weight (kg)	4,749	4,750	95,000
Width (m)	0,349	0,105	0,800
Length (m)	0,100	0,350	1,050
Depth (m)	0,370	0,380	1,200
