UNIVERS N Sub-assembly for NH2-base 300x250mm UE21A9

local index:
RRR1R5HAGE
Catalog No:
UE21A9
EAN code:
3250616151314
Manufacturer: HAGER
Depth [mm]: 125
Color: White
Material: Plastic
Price:
170,18 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

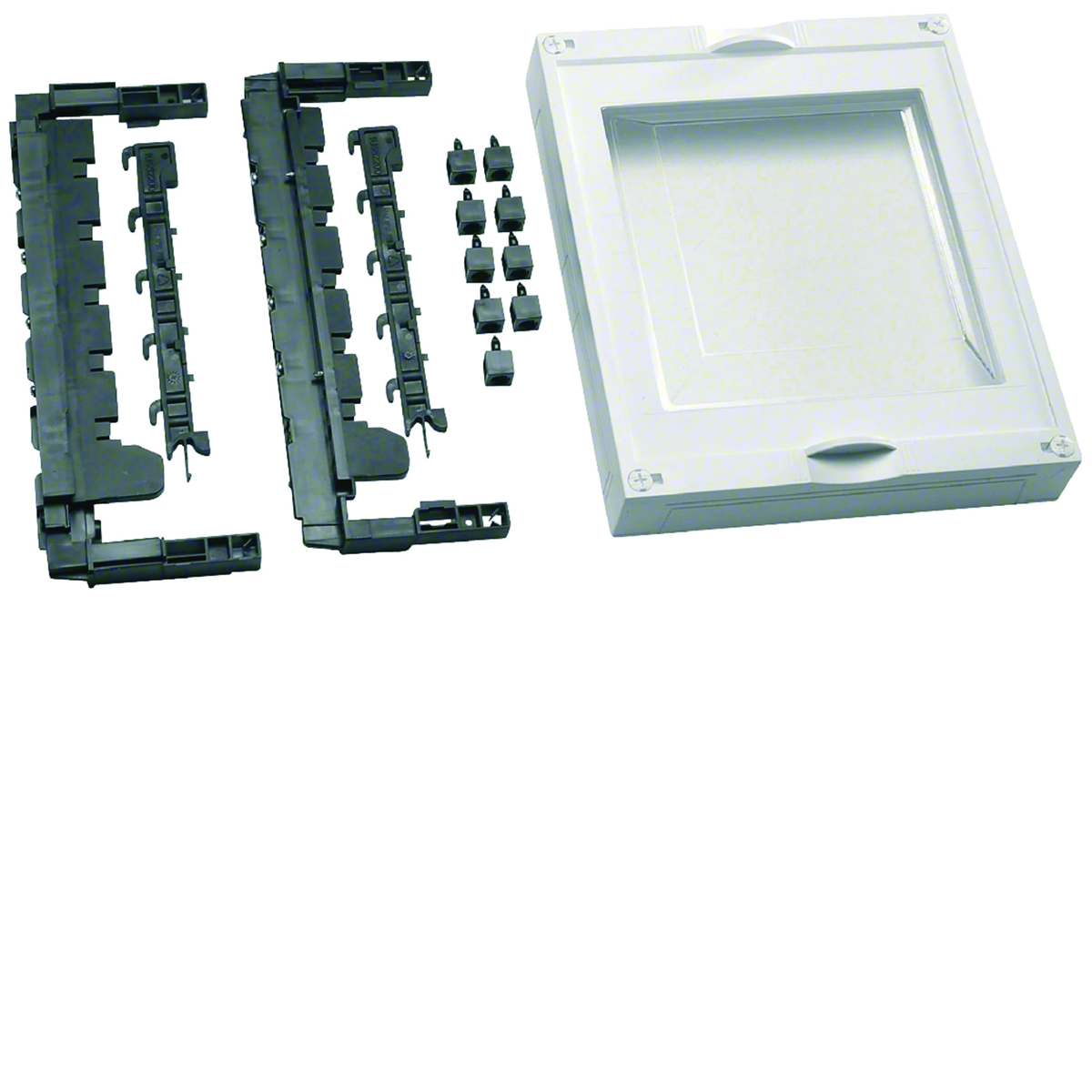

Sub-assembly with a cover, with transparent glass, with a support for busbars and bases NH00/NH1/NH2, from the univers N series, i.e. the switchgear building system.

Technical data

  • Depth [mm]
    125
  • Material
    Plastic
  • Width [mm]
    250
  • Number of sections
    1
  • Busbar width [mm]
    12
  • PKWIU
    27.12.40.0
  • Color
    White
  • Family
    UNIVERS N
  • Height [mm]
    300
  • The distance between the rails
    40mm
  • Busbar height [mm]
    5/10

Other technical data

  • Height
    300 mm
  • Depth
    125 mm
  • Plastic cover plate
    Yes
  • Suitable for switch disconnector
    No
  • Suitable for power circuit breaker
    No
  • Suitable for no-voltage switch
    No
  • Suitable for reverser
    No
  • Rated operation current
    355 A
  • With auxiliary terminal
    No
  • Width
    250 mm
  • With cover
    Yes
  • Number of poles
    5
  • Equipped with switch disconnector
    No
  • Equipped with power circuit-breaker
    No
  • Equipped with no-voltage switch
    No
  • Equipped with reverser
    No
  • Number of switches
    2

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 96 pcs.
Weight (kg) 0,839 0,850 104,600
Width (m) 0,250 0,265 0,800
Length (m) 0,300 0,065 1,050
Depth (m) 0,125 0,310 1,200
