UNIVERS N HC Set for NH2 switch disconnector for 60mm busbar system 450x250mm UC31T62

local index:
RRR3W7HAGE
Catalog No:
UC31T62
EAN code:
3250616370760
Manufacturer: HAGER
Depth [mm]: 0.01
Fixing: screwed
Family: UNIVERS NHC
Price:
58,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

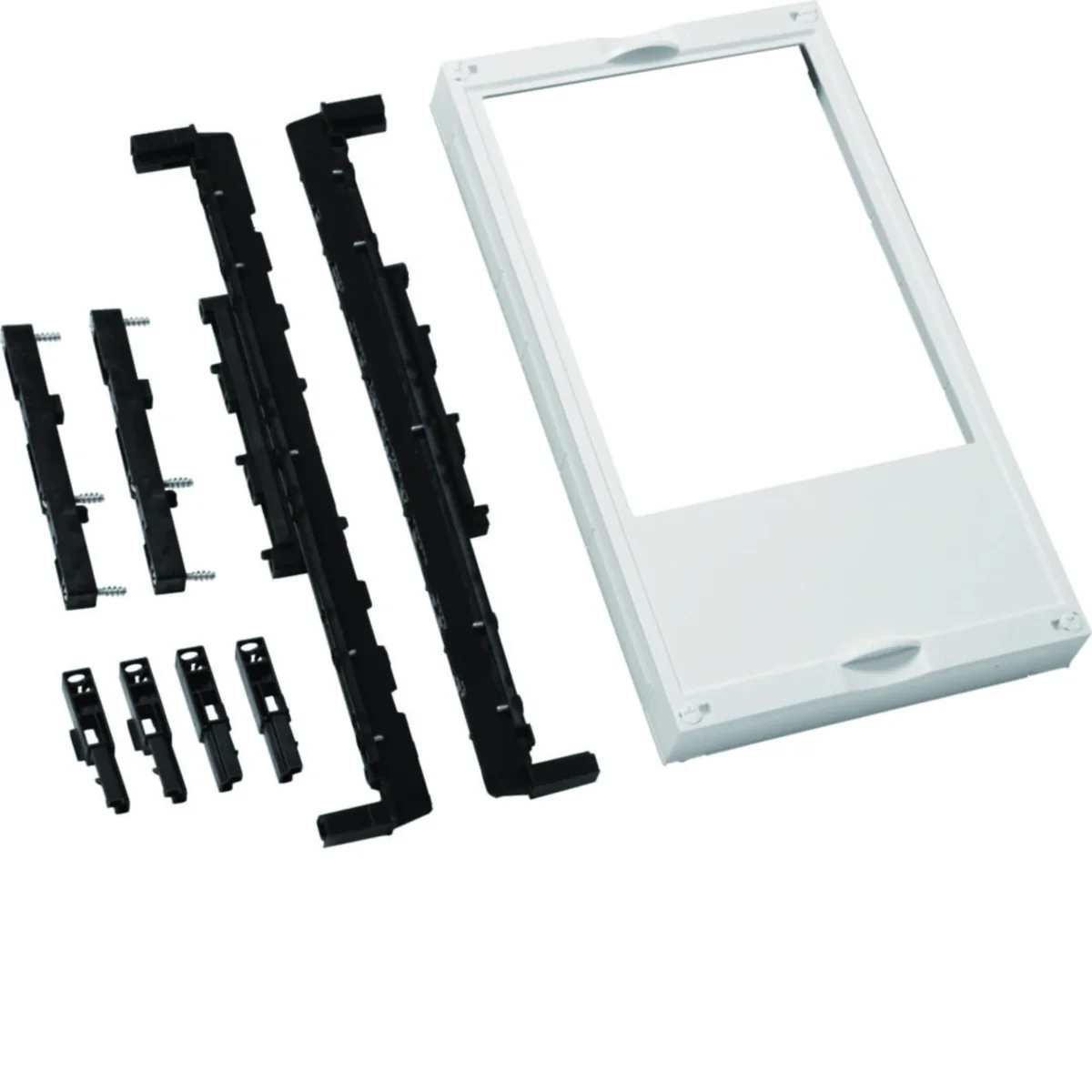

Kit for NH2 switch disconnector, for mounting on 60mm rails, without devices, univers N HC series, i.e. internal building system.

Technical data

  • Depth [mm]
    0.01
  • Family
    UNIVERS NHC
  • PKWIU
    27.33.13.0
  • Fixing
    screwed
  • Width [mm]
    1

Other technical data

  • Height
    450 mm
  • Depth
    125 mm
  • Plastic cover plate
    Yes
  • Suitable for switch disconnector
    No
  • Suitable for power circuit breaker
    No
  • Suitable for no-voltage switch
    No
  • Suitable for reverser
    No
  • Rated operation current
    630 A
  • With auxiliary terminal
    No
  • Width
    250 mm
  • With cover
    Yes
  • Number of poles
    3
  • Equipped with switch disconnector
    No
  • Equipped with power circuit-breaker
    No
  • Equipped with no-voltage switch
    No
  • Equipped with reverser
    No
  • Number of switches
    1

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 60 pcs.
Weight (kg) 1,099 1,100 72,000
Width (m) 0,265 0,265 0,800
Length (m) 0,065 0,065 0,700
Depth (m) 0,460 0,460 1,200
