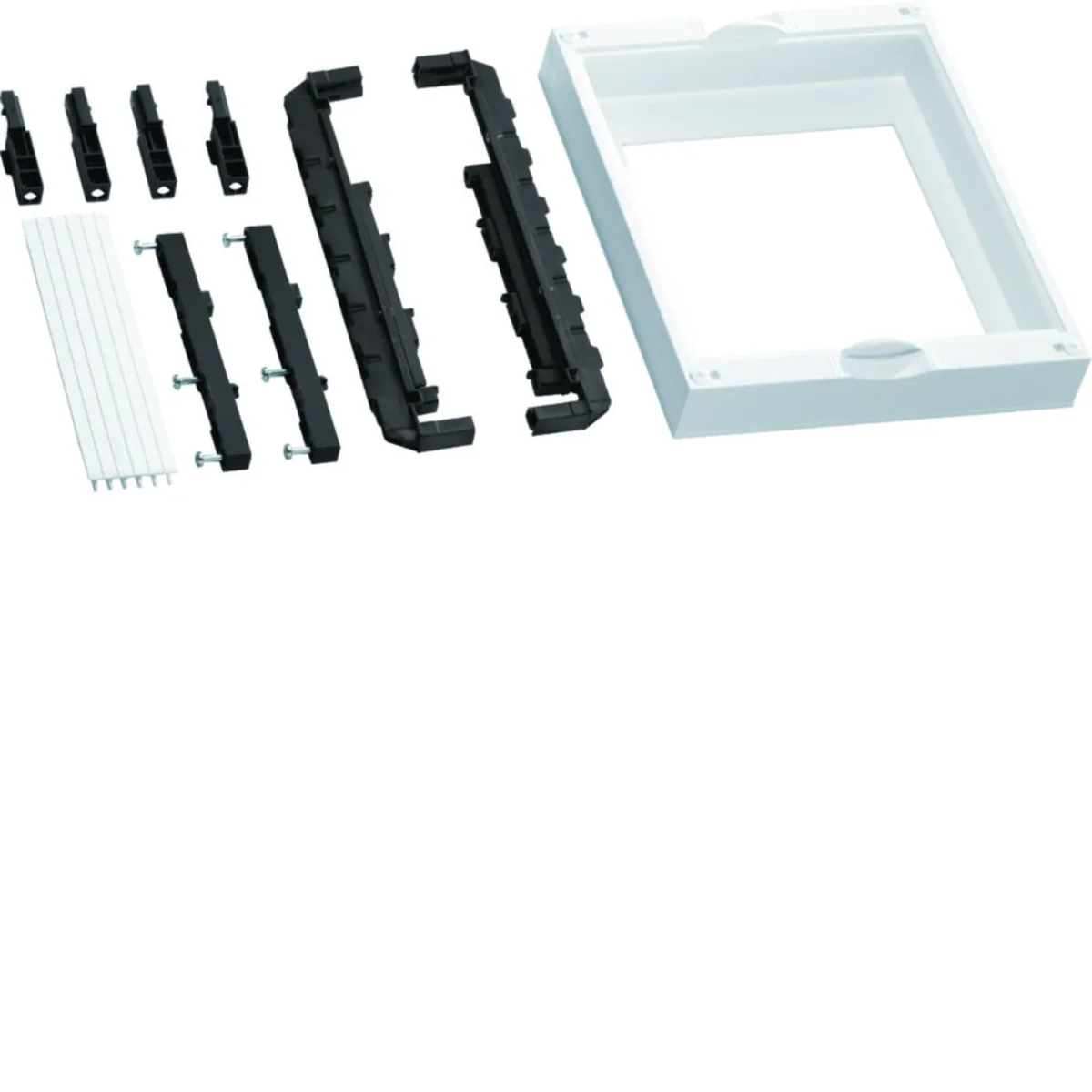

UNIVERS N HC Set for D-type sockets for 60mm rail system 300x250mm UC21D6

local index:
RRR3T9HAGE
Catalog No:
UC21D6
EAN code:
3250616370692
Manufacturer: HAGER
Depth [mm]: 300
Material: Polyamide
Family: UNIVERS NHC
Price:
65,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

A set for D-type sockets, for a 60mm rail system, from the univers N HC series, i.e. an internal building system.

Technical data

  • Depth [mm]
    300
  • Family
    UNIVERS NHC
  • Height [mm]
    300
  • Busbar height [mm]
    12/30
  • Material
    Polyamide
  • Width [mm]
    250
  • Busbar width [mm]
    43378
  • PKWIU
    27.33.13.0

Other technical data

  • Height
    300 mm
  • Depth
    125 mm
  • Busbar distance
    60 mm
  • Busbar thickness
    5 mm
  • Width
    250 mm
  • Number of poles
    3
  • Busbar height
    12 mm
  • Max. rated current
    630 A

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 96 pcs.
Weight (kg) 0,940 0,950 116,200
Width (m) 0,310 0,310 0,800
Length (m) 0,085 0,085 0,690
Depth (m) 0,260 0,260 1,200
