UNIVERS N HC Set for 6xNH1-3 switch disconnectors, spacing 185 top/bottom 900x750mm UC63L83M

Name: UNIVERS N HC Set for 6xNH1-3 switch disconnectors, spacing 185 top/bottom 900x750mm
Brand: HAGER
SKU: RRR3Z9HAGE
Price: 2164.41 PLN
Availability: BackOrder

local index:

RRR3Z9HAGE

Catalog number:

UC63L83M

EAN code:

3250616373372

UNIVERS N HC Set for 6xNH1-3 switch disconnectors, spacing 185 top/bottom 900x750mm

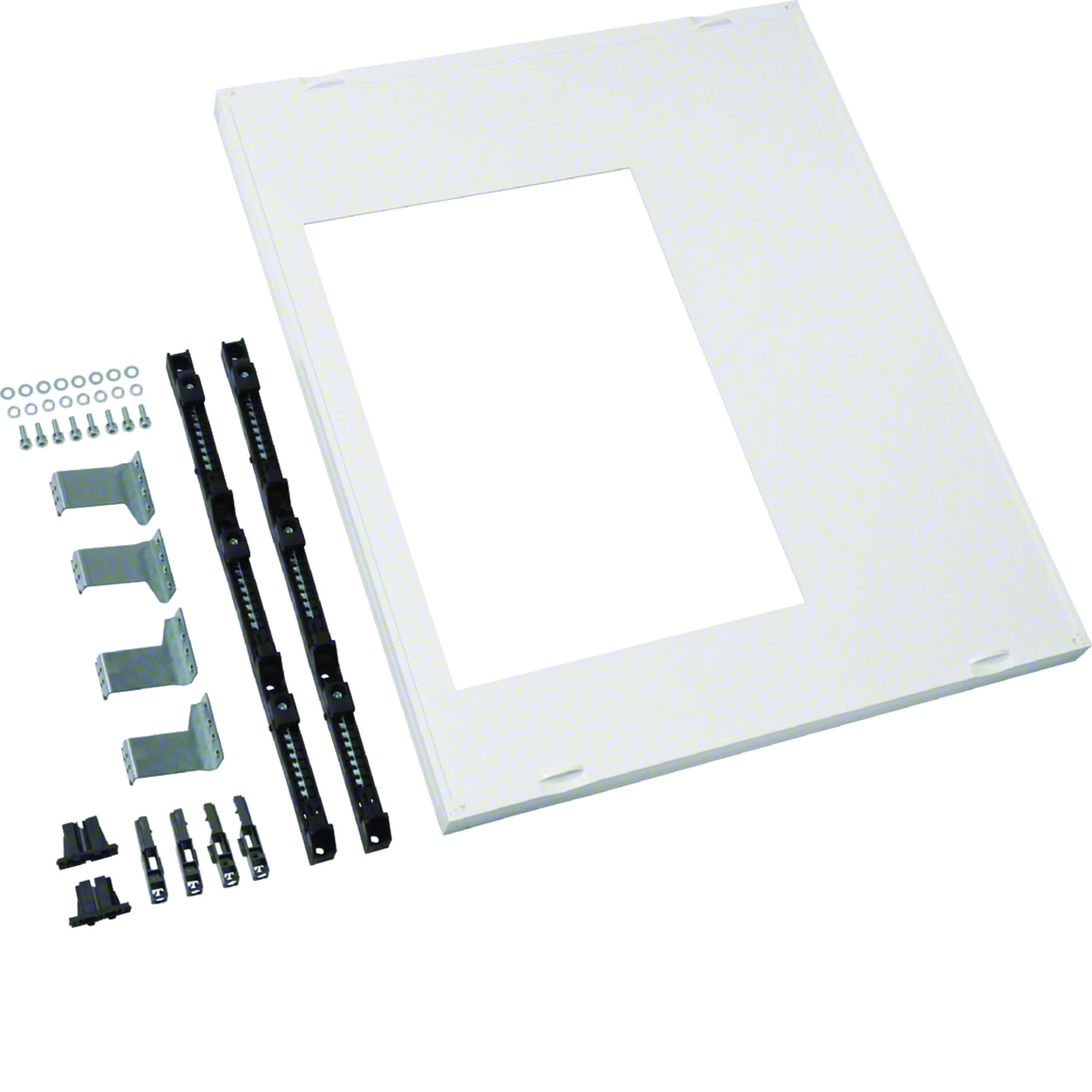

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 115

Fixing: screwed

Family: UNIVERS NHC

See full description

Price:

2 164,41 zł

gross / pcs.

(including VAT 23%)

up to 10 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Set for 6 NH1-3 strip-type disconnectors, for mounting on 185mm rails, top/bottom, without devices, univers N HC series, i.e. internal building system.

Technical data

Depth [mm]

115
Family

UNIVERS NHC
Height [mm]

900
Busbar width [mm]

10
PKWIU

27.12.40.0

Fixing

screwed
Width [mm]

750
The distance between the rails

185mm
Busbar height [mm]

30/100

Other technical data

Number of poles

3
Rated current

1600 A
Construction size

Other
Width

750 mm

Number of knife blade fuse holders

0
Mounting method

Busbar system
Height

900 mm
Depth

175 mm

Manufacturer details

Manufacturer

Hager Electro GmbH & Co KG
Address

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Paleta	Karton	Paleta
Quantity	1 pcs.	12 pcs.	1 pcs.	12 pcs.
Weight (kg)	4,795	82,540	4,795	82,540
Width (m)	0,820	0,820	0,820	0,820
Length (m)	0,060	1,050	0,060	1,050
Depth (m)	0,910	1,200	0,910	1,200
