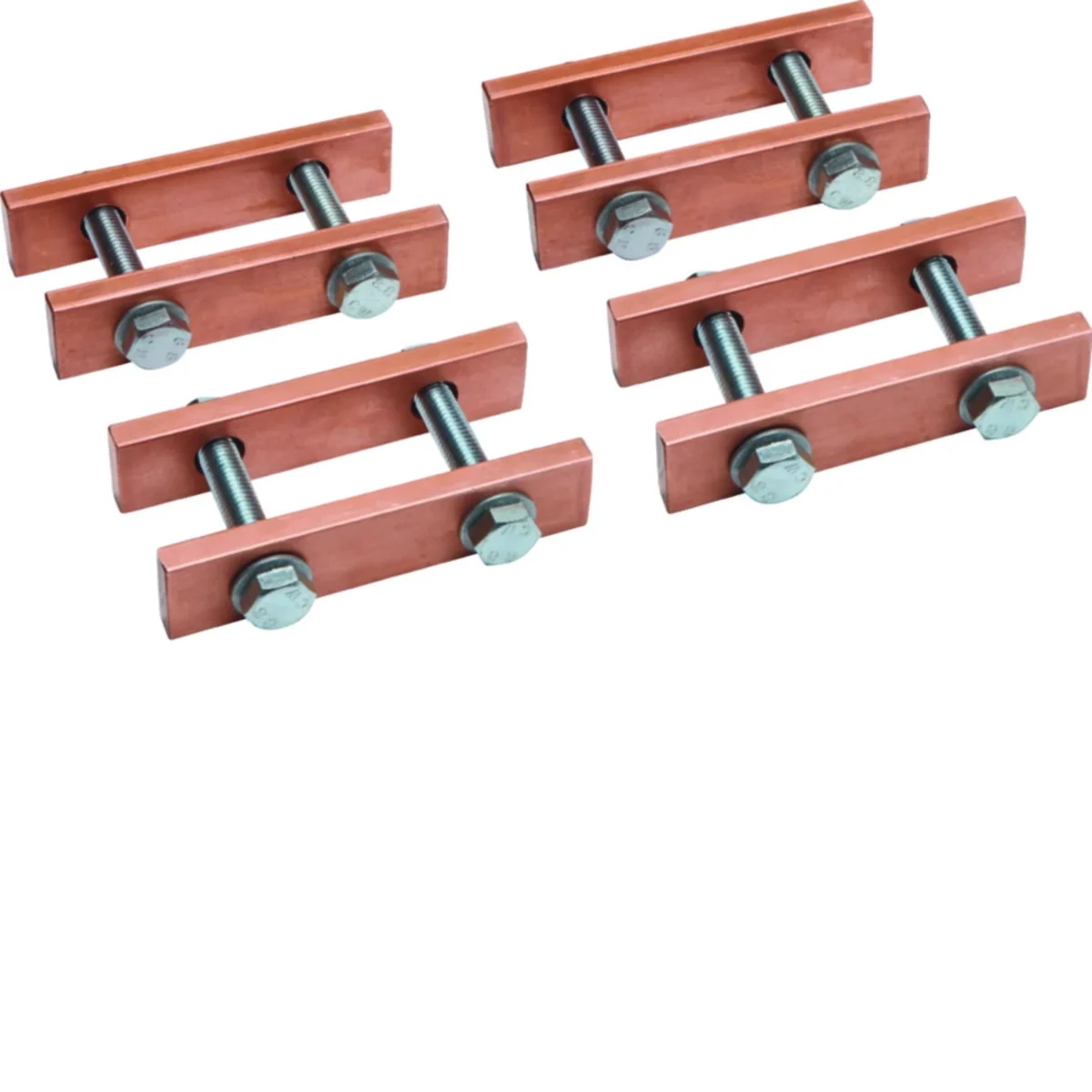

UNIVERS N HC Busbar connector UST4 4-pole UST4VS3

local index:
RRR4A1HAGE
Catalog No:
UST4VS3
EAN code:
3250616371354
Manufacturer: HAGER
Number of poles: 4P
Rated current [A]: 1250
Family: UNIVERS NHC
Price:
236,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switch for UST4 busbars, four-pole, univers N HC series, i.e. internal building system. Maximum cable section: 300mm².

Technical data

  • Number of poles
    4P
  • Family
    UNIVERS NHC
  • Height [mm]
    thirty
  • Busbar width [mm]
    130
  • PKWIU
    27.12.40.0
  • Rated current [A]
    1250
  • Width [mm]
    130
  • The distance between the rails
    50mm
  • Busbar height [mm]
    thirty

Other technical data

  • Number of poles
    4
  • Rated current
    1250 A

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 100 pcs.
Weight (kg) 3,250 3,720 397,000
Width (m) 0,095 0,095 0,800
Length (m) 0,098 0,065 0,420
Depth (m) 0,141 0,255 1,200
