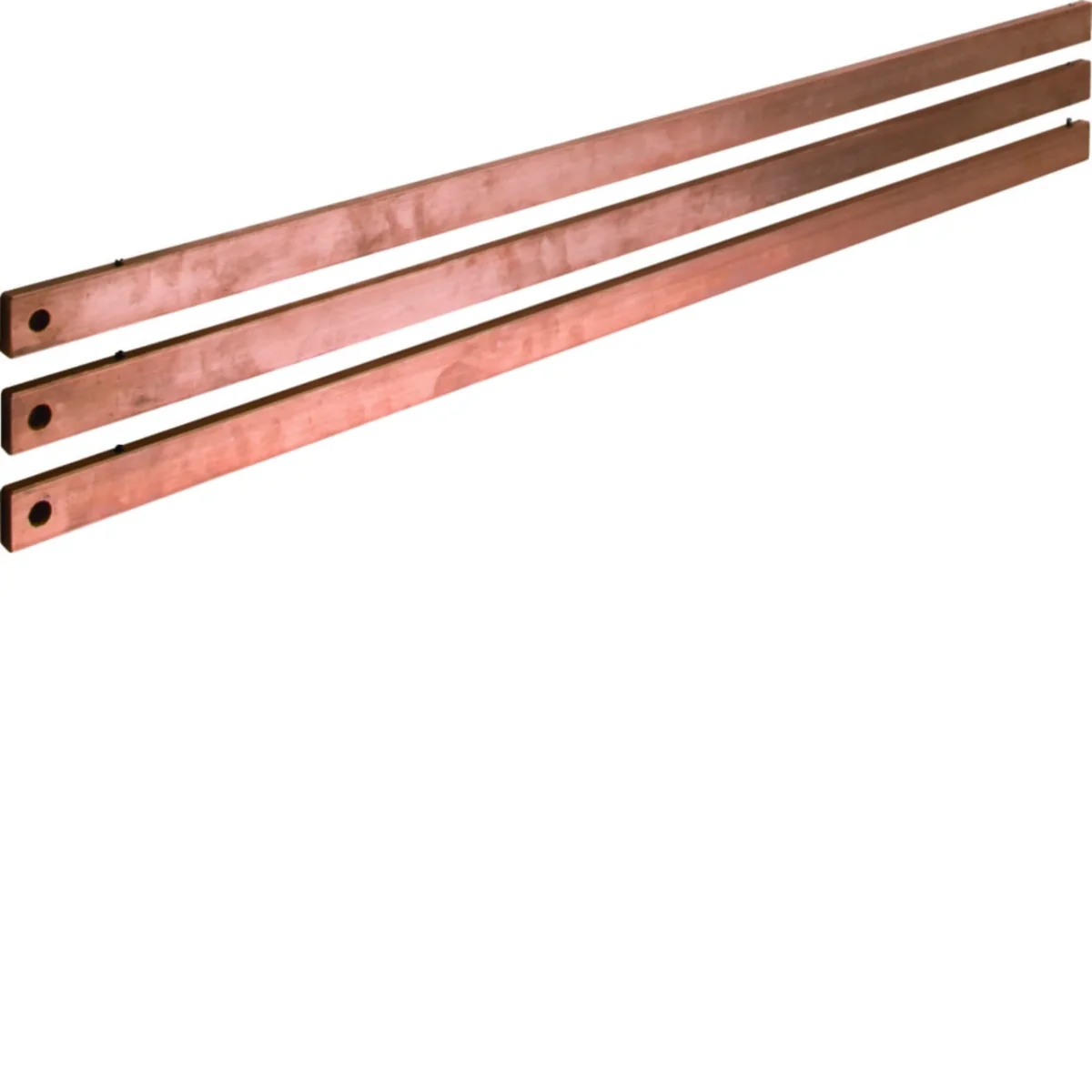

UNIVERS N Cu vertical busbar for NH00 30x10mm 850mm switch disconnectors UM14L1N

local index:
RPU081HAGE
Catalog No:
UM14L1N
EAN code:
3250616231221
Manufacturer: HAGER
Length [mm]: 850
Depth [mm]: 10
Material: Copper
Price:
350,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Vertical rail for NH00 strip-type disconnectors, univers N series, i.e. switchgear enclosure system.

Technical data

  • Length [mm]
    850
  • Material
    Copper
  • Family
    UNIVERS N
  • Height [mm]
    thirty
  • Busbar width [mm]
    thirty
  • Coverage
    Tin plated
  • Depth [mm]
    10
  • Rated current [A]
    630
  • Width [mm]
    850
  • Number of sections
    2
  • Busbar height [mm]
    10
  • PKWIU
    24.44.22.0

Other technical data

  • Rated current In
    630 A
  • Surface protection
    Other

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 50 pcs.
Weight (kg) 2,339 7,120 117,000
Width (m) 0,900 0,045 0,800
Length (m) 0,030 0,030 0,450
Depth (m) 0,010 0,890 1,200
