UNIVERS N Cu horizontal busbar for NH1/2/3 6-pole 40x10mm 1440mm switch disconnectors UM10M

Name: UNIVERS N Cu horizontal busbar for NH1/2/3 6-pole 40x10mm 1440mm switch disconnectors
Brand: HAGER
SKU: RPU080HAGE
Price: 500.49 PLN

local index:

RPU080HAGE

Catalog No:

UM10M

EAN code:

3250616230835

UNIVERS N Cu horizontal busbar for NH1/2/3 6-pole 40x10mm 1440mm switch disconnectors

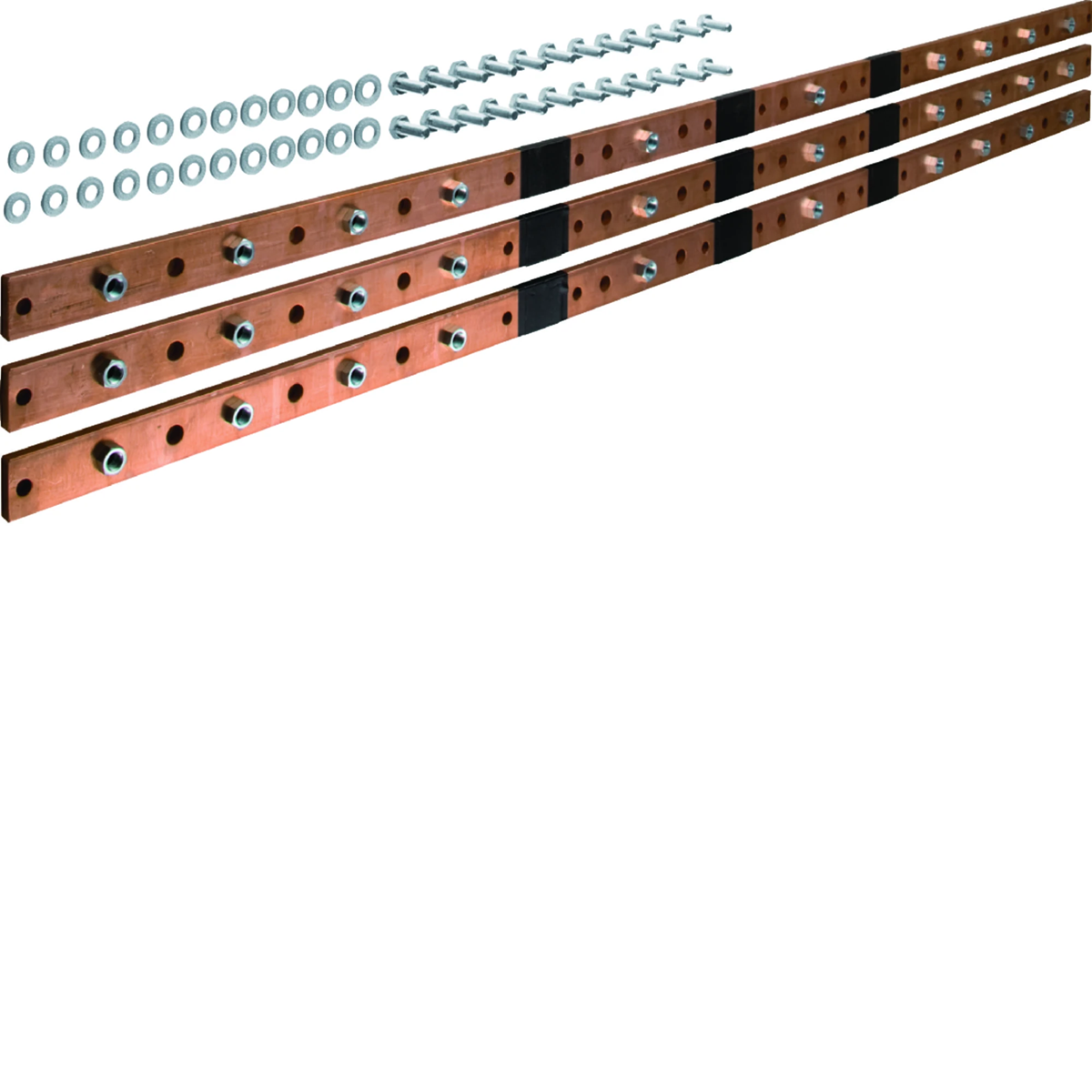

Click on the photo to enlarge

Manufacturer: HAGER

Length [mm]: 1440

Depth [mm]: 10

Material: Copper

See full description

Large-size product

Price:

500,49 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Horizontal rail for NH1/2/3 6-pole switch disconnectors, univers N series, i.e. the switchgear enclosure system.

Technical data

Length [mm]

1440
Material

Copper
Family

UNIVERS N
Height [mm]

40
Busbar width [mm]

40
Coverage

Tin plated

Depth [mm]

10
Rated current [A]

800
Width [mm]

1495
Number of sections

6
Busbar height [mm]

10
PKWIU

24.44.22.0

Other technical data

Rated current In

800 A

Surface protection

Other

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
Tax identification number

6460015532

Bulk packaging

A kind of package	Karton	Paleta
Quantity	1 pcs.	20 pcs.
Weight (kg)	15,500	305,000
Width (m)	0,090	0,800
Length (m)	0,070	0,430
Depth (m)	1,470	1,470
