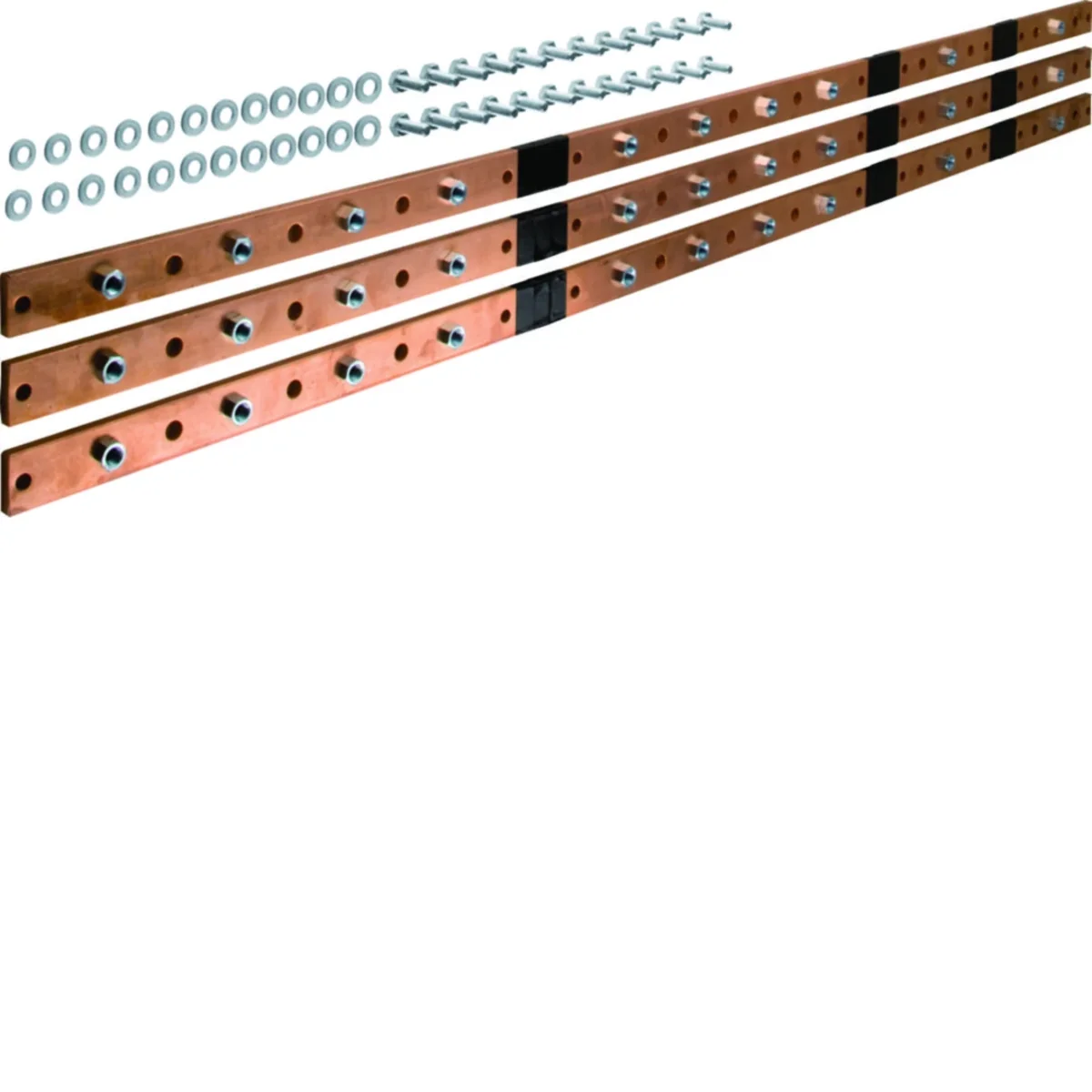

UNIVERS N Cu horizontal busbar for NH1/2/3 6-pole 40x10mm 1440mm switch disconnectors UM10K

local index:
RPU079HAGE
Catalog No:
UM10K
EAN code:
3250616230828
Manufacturer: HAGER
Length [mm]: 1440
Depth [mm]: 10
Material: Copper
Large-size product
Price:
1116,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Horizontal rail for NH1/2/3 6-pole switch disconnectors, univers N series, i.e. the switchgear enclosure system.

Technical data

  • Length [mm]
    1440
  • Material
    Copper
  • Family
    UNIVERS N
  • Height [mm]
    40
  • Busbar width [mm]
    40
  • Coverage
    Tin plated
  • Depth [mm]
    10
  • Rated current [A]
    800
  • Width [mm]
    1495
  • Number of sections
    6
  • Busbar height [mm]
    10
  • PKWIU
    24.44.22.0

Other technical data

  • Rated current In
    800 A
  • Surface protection
    Other

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 25 pcs. 1 pcs.
Weight (kg) 15,600 393,675 14,747
Width (m) 2,000 0,800 1,495
Length (m) 0,060 0,420 0,040
Depth (m) 0,060 2,000 0,010
