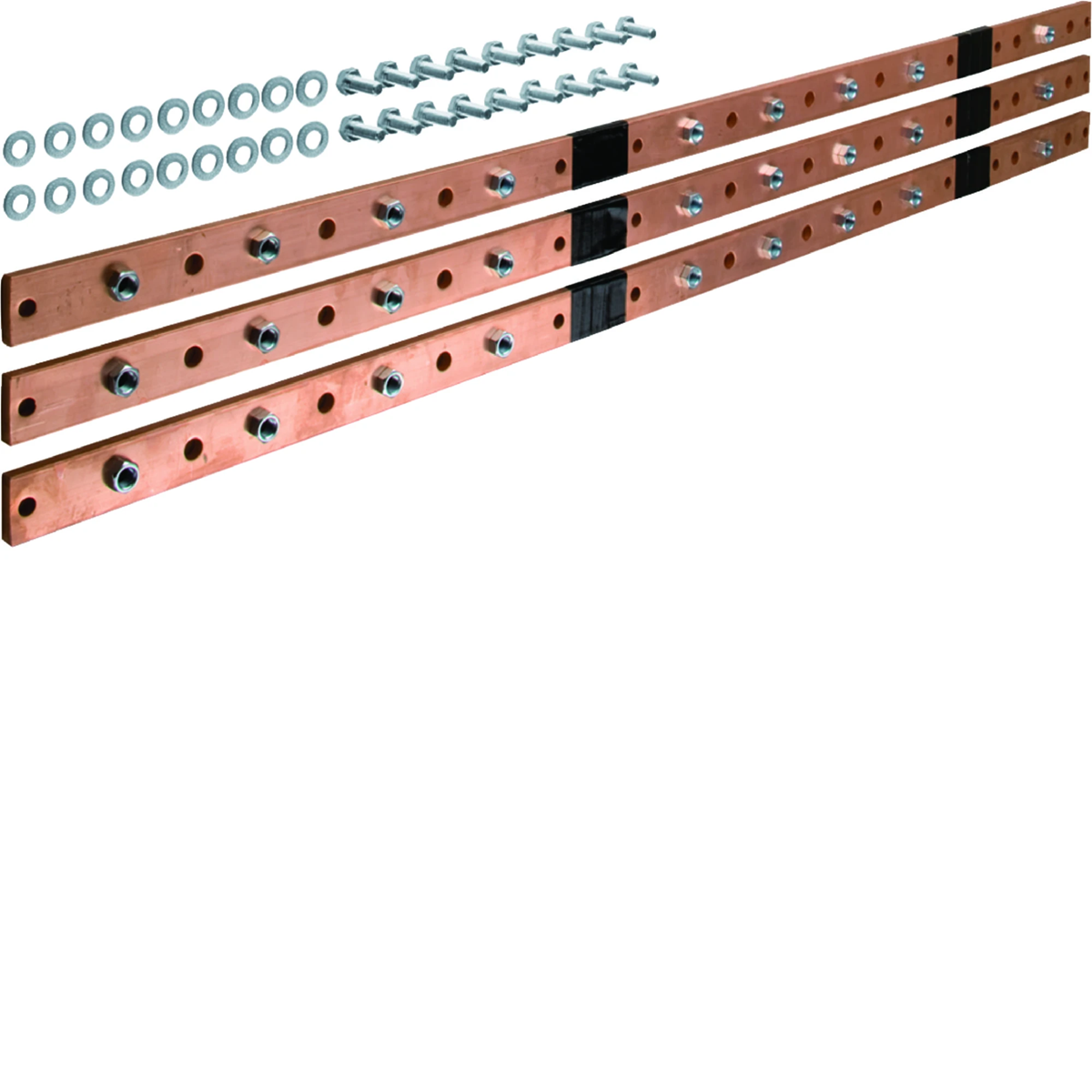

UNIVERS N Cu horizontal busbar for NH1/2/3 5-pole switch disconnectors 40x10mm 1190mm UM09M

local index:
RPU078HAGE
Catalog No:
UM09M
EAN code:
3250616230767
Manufacturer: HAGER
Length [mm]: 1190
Depth [mm]: 10
Material: Copper
Large-size product
Price:
396,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Horizontal rail for NH1/2/3 5-pole switch disconnectors, univers N series, i.e. the switchgear enclosure system.

Technical data

  • Length [mm]
    1190
  • Material
    Copper
  • Family
    UNIVERS N
  • Height [mm]
    40
  • Busbar width [mm]
    40
  • Coverage
    Tin plated
  • Depth [mm]
    10
  • Rated current [A]
    1000
  • Width [mm]
    1245
  • Number of sections
    5
  • Busbar height [mm]
    10
  • PKWIU
    24.44.22.0

Other technical data

  • Rated current In
    1000 A
  • Surface protection
    Other

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 40 pcs.
Weight (kg) 12,659 12,660 530,000
Width (m) 1,245 0,050 0,800
Length (m) 0,040 0,040 0,450
Depth (m) 0,010 1,190 1,200
