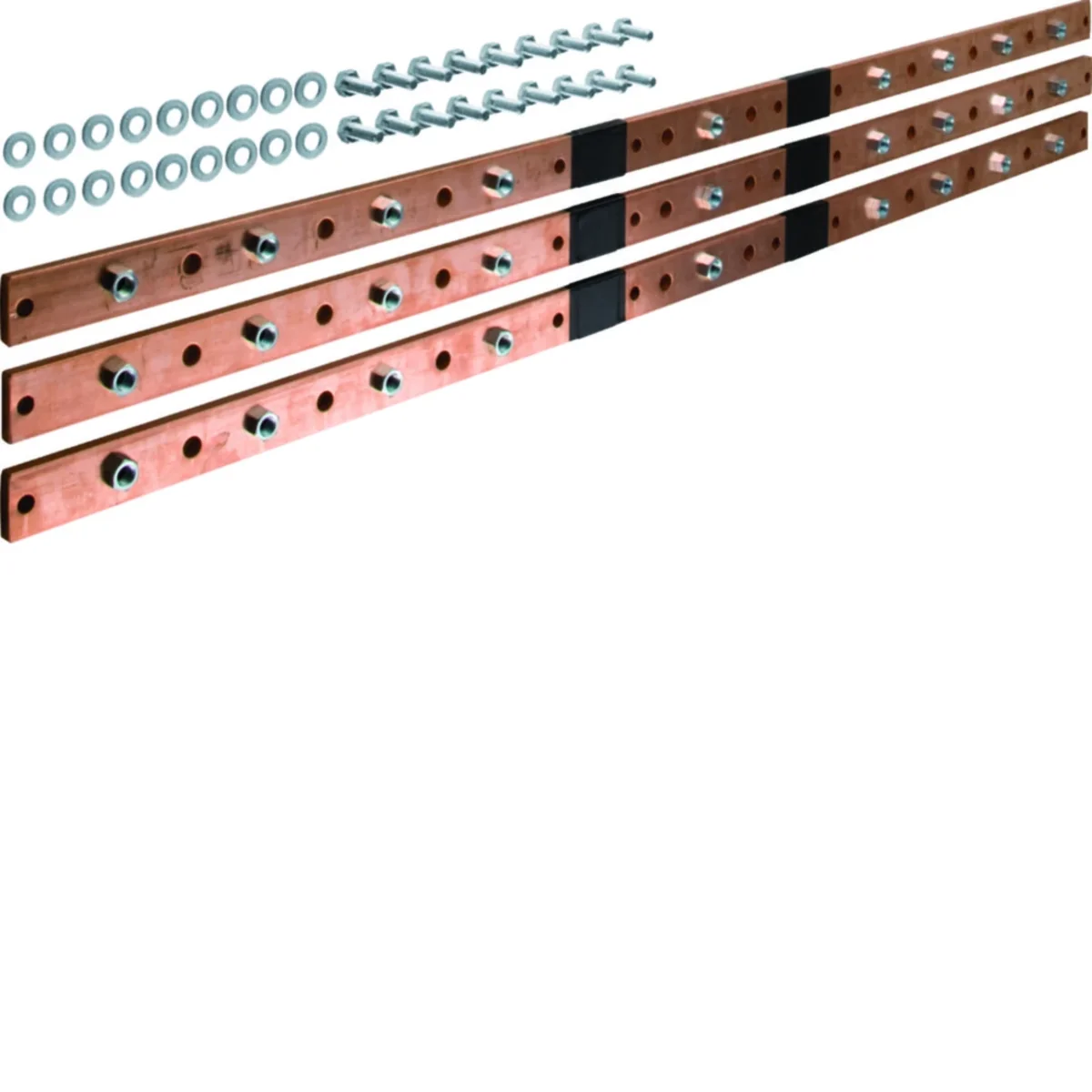

UNIVERS N Cu horizontal busbar for NH1/2/3 5-pole 40x10mm 1245mm switch disconnectors UM09K

local index:
RPU077HAGE
Catalog No:
UM09K
EAN code:
3250616230774
Manufacturer: HAGER
Length [mm]: 1245
Depth [mm]: 10
Material: Copper
Large-size product
Price:
390,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Horizontal rail for NH1/2/3 5-pole switch disconnectors, univers N series, i.e. the switchgear enclosure system.

Technical data

  • Length [mm]
    1245
  • Material
    Copper
  • Family
    UNIVERS N
  • Height [mm]
    40
  • Busbar width [mm]
    40
  • Coverage
    Tin plated
  • Depth [mm]
    10
  • Rated current [A]
    800
  • Width [mm]
    1245
  • Number of sections
    5
  • Busbar height [mm]
    10
  • PKWIU
    24.44.22.0

Other technical data

  • Rated current In
    800 A
  • Surface protection
    Other

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 40 pcs.
Weight (kg) 0,012 12,900 539,000
Width (m) 1,245 0,070 0,800
Length (m) 0,040 0,040 0,690
Depth (m) 0,010 1,200 1,200
