UNIVERS N Busbar block 4P Cu 25x6mm 4x400A 300x250mm UE21D3

local index:
RRR1R8HAGE
Catalog No:
UE21D3
EAN code:
3250616150577
Manufacturer: HAGER
Depth [mm]: 110
Color: White
Number of poles: 4P
Price:
406,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

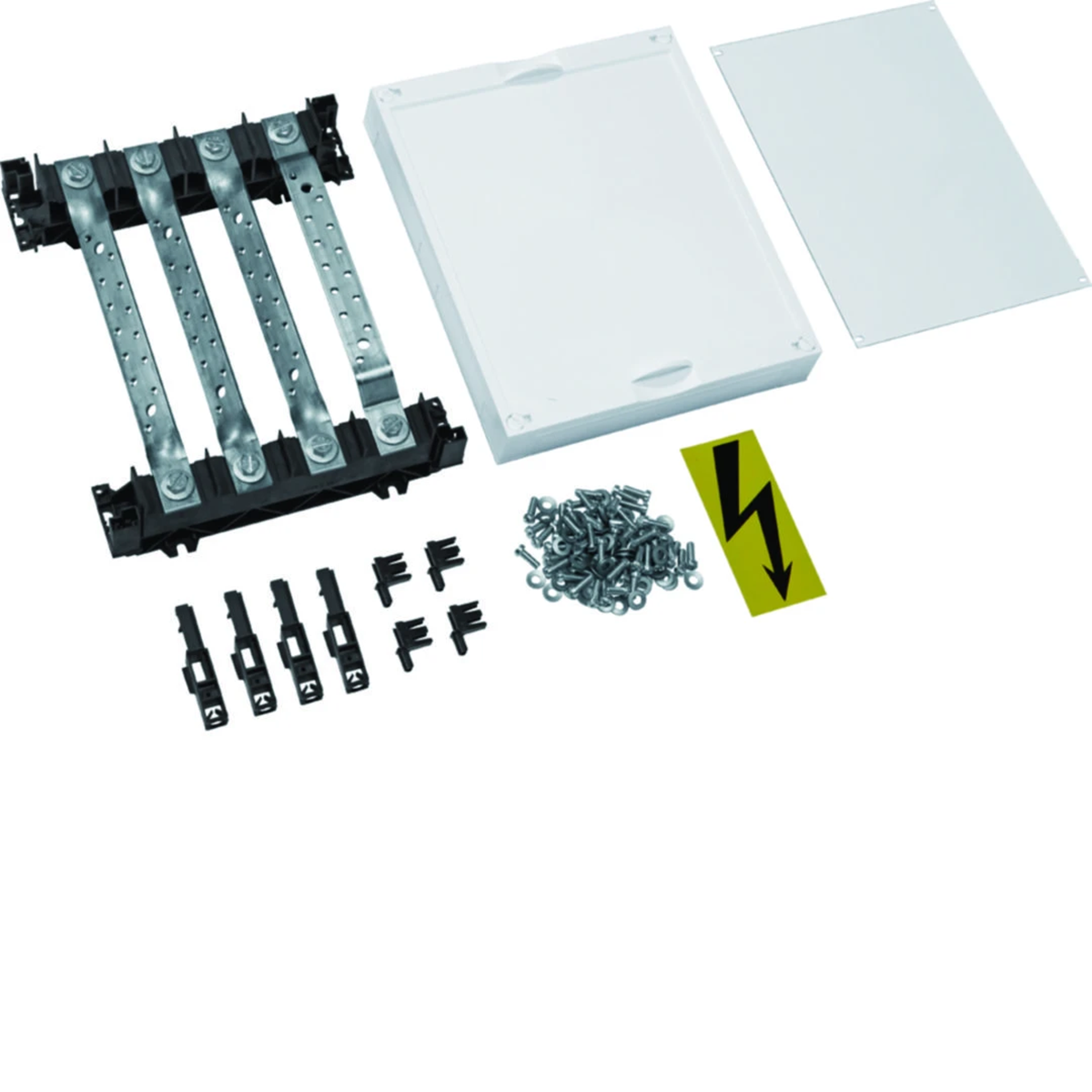

Sub-assembly/Block with a full cover, with busbars, from the univers N series, i.e. the switchgear enclosure system.

Technical data

  • Depth [mm]
    110
  • Number of poles
    4P
  • Fixing
    rail system
  • Family
    UNIVERS N
  • Height [mm]
    300
  • The distance between the rails
    40mm
  • Busbar height [mm]
    6
  • Color
    White
  • Material
    Plastic
  • Rated current [A]
    400
  • Width [mm]
    250
  • Number of sections
    1
  • Busbar width [mm]
    25
  • PKWIU
    27.12.40.0

Other technical data

  • Height
    300 mm
  • Depth
    110 mm
  • Busbar distance
    40 mm
  • Busbar thickness
    25 mm
  • Width
    250 mm
  • Number of poles
    4
  • Busbar height
    6 mm
  • Max. rated current
    400 A

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 96 pcs.
Weight (kg) 3,239 3,260 337,960
Width (m) 0,120 0,266 0,800
Length (m) 0,265 0,122 1,070
Depth (m) 0,305 0,310 1,228
