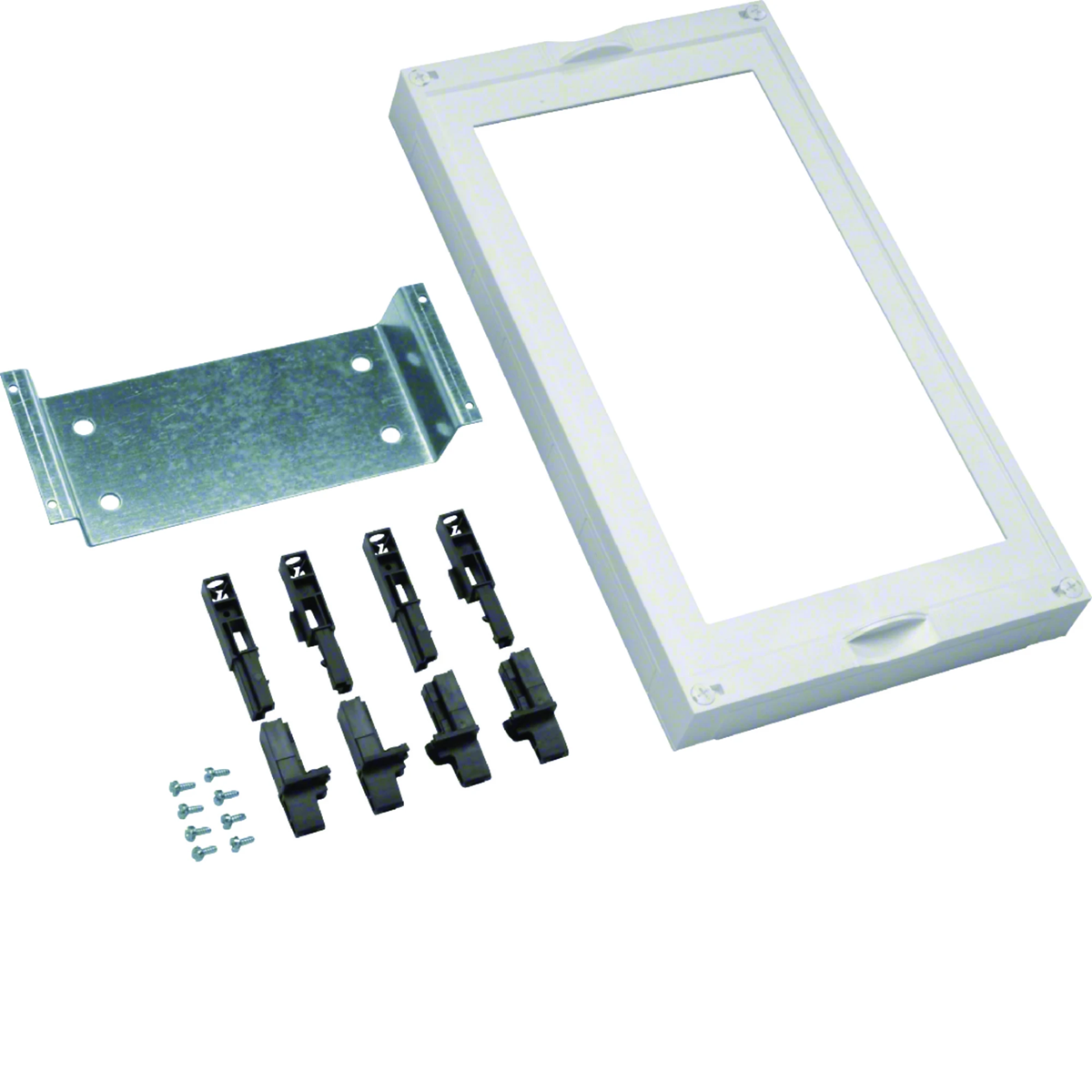

UNIVERS N Block with mounting plate for NH00/1/2 with transparent glass 450x250mm UD31E1N

local index:
RRR1P2HAGE
Catalog No:
UD31E1N
EAN code:
3250616143050
Manufacturer: HAGER
Depth [mm]: 125
Color: White
Material: Plastic
Price:
133,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Block with mounting plate for NH00/1/2 with transparent glass, from the univers N series, i.e. the switchgear building system.

Technical data

  • Depth [mm]
    125
  • Material
    Plastic
  • Family
    UNIVERS N
  • Height [mm]
    450
  • PKWIU
    27.12.40.0
  • Color
    White
  • Fixing
    screwed
  • Width [mm]
    250
  • Number of sections
    1

Other technical data

  • Height
    450 mm
  • Depth
    125 mm
  • Plastic cover plate
    Yes
  • Equipped with switch disconnector
    No
  • Equipped with power circuit-breaker
    No
  • Equipped with no-voltage switch
    No
  • Equipped with reverser
    No
  • Number of switches
    1
  • Width
    250 mm
  • With cover
    Yes
  • Suitable for switch disconnector
    No
  • Suitable for power circuit breaker
    No
  • Suitable for no-voltage switch
    No
  • Suitable for reverser
    No
  • Rated operation current
    250 A
  • With auxiliary terminal
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 60 pcs.
Weight (kg) 1,199 1,200 97,000
Width (m) 0,460 0,260 0,800
Length (m) 0,260 0,100 0,780
Depth (m) 0,070 0,455 1,200
