UNIVERS N Block with horizontal busbars 4P 300x500mm Cu 30x10mm UE22D5
local index:
RRR1S6HAGE
Catalog No:
UE22D5
EAN code:
3250616151475
Price:
385,69 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

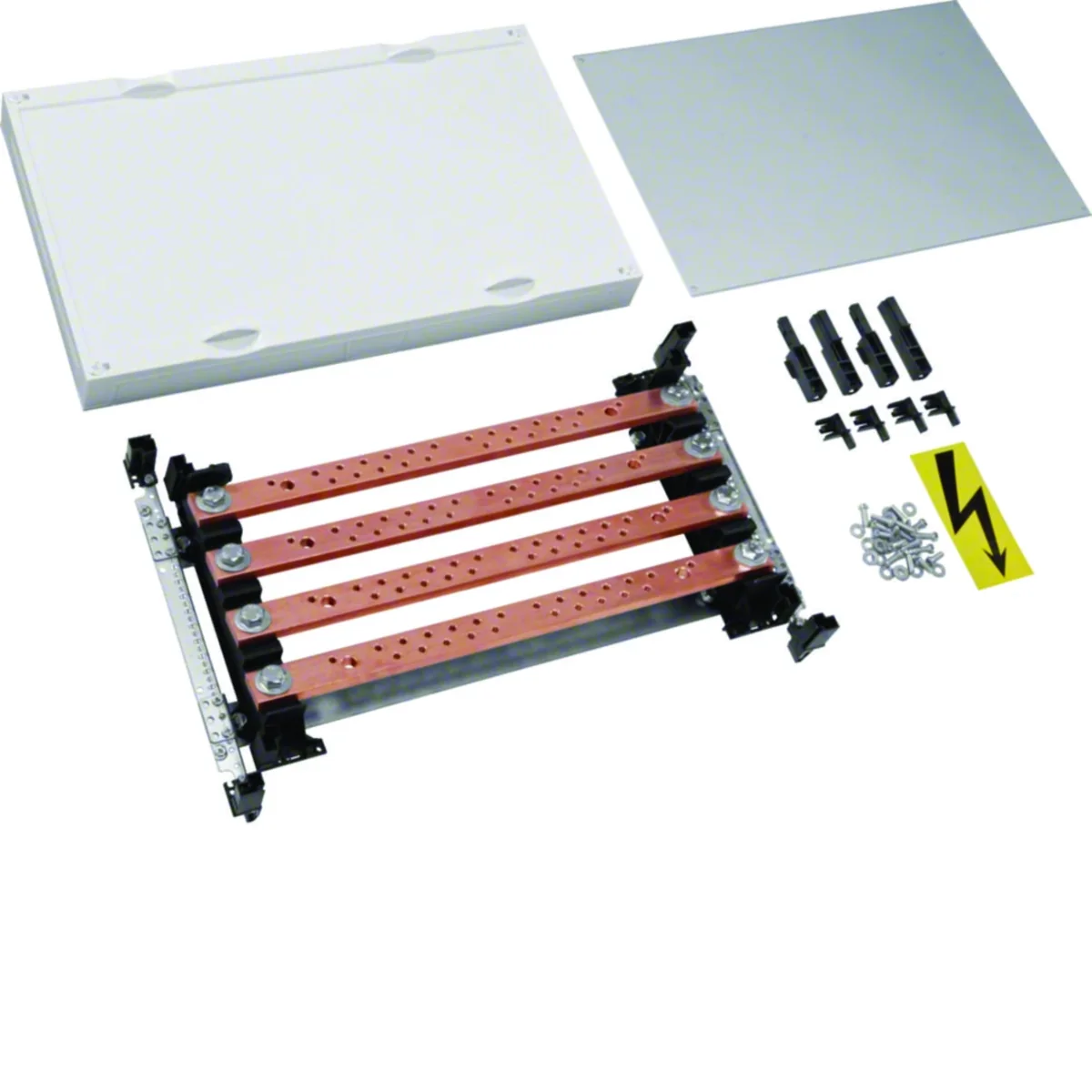

Block with horizontal busbars, with a solid cover, from the univers N series, i.e. a switchgear enclosure system.
Technical data
-
Depth [mm]110
-
Number of poles4P
-
FamilyUNIVERS N
-
Height [mm]300
-
The distance between the rails60mm
-
Busbar height [mm]5/10
-
ColorWhite
-
Fixingrail system
-
Width [mm]500
-
Number of sections1
-
Busbar width [mm]12/20/30
-
PKWIU27.12.40.0
Other technical data
-
Height300 mm
-
Depth110 mm
-
Busbar distance60 mm
-
Width500 mm
-
Number of poles4
-
Busbar height5 mm
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 20 pcs. |
| Weight (kg) | 7,600 | 7,620 | 177,400 |
| Width (m) | 0,315 | 0,310 | 0,800 |
| Length (m) | 0,100 | 0,121 | 0,750 |
| Depth (m) | 0,510 | 0,507 | 1,200 |
