UNIVERS N Block for vertical busbars 30x5/10mm 300x250 UE21D4

Índice local:
RRR1R9HAGE
Número de catálogo:
UE21D4
Código EAN:
3250616150317
Fabricante: HAGER
Depth [mm]: 125
Color: White
Number of poles: 4P
Precio:
835,17 zł
gross / uds.
(IVA incluido 23%)
Fuera de stock
Añadir a solicitud de presupuesto
Imprimir

Descripción del producto

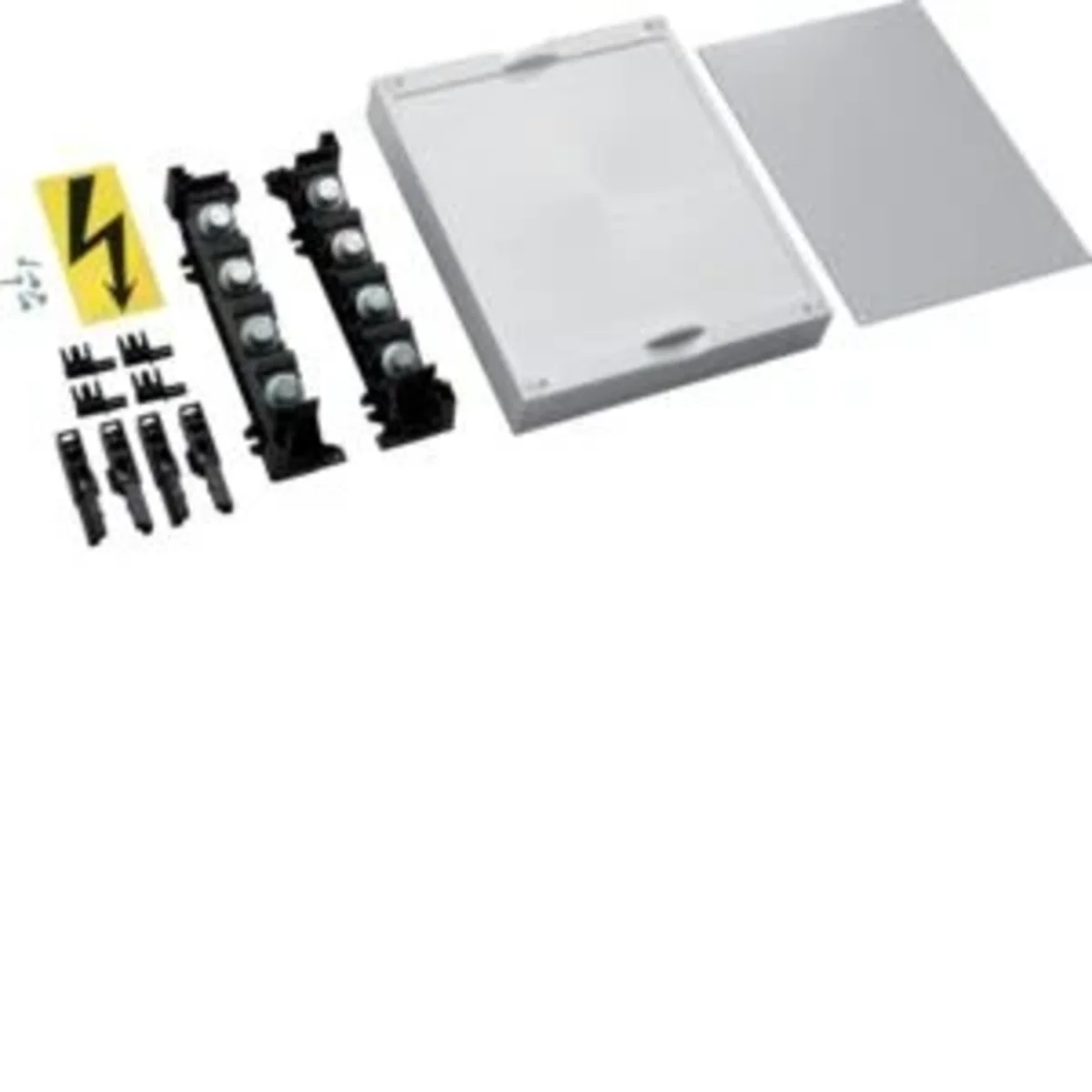

Sub-assembly/Block with a solid cover, for vertical busbars, from the univers N series, i.e. the switchgear enclosure system.

Datos técnicos

  • Depth [mm]
    125
  • Number of poles
    4P
  • Fixing
    rail system
  • Width [mm]
    250
  • Number of sections
    1
  • Busbar width [mm]
    thirty
  • PKWIU
    27.12.40.0
  • Color
    White
  • Material
    Plastic
  • Family
    UNIVERS N
  • Height [mm]
    300
  • The distance between the rails
    50mm
  • Busbar height [mm]
    5/10

Otros datos técnicos

  • Height
    300 mm
  • Depth
    125 mm
  • Number of poles
    4
  • Busbar height
    5 mm
  • Width
    250 mm
  • With cover
    Yes
  • Busbar distance
    50 mm
  • Busbar thickness
    30 mm

Detalles del fabricante

  • Fabricante
    HAGER Polska Sp. z o. o.
  • Dirección
    43-100 Tychy Fabryczna 10
  • NIF
    6460015532
