UNIVERS N Block for vertical busbars 12/20/30x5/10mm 60mm 4P D02/DII/DIII 300x250 UE21F5

Name: UNIVERS N Block for vertical busbars 12/20/30x5/10mm 60mm 4P D02/DII/DIII 300x250
Brand: HAGER
SKU: RRR1S4HAGE
Price: 127.78 PLN

local index:

RRR1S4HAGE

Catalog No:

UE21F5

EAN code:

3250616150928

UNIVERS N Block for vertical busbars 12/20/30x5/10mm 60mm 4P D02/DII/DIII 300x250

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 125

Color: White

Number of poles: 3P

See full description

Price:

127,78 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

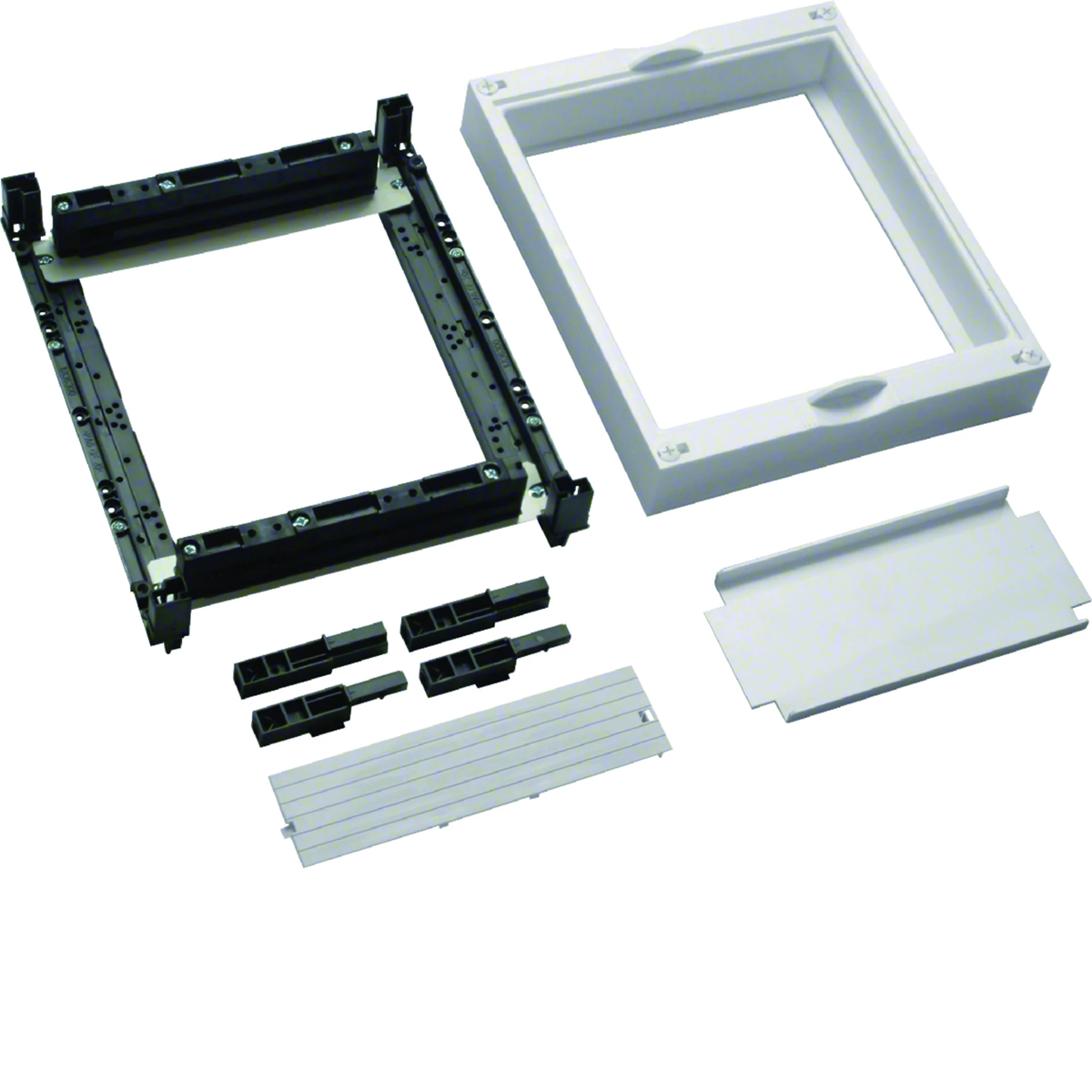

Block/subassembly with a cover, with a cut-out, with a support for vertical and D02/DII/DIII busbars, from the univers N series, i.e. switchgear mounting system.

Technical data

Depth [mm]

125
Number of poles

3P
Fixing

rail system
Width [mm]

250
Number of sections

1
Busbar width [mm]

12/20/30
PKWIU

27.12.40.0

Color

White
Material

Plastic
Family

UNIVERS N
Height [mm]

300
The distance between the rails

60mm
Busbar height [mm]

5/10

Other technical data

Height

300 mm
Depth

125 mm
Number of poles

3
Busbar height

20 mm

Width

250 mm
With cover

Yes
Busbar distance

60 mm
Busbar thickness

5 mm

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	48 pcs.
Weight (kg)	1,179	1,180	81,640
Width (m)	0,260	0,265	0,800
Length (m)	0,305	0,100	0,650
Depth (m)	0,125	0,310	1,200
