UNIVERS N block for power terminals UD21A3

local index:
RRR704HAGE
Catalog No:
UD21A3
EAN code:
3250616141063
Manufacturer: HAGER
Depth [mm]: 125
Number of rows: 1
Color: White
Price:
84,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

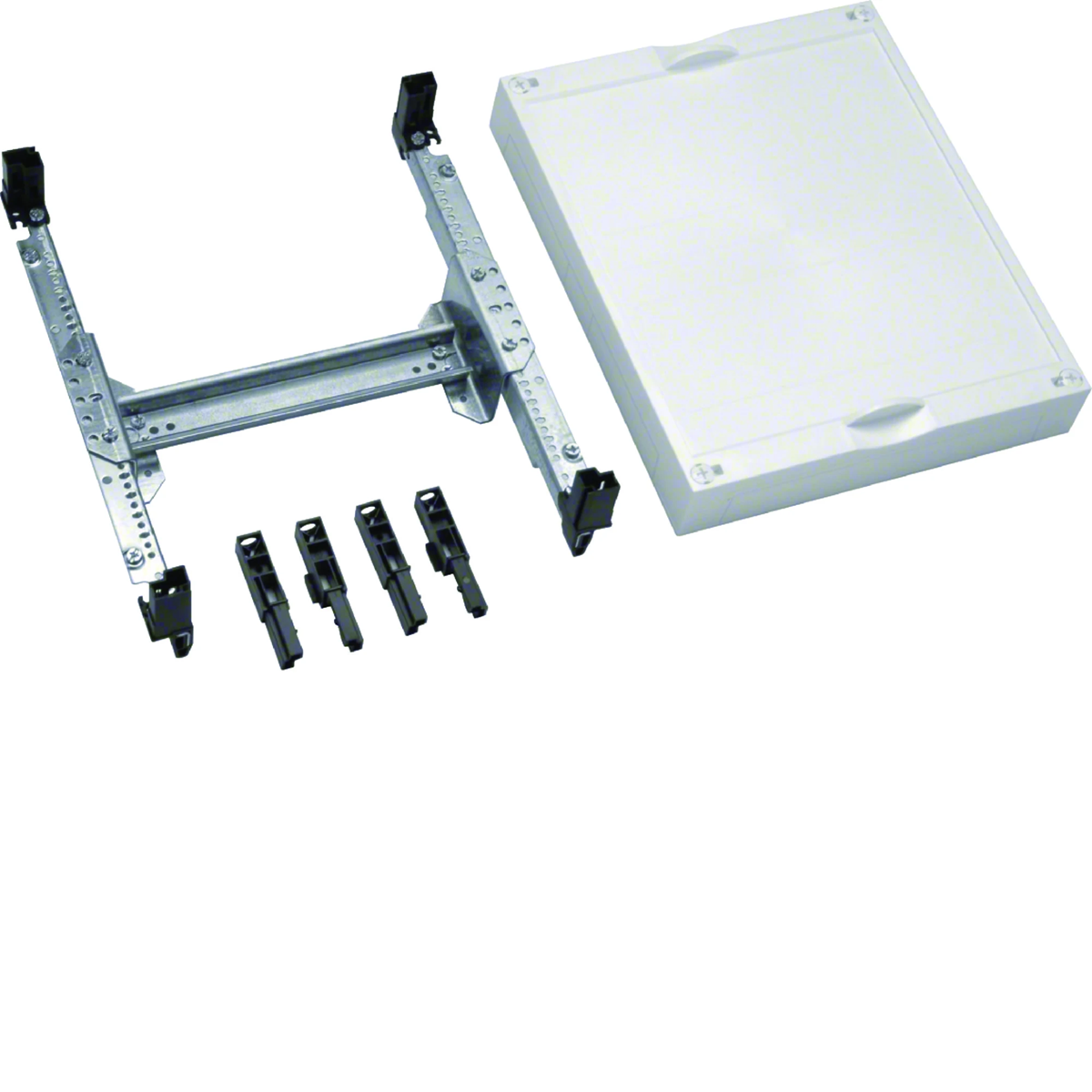

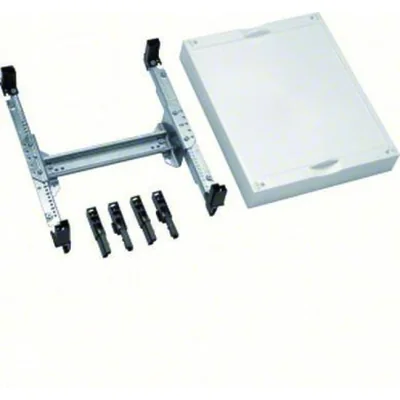

Subassembly with cover with TS35 horizontal mounting rails, for power terminals
Content:
- TS35 horizontal mounting rails,
- for 95-240 mm2 terminals
- height 300mm

Technical data

  • Depth [mm]
    125
  • Color
    White
  • Height [mm]
    300
  • PKWIU
    27.12.40.0
  • Number of rows
    1
  • Width [mm]
    250
  • Accurate color
    White

Other technical data

  • Height
    300 mm
  • Depth
    125 mm
  • Row distance
    150 mm
  • With busbar
    No
  • Width
    250 mm
  • Number of DIN-rails
    1
  • Extension possible
    Yes

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 72 pcs.
Weight (kg) 1,199 1,200 111,400
Width (m) 0,260 0,265 0,800
Length (m) 0,125 0,100 1,110
Depth (m) 0,310 0,310 1,200
