UNIVERS N Block for motorized power switches 125A/160A/250A/400A 300x500mm UK22V1

local index:
RRR1U9HAGE
Catalog No:
UK22V1
EAN code:
3250616211063
Manufacturer: HAGER
Depth [mm]: 135
Color: White
Family: UNIVERS N
Price:
111,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

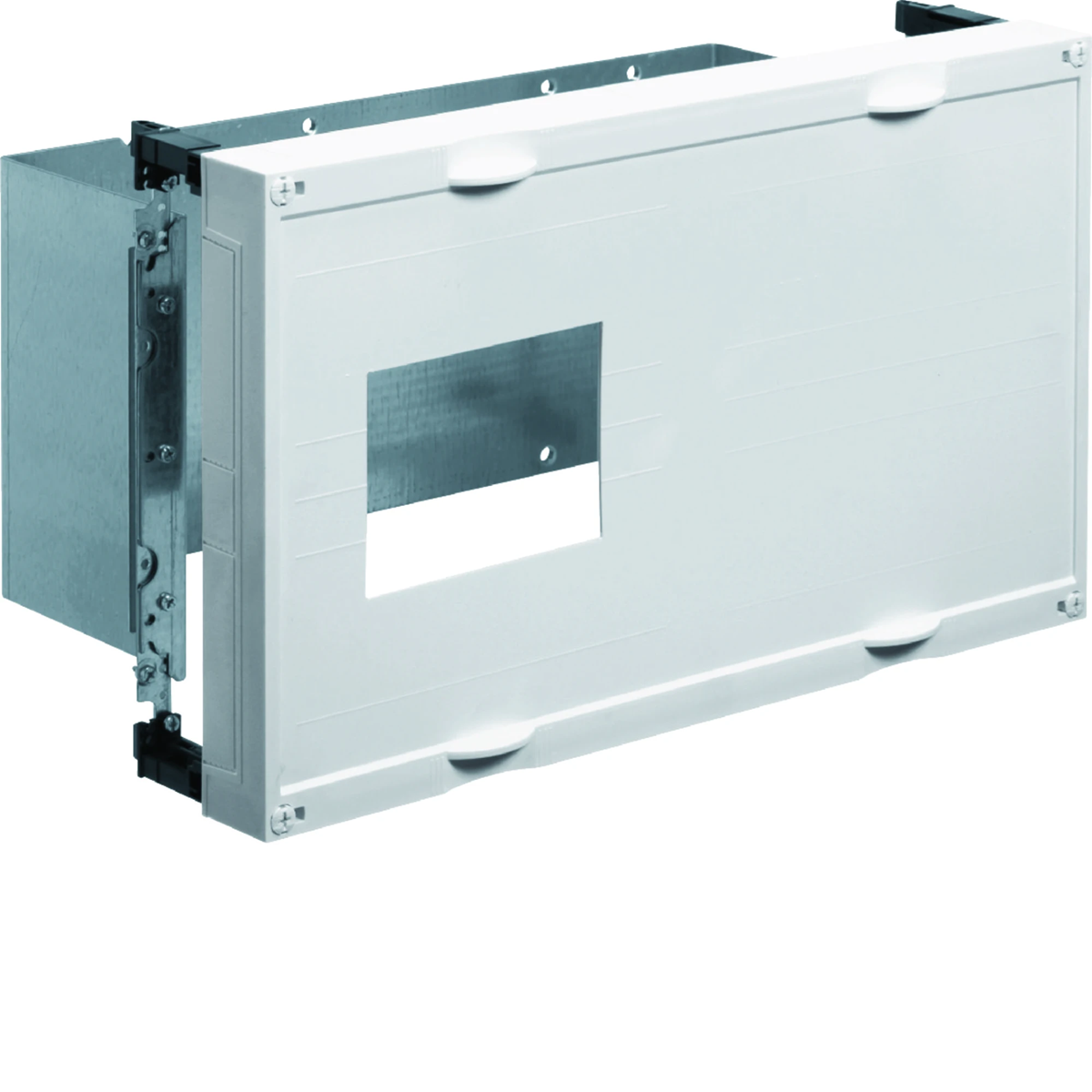

Block with a cover with a cut-out for power switches, motor drive, 125A/160A/250A/400A, from the univers N series, i.e. a switchgear enclosure system.

Technical data

  • Depth [mm]
    135
  • Family
    UNIVERS N
  • Height [mm]
    300
  • PKWIU
    27.12.40.0
  • Color
    White
  • Width [mm]
    500
  • Number of sections
    1

Other technical data

  • Height
    300 mm
  • Depth
    135 mm
  • Plastic cover plate
    Yes
  • Equipped with switch disconnector
    No
  • Equipped with power circuit-breaker
    No
  • Equipped with no-voltage switch
    No
  • Equipped with reverser
    No
  • Number of switches
    1
  • Width
    500 mm
  • With cover
    Yes
  • Suitable for switch disconnector
    No
  • Suitable for power circuit breaker
    No
  • Suitable for no-voltage switch
    Yes
  • Suitable for reverser
    Yes
  • Rated operation current
    400 A
  • With auxiliary terminal
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 20 pcs.
Weight (kg) 4,200 4,725 117,500
Width (m) 0,505 0,315 0,800
Length (m) 0,305 0,150 1,050
Depth (m) 0,220 0,510 1,200
