UNIVERS N Block for meter bays for serial installation with PE/N terminals 450x250mm UD31B4

local index:
RRR1P1HAGE
Catalog No:
UD31B4
EAN code:
3250616141278
Manufacturer: HAGER
Depth [mm]: 110
Number of rows: 3
Color: White
Price:
119,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

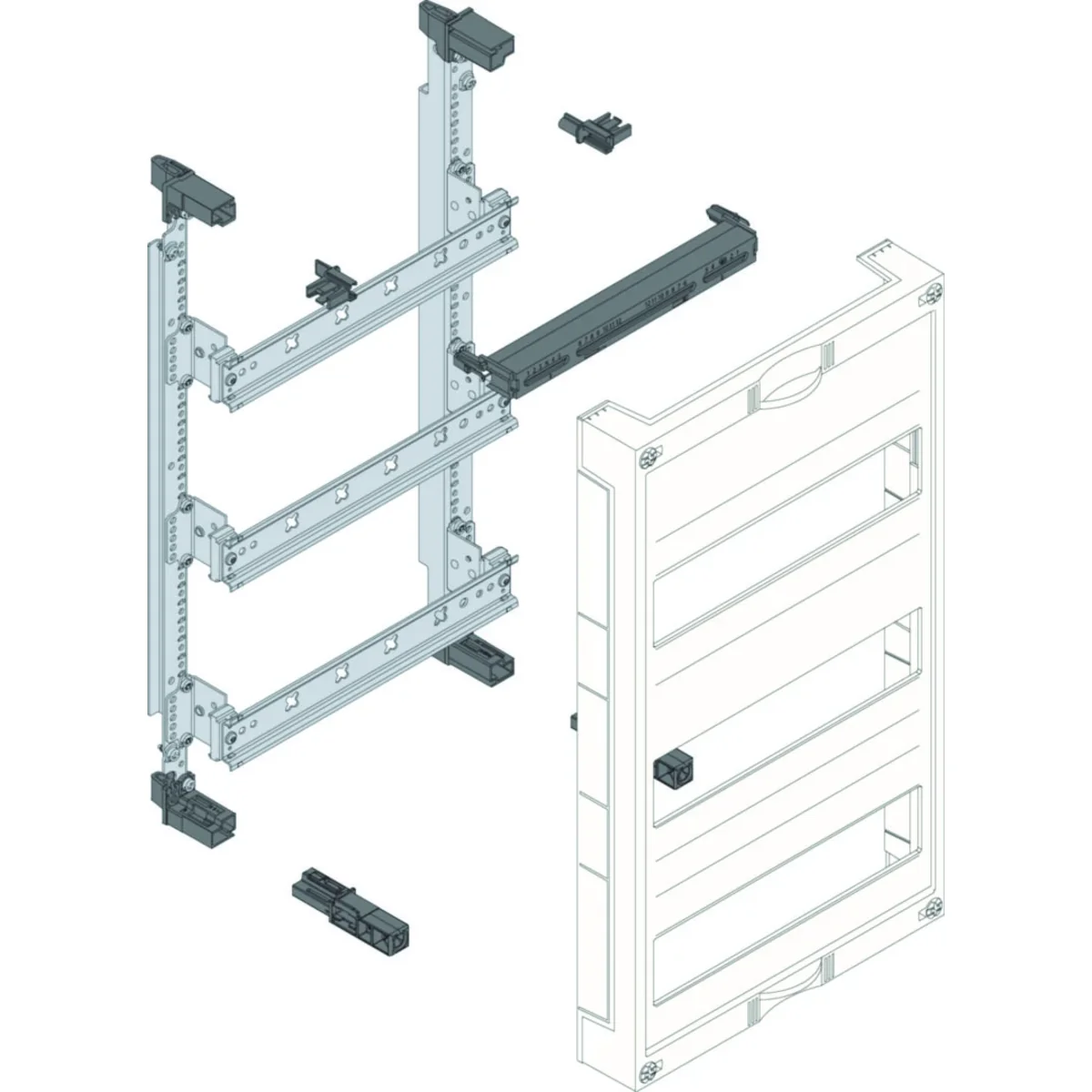

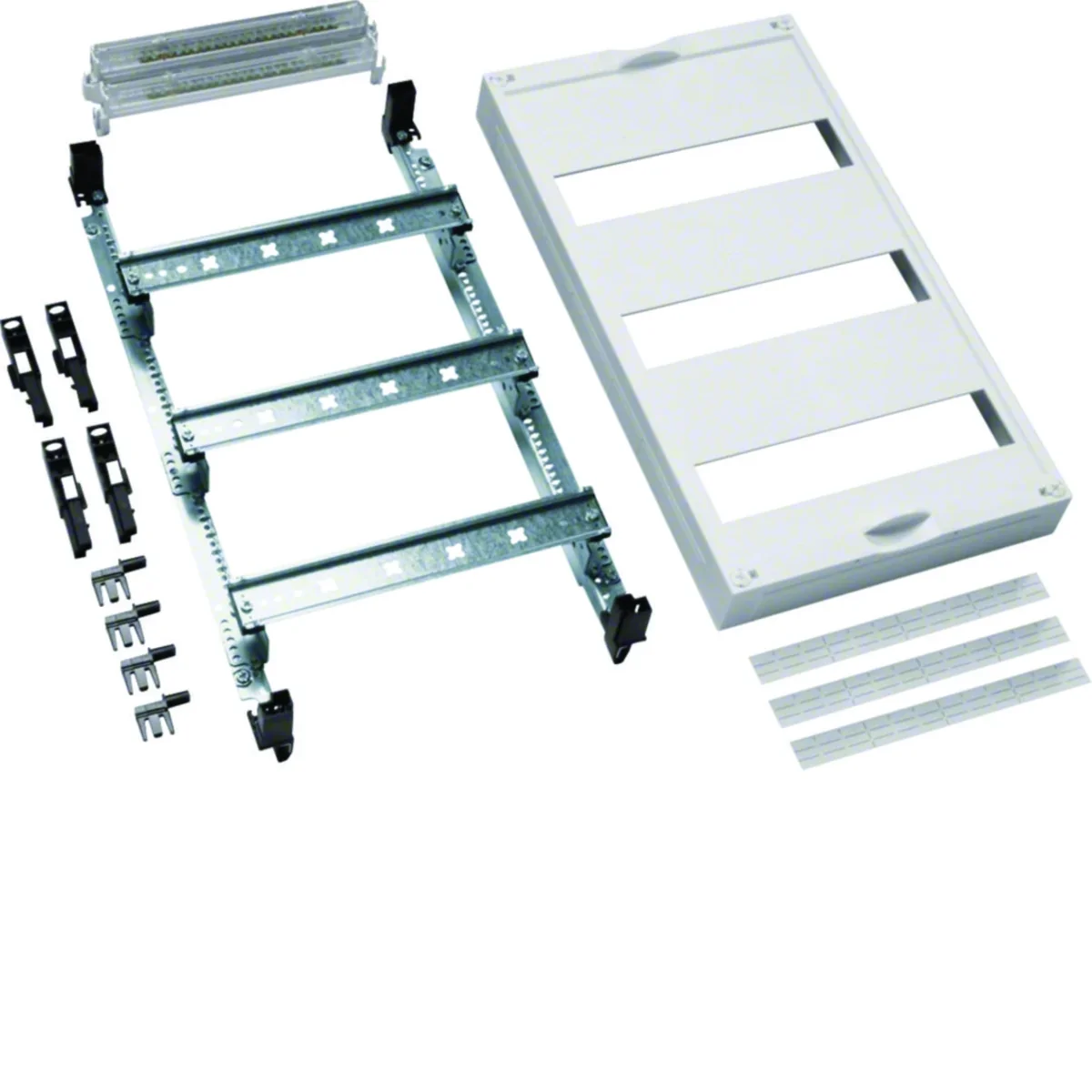

Block for meter bays with a cover with a cut-out for modular apparatus, for serial installation, horizontal mounting rails TS35, PE/N terminals, univers N series, i.e. switchgear installation.

Technical data

  • Depth [mm]
    110
  • Color
    White
  • Family
    UNIVERS N

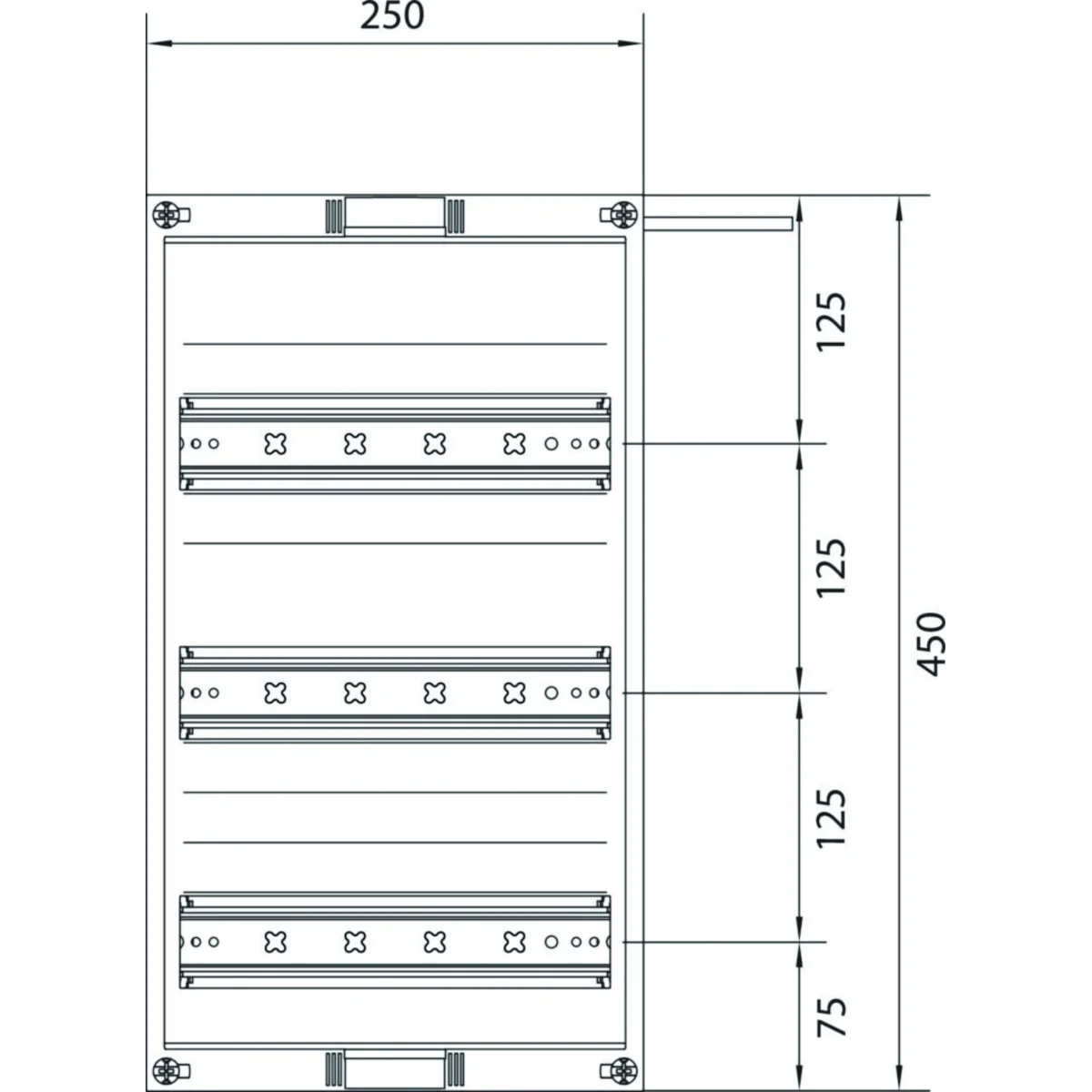

  • Height [mm]
    450
  • Number of sections
    1
  • PKWIU
    27.12.40.0
  • Number of rows
    3
  • Material
    Plastic
  • Width [mm]
    250
  • Number of modules
    36
  • Number of rows for cameras
    3

Other technical data

  • Height
    450 mm
  • Depth
    110 mm
  • Number of modular spacings per DIN-rail
    36
  • Extension possible
    Yes
  • Width
    250 mm
  • Number of DIN-rails
    3
  • Row distance
    150 mm
  • With busbar
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 72 pcs.
Weight (kg) 1,744 1,745 150,640
Width (m) 0,460 0,460 0,800
Length (m) 0,095 0,095 1,100
Depth (m) 0,260 0,260 1,200
