UNIVERS N Block for horizontally mounted modular devices 3x10PLE 450x250mm UD31B3

local index:
RRR1P0HAGE
Catalog No:
UD31B3
EAN code:
3250616141261
Manufacturer: HAGER
Depth [mm]: 110
Number of rows: 3
Color: White
Price:
105,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

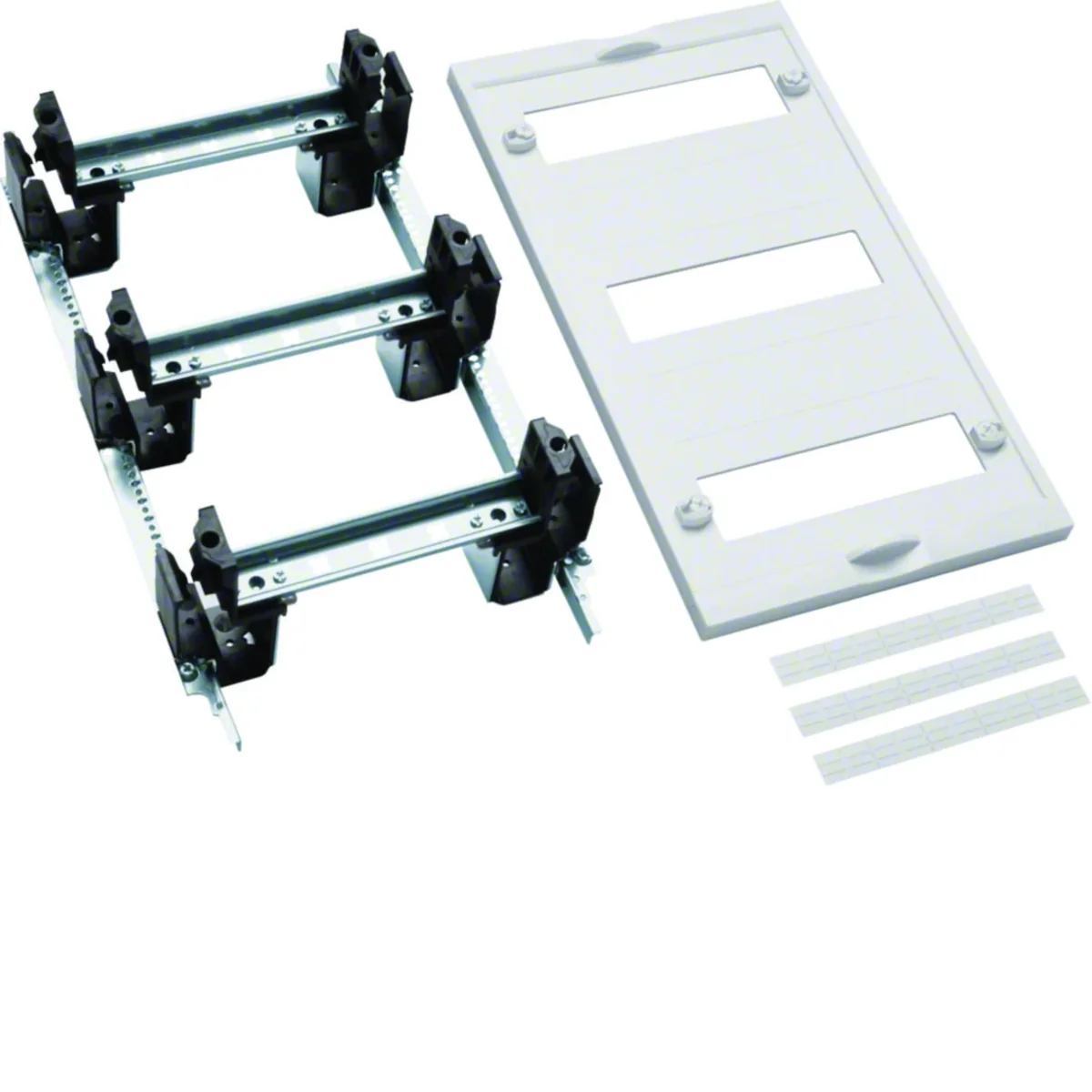

Block with a cover with a cut-out for modular apparatus, TS35 horizontal mounting rails, increased space for cables, 3x10M, from the univers N series, i.e. the switchgear building system.

Technical data

  • Depth [mm]
    110
  • Color
    White
  • Family
    UNIVERS N
  • Height [mm]
    450
  • Number of sections
    1
  • PKWIU
    27.12.40.0
  • Number of rows
    3
  • Material
    Plastic
  • Width [mm]
    250
  • Number of modules
    36
  • Number of rows for cameras
    3

Other technical data

  • Height
    450 mm
  • Depth
    110 mm
  • Number of modular spacings per DIN-rail
    30
  • Extension possible
    Yes
  • Width
    250 mm
  • Number of DIN-rails
    3
  • Row distance
    150 mm
  • With busbar
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 38 pcs.
Weight (kg) 2,359 2,360 114,680
Width (m) 0,250 0,260 0,800
Length (m) 0,140 0,100 1,165
Depth (m) 0,440 0,455 1,200
