UNIVERS N block for horizontally mounted modular devices 2x24PLE 150x500mm UD12B3

local index:
RRR004HAGE
Catalog No:
UD12B3
EAN code:
3250616141131
Manufacturer: HAGER
Depth [mm]: 125
Number of modules: 24
Number of rows: 1
Price:
92,48 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

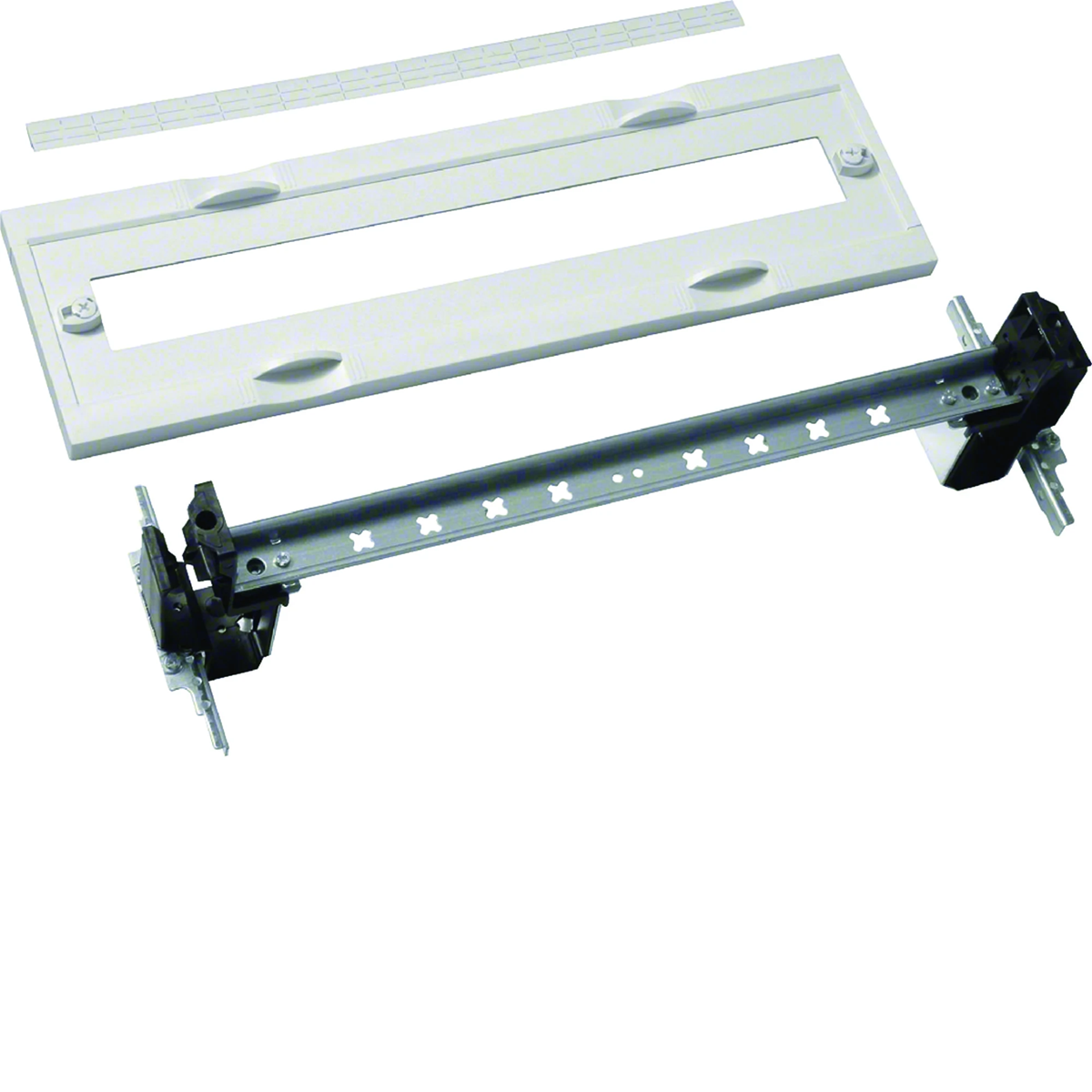

Sub-assembly with cover with cut-out, with TS35 horizontal mounting rails, for modular devices
Content:
- TS35 horizontal mounting rails, 150 mm spacing
- TS35 mounting rail level: high
- with vertical enlarged cable routing - height 150 mm

Technical data

  • Depth [mm]
    125
  • Number of rows
    1
  • Width [mm]
    500
  • Number of modules
    24
  • PKWIU
    27.12.40.0
  • Number of modules
    24
  • Color
    White
  • Height [mm]
    150
  • Accurate color
    White

Other technical data

  • Height
    150 mm
  • Depth
    125 mm
  • Number of modular spacings per DIN-rail
    24
  • Extension possible
    Yes
  • Width
    500 mm
  • Number of DIN-rails
    1
  • Row distance
    150 mm
  • With busbar
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 56 pcs.
Weight (kg) 1,126 1,200 92,200
Width (m) 0,145 0,162 0,800
Length (m) 0,135 0,110 1,200
Depth (m) 0,500 0,506 1,200
