UNIVERS N block for horizontally mounted modular devices 2x12PLE 150x500mm UD12B1

local index:
RRR111HAGE
Catalog No:
UD12B1
EAN code:
3250616141124
Manufacturer: HAGER
Depth [mm]: 125
Color: White
Width [mm]: 500
Price:
64,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

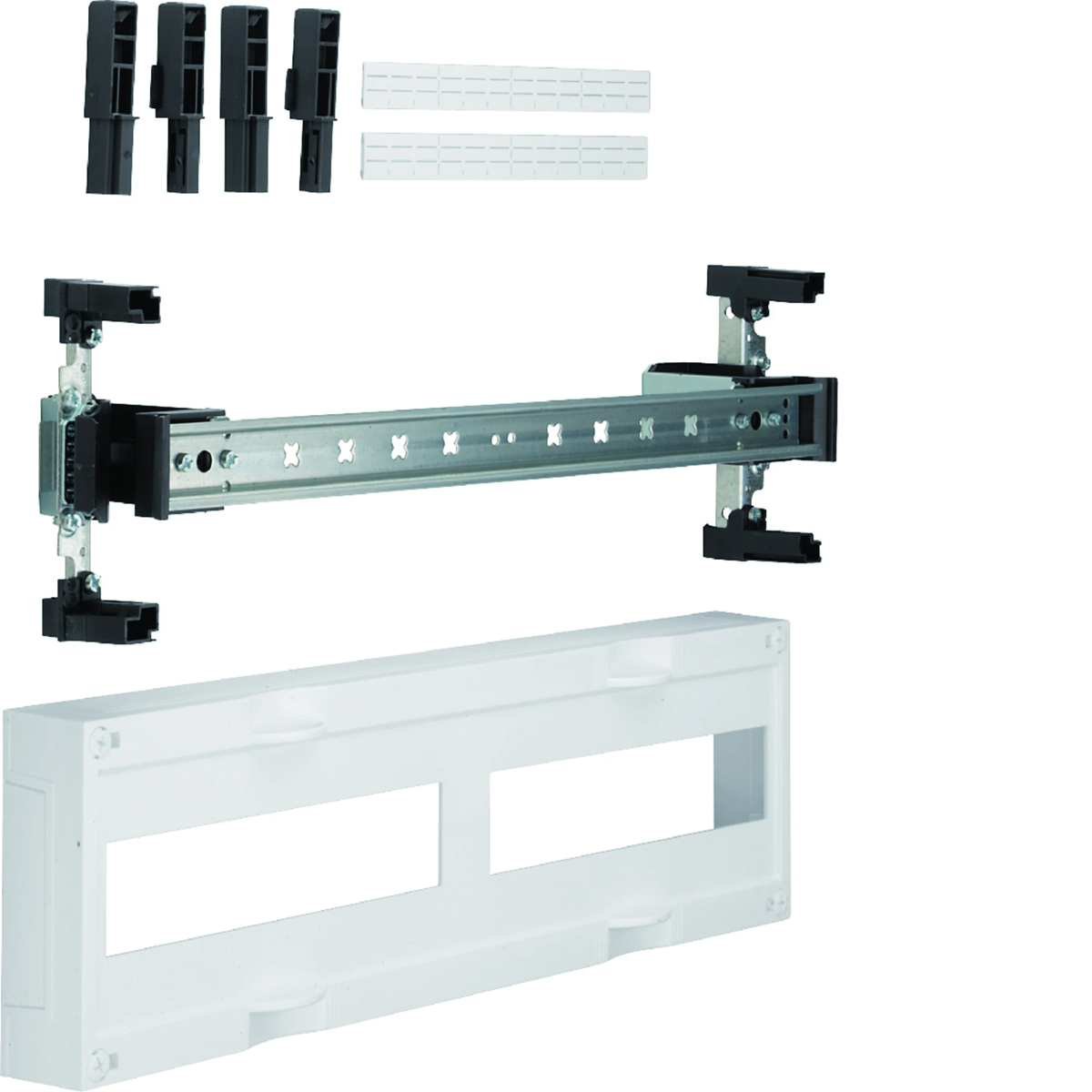

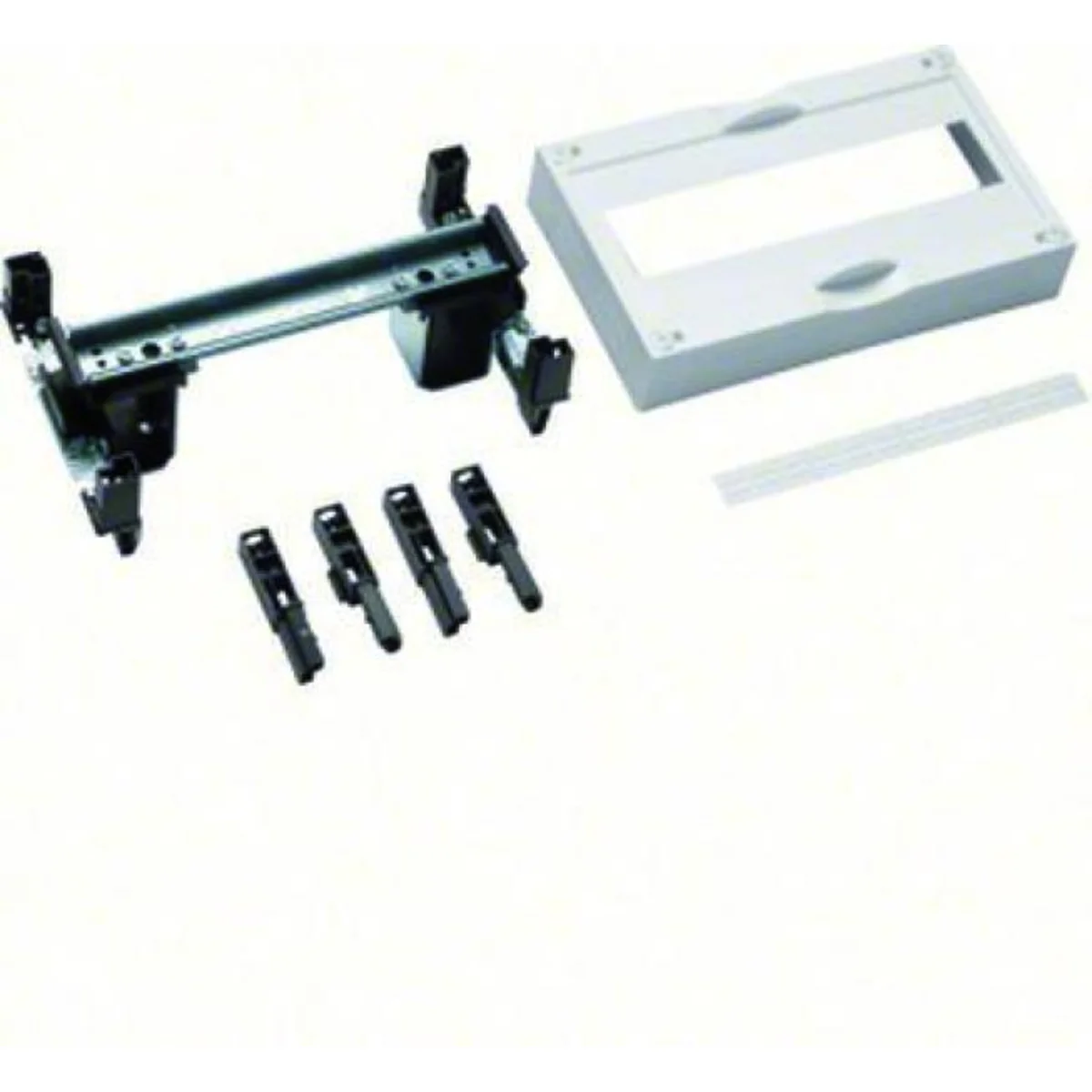

Sub-assembly with cover with cut-out, with TS35 horizontal mounting rails, for modular apparatus
Content:
- TS35 horizontal mounting rails
- TS35 mounting rail level: high
- with vertical guidance wires
- height 150 mm

Technical data

  • Depth [mm]
    125
  • Width [mm]
    500
  • Accurate color
    White
  • Color
    White
  • Height [mm]
    150
  • PKWIU
    27.12.40.0

Other technical data

  • Height
    150 mm
  • Depth
    125 mm
  • Number of modular spacings per DIN-rail
    24
  • Extension possible
    Yes
  • Width
    500 mm
  • Number of DIN-rails
    2
  • Row distance
    150 mm
  • With busbar
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 56 pcs.
Weight (kg) 1,086 1,260 95,560
Width (m) 0,510 0,164 0,800
Length (m) 0,160 0,096 0,920
Depth (m) 0,110 0,510 1,200
