UNIVERS N block for horizontally mounted modular devices 1x12PLE 150x250mm UD11B1

Name: UNIVERS N block for horizontally mounted modular devices 1x12PLE 150x250mm
Brand: HAGER
SKU: RRR048HAGE
Price: 47.42 PLN

local index:

RRR048HAGE

Catalog No:

UD11B1

EAN code:

3250616141087

UNIVERS N block for horizontally mounted modular devices 1x12PLE 150x250mm

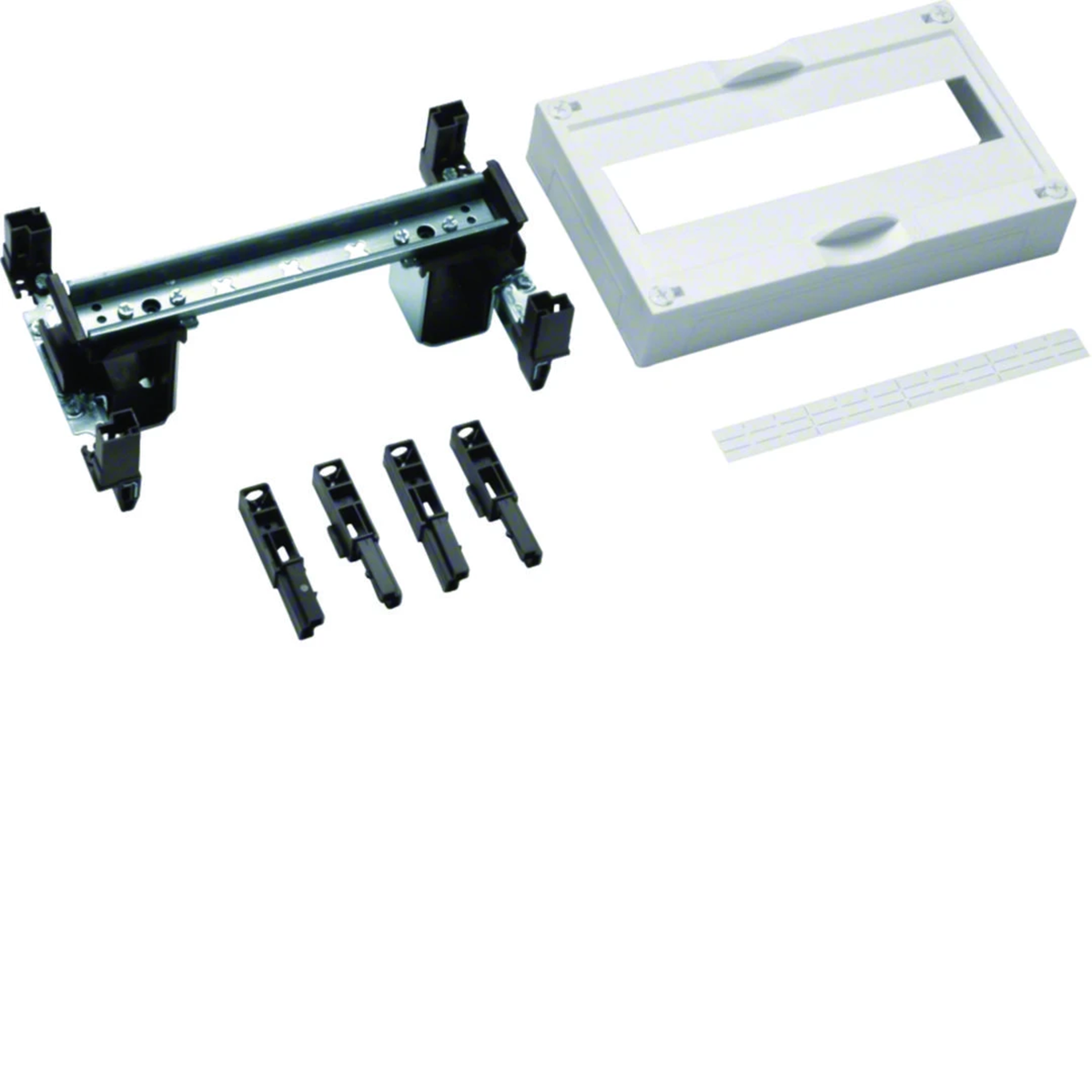

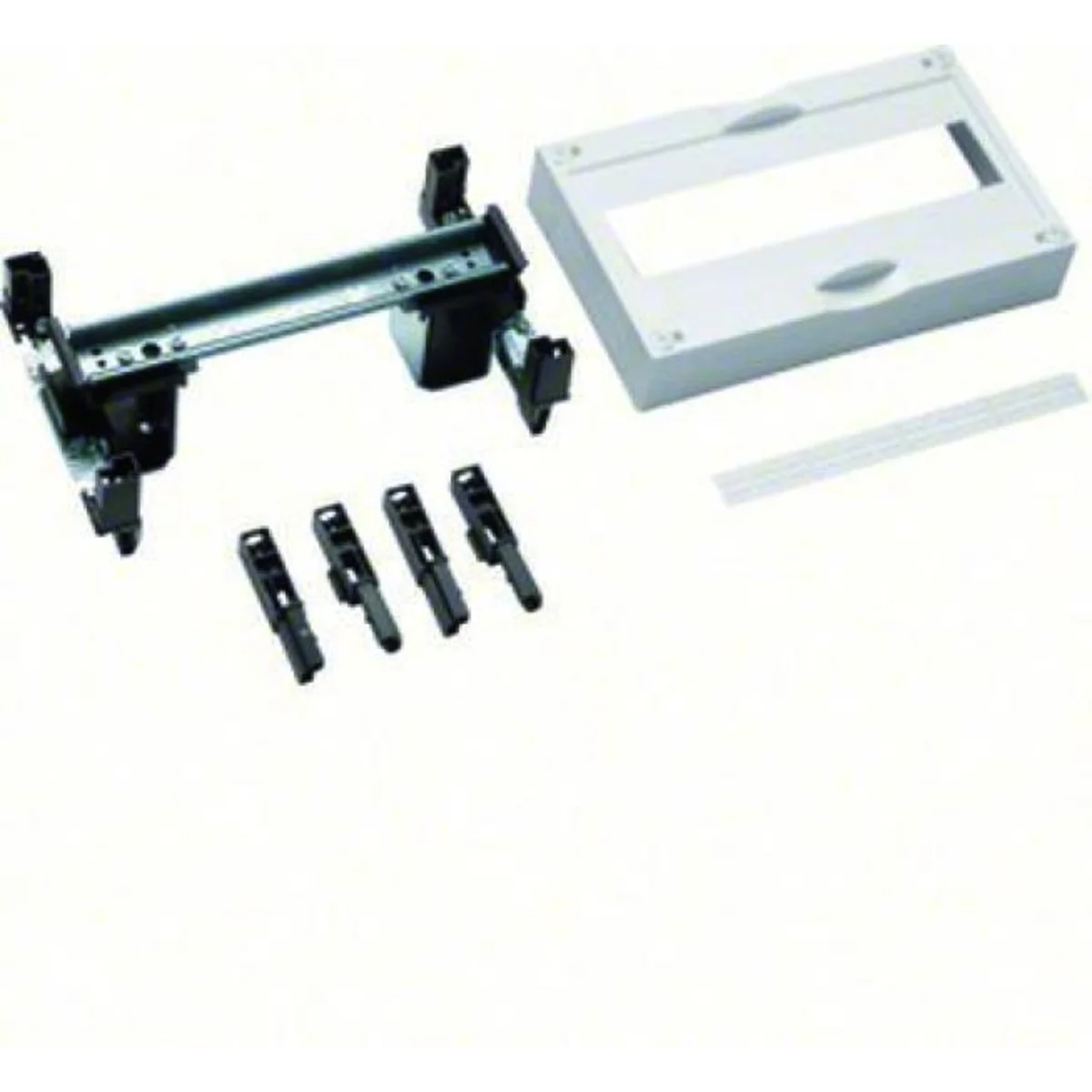

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 125

Number of rows: 1

Color: White

See full description

Price:

47,42 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Sub-assembly with cover with cut-out, with TS35 horizontal mounting rails, for modular devices
Content:
- TS35 horizontal mounting rails
- TS35 mounting rail level: high
- with vertical guidance wires
- height 150 mm

Technical data

Depth [mm]

125
Color

White
Height [mm]

150
PKWIU

27.12.40.0

Number of rows

1
Width [mm]

250
Accurate color

White

Other technical data

Height

150 mm
Depth

125 mm
Number of modular spacings per DIN-rail

12
Extension possible

Yes

Width

250 mm
Number of DIN-rails

1
Row distance

150 mm
With busbar

No

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	189 pcs.
Weight (kg)	0,764	0,860	187,540
Width (m)	0,165	0,165	0,800
Length (m)	0,110	0,110	1,140
Depth (m)	0,260	0,260	1,200
