UNIVERS N block for horizontal row building 3x12PLE UD13B1

local index:
RRR188HAGE
Catalog No:
UD13B1
EAN code:
3250616141155
Manufacturer: HAGER
Depth [mm]: 125
Number of modules: 36
Number of rows: 1
Price:
139,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

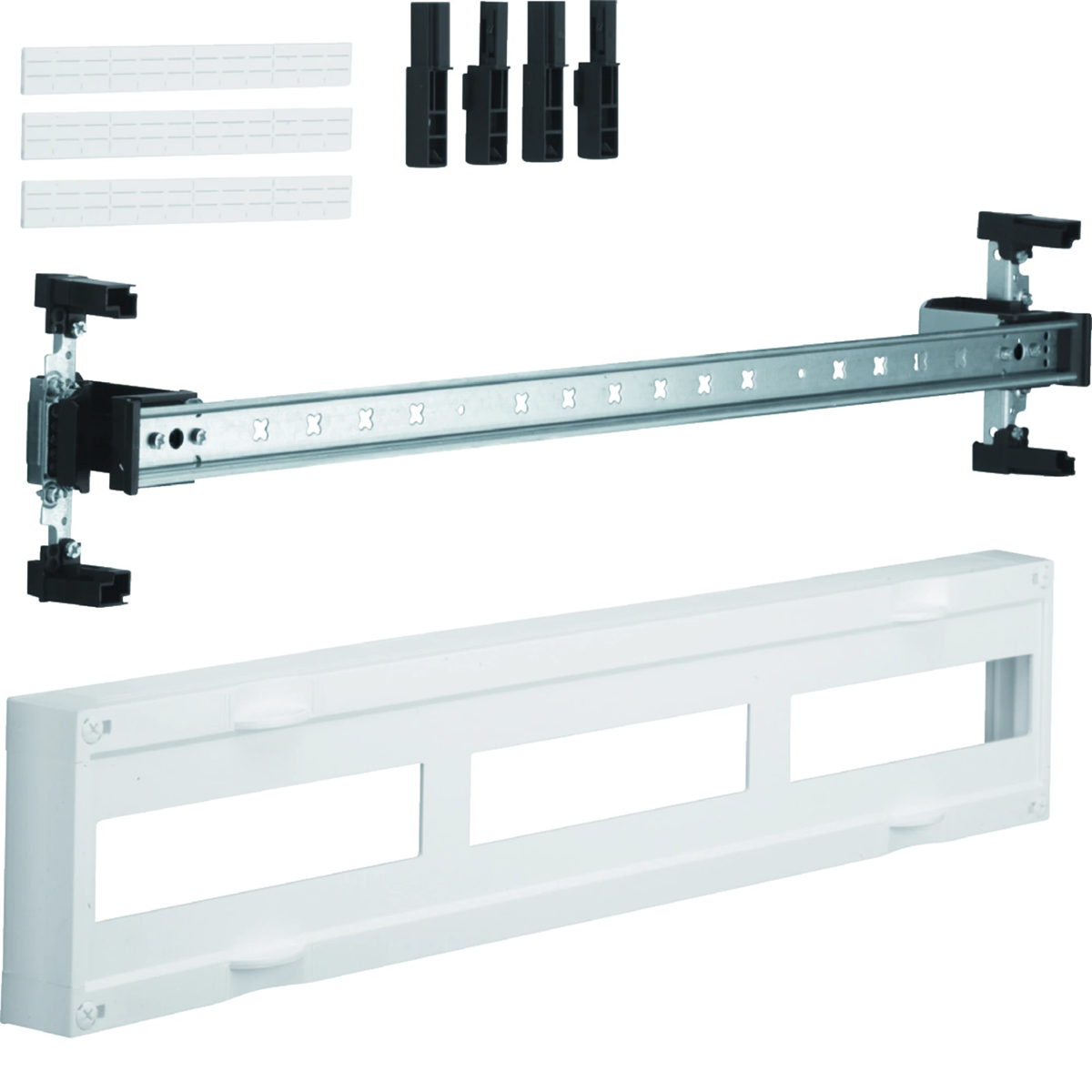

A subassembly with a cover with a cut-out, with TS35 horizontal mounting rails, for modular apparatus
Content:
- TS35 horizontal mounting rails
- TS35 rail level: high
- with vertical cable routing - height 150 mm

Technical data

  • Depth [mm]
    125
  • Number of rows
    1
  • Width [mm]
    750
  • Number of modules
    36
  • PKWIU
    27.12.40.0
  • Number of modules
    36
  • Color
    White
  • Height [mm]
    150
  • Accurate color
    White

Other technical data

  • Height
    150 mm
  • Depth
    125 mm
  • Number of modular spacings per DIN-rail
    36
  • Extension possible
    Yes
  • Width
    750 mm
  • Number of DIN-rails
    3
  • Row distance
    150 mm
  • With busbar
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 56 pcs.
Weight (kg) 1,540 1,550 111,800
Width (m) 0,760 0,760 0,800
Length (m) 0,113 0,113 1,075
Depth (m) 0,163 0,163 1,200
