UNIVERS N Block for horizontal busbars 60mm NH00/NH1/NH2 with transparent glass 450x250mm UE31E9

Name: UNIVERS N Block for horizontal busbars 60mm NH00/NH1/NH2 with transparent glass 450x250mm
Brand: HAGER
SKU: RRR1T2HAGE
Price: 228.74 PLN

local index:

RRR1T2HAGE

Catalog No:

UE31E9

EAN code:

3250616151321

UNIVERS N Block for horizontal busbars 60mm NH00/NH1/NH2 with transparent glass 450x250mm

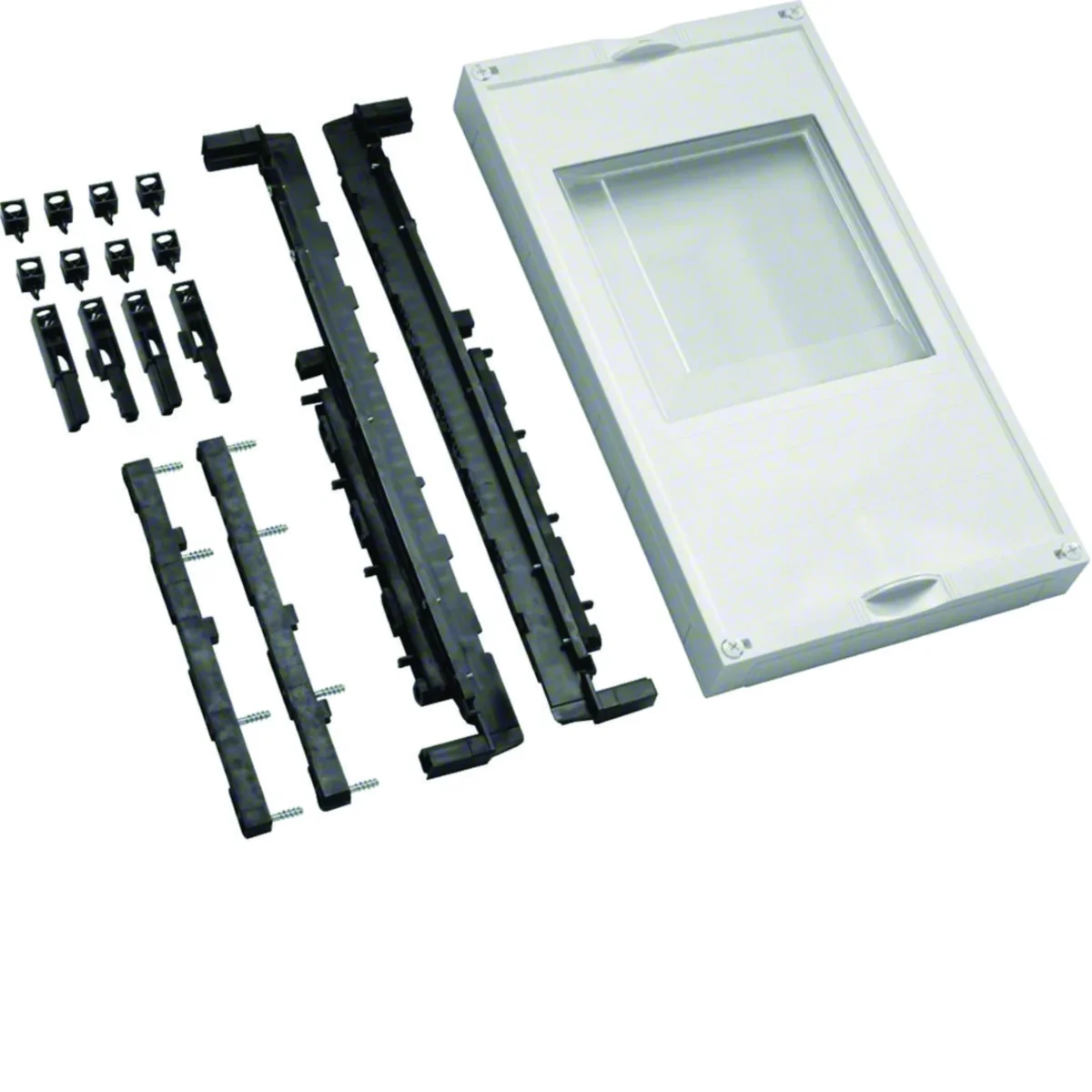

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 125

Color: White

Material: Plastic

See full description

Price:

228,74 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Block/subassembly with a cover, with transparent glass, with a bracket for horizontal and NH00/NH1/NH2 busbars, from the univers N series, i.e. the switchgear enclosure system.

Technical data

Depth [mm]

125
Material

Plastic
Family

UNIVERS N
Height [mm]

450
The distance between the rails

60mm
Busbar height [mm]

5/10

Color

White
Fixing

screwed
Width [mm]

250
Number of sections

1
Busbar width [mm]

12/20/30
PKWIU

27.12.40.0

Other technical data

Height

450 mm
Depth

125 mm
Plastic cover plate

Yes
Suitable for switch disconnector

No
Suitable for power circuit breaker

No
Suitable for no-voltage switch

No
Suitable for reverser

No
Rated operation current

630 A
With auxiliary terminal

No

Width

250 mm
With cover

Yes
Number of poles

4
Equipped with switch disconnector

No
Equipped with power circuit-breaker

No
Equipped with no-voltage switch

No
Equipped with reverser

No
Number of switches

1

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	60 pcs.
Weight (kg)	1,197	1,300	103,000
Width (m)	0,254	0,265	0,800
Length (m)	0,450	0,072	0,780
Depth (m)	0,060	0,460	1,200
