UNIVERS N Block for horizontal busbars 60mm 4-pole 450x500mm UE32E0A

local index:
RRR1T5HAGE
Catalog No:
UE32E0A
EAN code:
3250616151093
Manufacturer: HAGER
Depth [mm]: 110
Color: White
Number of poles: 4P
Price:
187,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

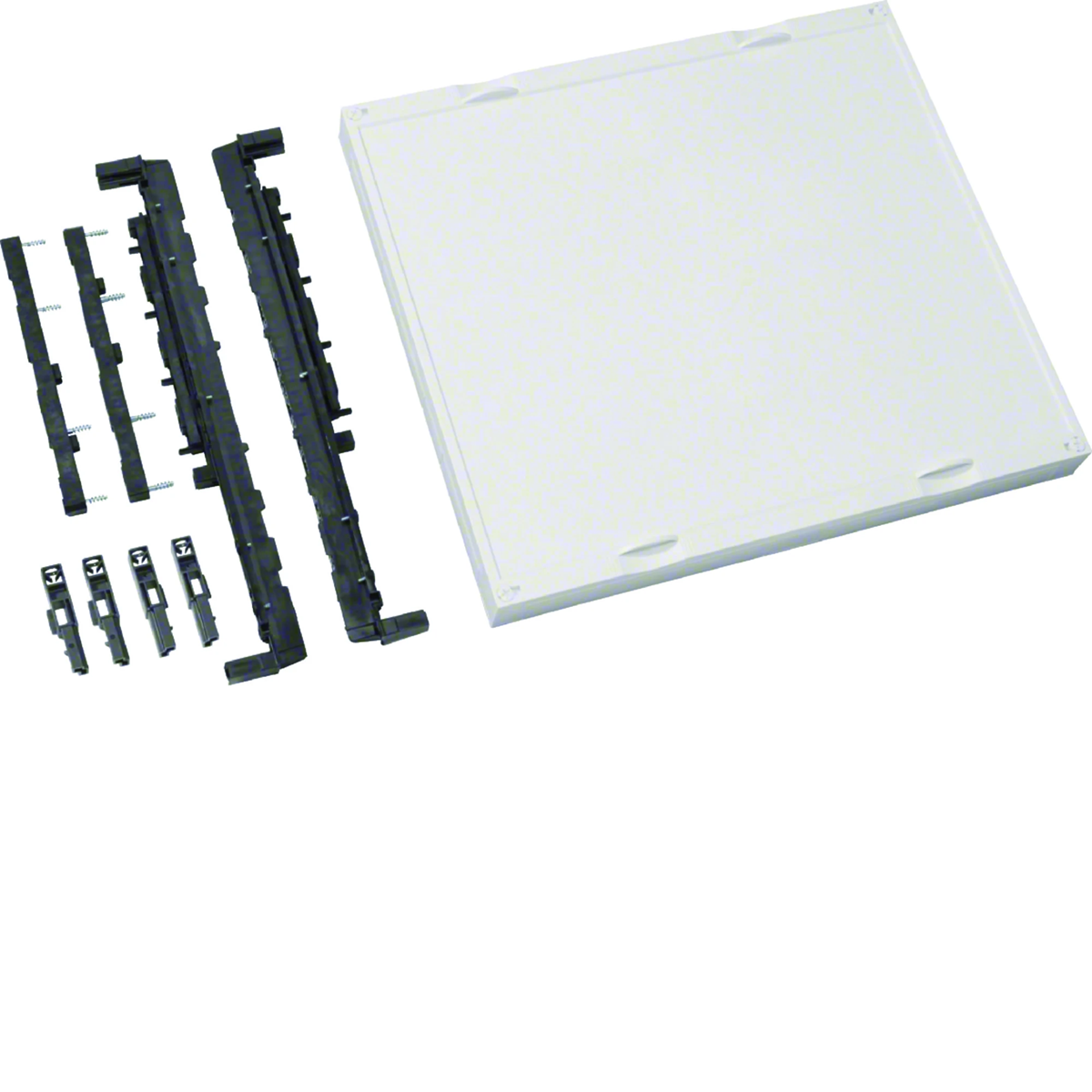

Block/subassembly with a full cover, with a bracket for horizontal busbars, from the univers N series, i.e. a switchgear building system.

Technical data

  • Depth [mm]
    110
  • Number of poles
    4P
  • Fixing
    rail system
  • Width [mm]
    500
  • Number of sections
    2
  • Busbar width [mm]
    12/20/30
  • PKWIU
    27.12.40.0
  • Color
    White
  • Material
    Plastic
  • Family
    UNIVERS N
  • Height [mm]
    450
  • The distance between the rails
    60mm
  • Busbar height [mm]
    5/10

Other technical data

  • Height
    450 mm
  • Depth
    110 mm
  • Number of poles
    4
  • Busbar height
    20 mm
  • Width
    500 mm
  • With cover
    Yes
  • Busbar distance
    60 mm
  • Busbar thickness
    5 mm

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 28 pcs.
Weight (kg) 1,768 1,769 74,532
Width (m) 0,505 0,505 0,800
Length (m) 0,070 0,070 1,150
Depth (m) 0,480 0,480 1,200
